| Product Type | Managed Ethernet Switch |
| Model Name | M4250-12M2XF |
| Manufacturer Part Number | MSM4214X-TAANAS |
| Processor | ARM Cortex A9 |
| System Memory | 2 GB DDR3 SDRAM |
| Flash Memory | 256 MB |
| Switching Capacity | 120 Gbps |
| Form Factor | Rack-mountable |
| Rack Units | 1U |
| Weight | 3.62 lbs (1.64 kg) |
| Power Supply | Internal |
| Maximum Power Consumption | 40.6 W |
| Redundant Power Supply Support | Yes (with external RPS) |

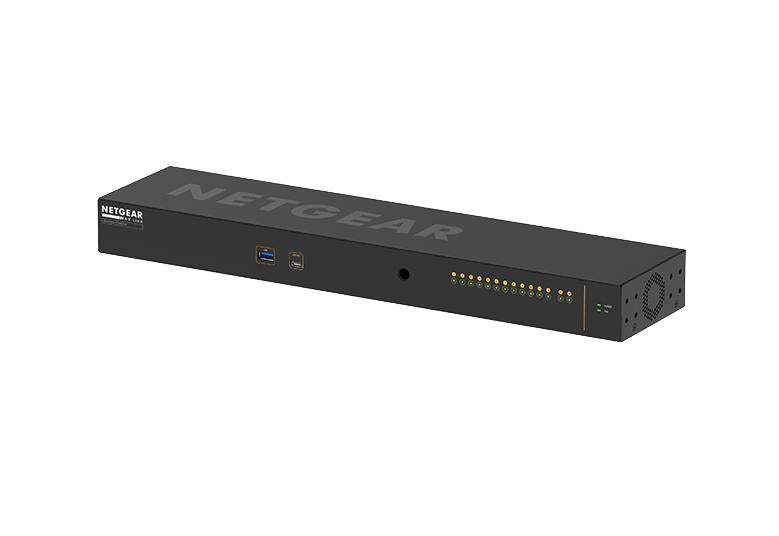

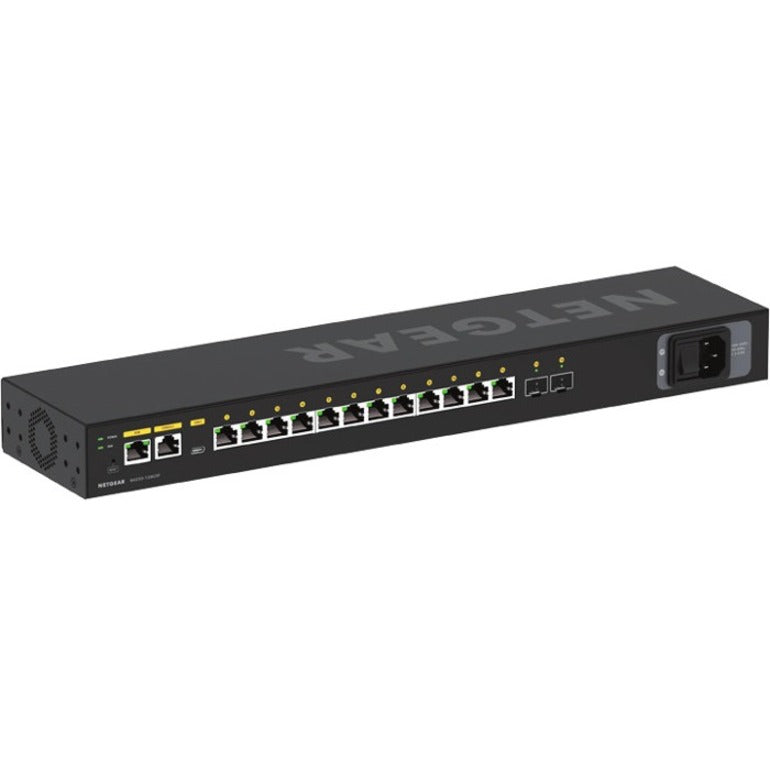

NETGEAR M4250-12M2XF Managed Switch, 12-Port RJ45 + 2 SFP+
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,273.00
Regular price
Sale price
$1,273.00
Unit price
per
MSRP: $1,840.71
Shipping calculated at checkout.
Couldn't load pickup availability
- 12-port 100/1000/2.5GBASE-T (RJ45) for multi-gigabit device connectivity
- 2-port 1000/10GBASE-X (SFP+) for high-speed uplinks to core networks
- Requires ARM Cortex A9 processor with 2GB RAM for efficient management
- USB-C and RJ45 RS232 console ports for deployment and troubleshooting
- USB-A storage port for backup and logging purposes
- TAA compliant and manufactured in Taiwan for enterprise/government use
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Multi-gigabit and 10G SFP+ port combination supports both legacy and future-ready networking infrastructure
- TAA compliance makes it suitable for federal and government purchasing requirements
- Lifetime hardware warranty enhances ROI and lowers total cost of ownership
Product Overview
M4250-12M2XF MANAGED SWITCH- ARM Cortex A9 - 2GB, 12-port 100/1000/2.5GBASE-T (RJ45); 2-port 1000/10GBASE-X (SFP+); USB-C and RJ45 RS232 console ports and USB-A storage port, Limited Lifetime Hardware WarrantySpecifications
Product Overview
Physical & Environmental
| Dimensions (W x D x H) | 440 x 200 x 43.2 mm (17.32 x 7.87 x 1.7 in) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Acoustic Noise Level | 32 dBA (at 25°C) |
| Cooling | Passive or active depending on model; fan-based design |
Cloud Management & Licensing
| Cloud Management Platform | NETGEAR Insight Compatible |
| Management Interface | Web GUI, Command Line Interface (CLI), SNMP, NETGEAR Engage Controller |
| Licensing Requirements | None required for base functionality |
| Zero-Touch Deployment | Yes via NETGEAR Insight |
| Out-of-Band Management | Yes via USB-C or Console Port |
Interfaces
| Total Number of Ports | 14 |
| 10/100/1000/2500 Mbps RJ45 Ports | 12 |
| 10G SFP+ Ports | 2 |
| Console Ports | 1 x USB-C, 1 x RJ45 Serial |
| USB Ports | 1 x USB-A (storage expansion) |
| Network Technology | 100/1000/2500Base-T, 1000/10GBase-X |
| Auto-MDI/MDIX | Yes |
| Full-Duplex Support | Yes |
| MAC Address Table Size | 32K entries |
| Packet Buffer Memory | 16 MB |
| Jumbo Frame Support | Up to 12 KB |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | CE, FCC Class A, UL, VCCI, CB |
| RoHS Compliant | Yes |
| Energy Efficient Ethernet (EEE) | IEEE 802.3az |
| Warranty | Limited Lifetime Hardware Warranty |
Advanced Security Features
| Access Control Lists (ACLs) | Layer 2 / Layer 3 / Layer 4 |
| 802.1X Authentication | Yes |
| MAC-based Authentication | Yes |
| Storm Control | Yes |
| DHCP Snooping | Yes |
| DoS Protection | Yes |
| Port Security | Yes |
