| Product Type | Managed Layer 3 Stackable Switch |
| Form Factor | 1U Rack-mountable (front-to-back airflow) |
| Processor | Quad-core A57 1.8 GHz |
| RAM | 4 GB |
| Flash Memory | 512 MB |
| Weight | 12.92 lbs |
| Power Device | Internal power supply |
| Installed Power Supply Units | 1 |
| Maximum Supported Power Supply Units | 2 |
| Power Consumption (Operational) | 413 Watt |
| Power Consumption (Standby) | 98.8 Watt |
| Power Provided | 750 Watt |
| PoE Type | PoE++ (IEEE 802.3bt) |
| Total PoE Power Budget | 1676 W |
| Packet Buffer Size | 256 MB |

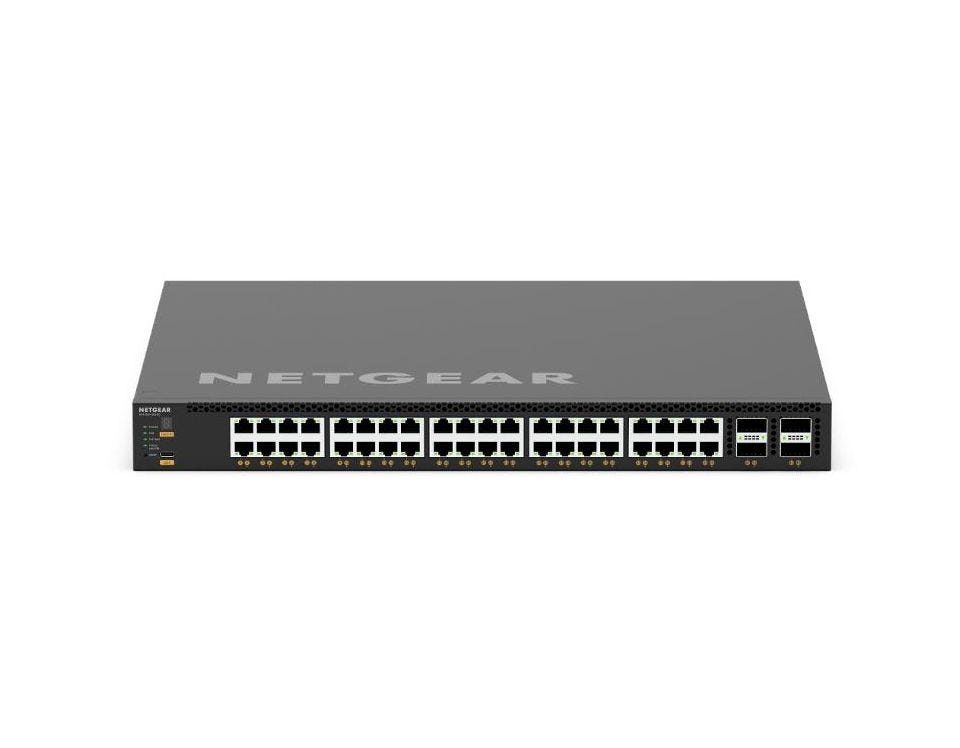

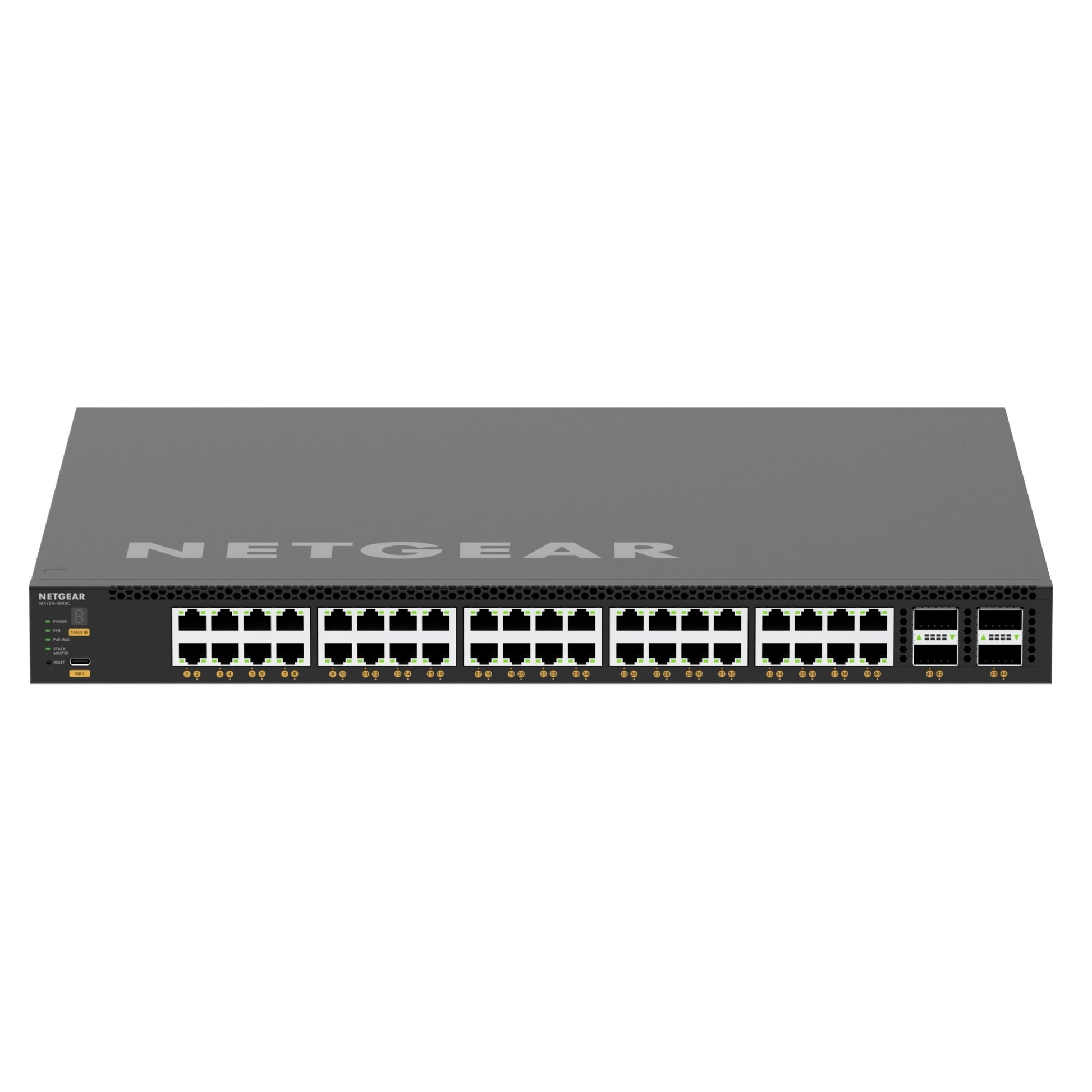

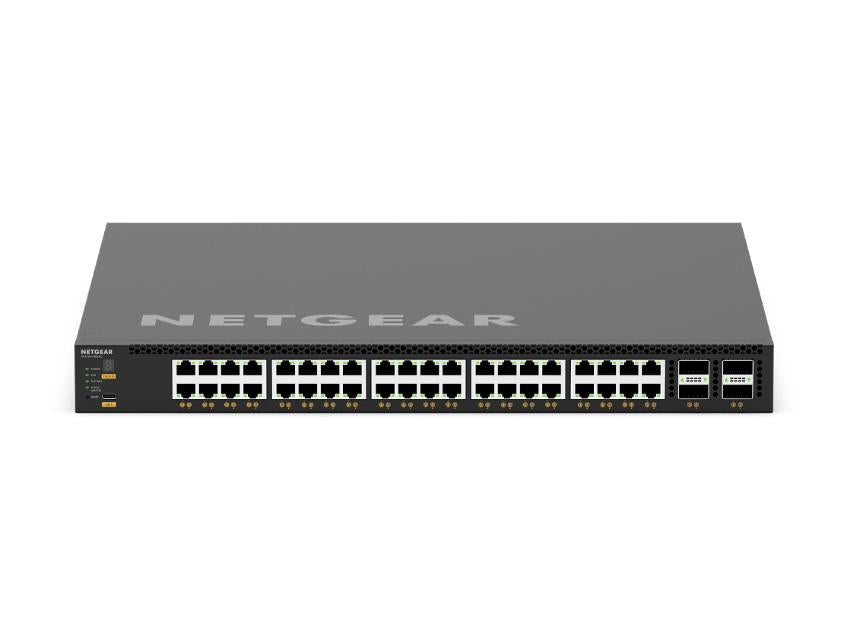

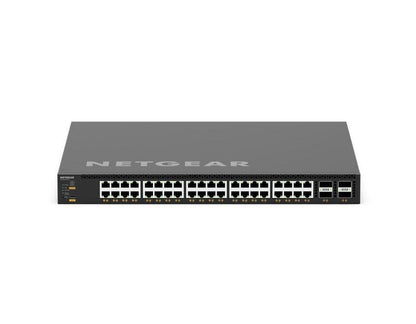

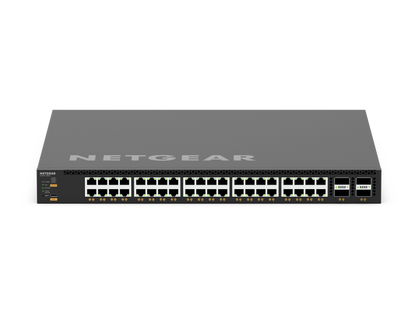

NETGEAR M4350-40X4C Managed Switch, 40-Port, PoE++, TAA
Photo is for illustration purposes only. Actual product may be different.
Regular price
$15,470.67
Regular price
Sale price
$15,470.67
Unit price
per
MSRP: $22,463.04
Shipping calculated at checkout.
Couldn't load pickup availability
- 40 x 10GBase-X PoE++ ports and 4 x 100G QSFP28 uplinks
- 1676W PoE++ budget with 750W internal PSU; supports up to 2 power supplies
- Advanced Layer 3 support including RIP, OSPF, VRRP, IGMP, and policy-based routing
- 1.6 Tbps switching fabric with up to 1190.4 Mpps throughput performance
- Robust security and management: 802.1x, ACLs, SNMP, HTTPS, RADIUS, TACACS+
- 1U rack-mountable design with quad-core CPU, 4 GB RAM, and dual firmware support
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Supports high-density and high-power PoE++ for enterprise AV over IP, surveillance, and Wi-Fi deployments
- Enterprise-grade routing, security, and redundancy features ideal for scalable network backbones
- Fully TAA compliant and covered by a NETGEAR lifetime warranty, making it suitable for government procurement
Product Overview
The NETGEAR M4350-40X4C Managed Switch (model XSM4344C-TAANES) delivers exceptional performance, scalability, and feature depth designed for mid-to-large enterprise networks, AV-over-IP deployments, and mission-critical IT infrastructure. Housing 40 high-speed 10GBase-X PoE++ ports and 4 100G-capable QSFP28 uplinks, this switch is equipped for bandwidth-intensive, latency-sensitive applications. Rack-mountable in 1U with front-to-back airflow, it's ideal for data centers and server rooms demanding efficient thermal management and space optimization.
This switch provides up to 1676 watts of PoE++ power, supporting robust device deployments such as IP cameras, wireless APs, and AV equipment. With a switching fabric of up to 1.6 Tbps and packet throughput of up to 1190.4 Mpps, combined with support for advanced Layer 3 protocols, multicast features, dual firmware, and security options like 802.1x, SSL, RADIUS, and TACACS+, it's prepared for the most demanding routing and access scenarios. The quad-core processor and 4 GB of RAM ensure responsive performance, while configuration and monitoring flexibility are supported with SNMP, CLI, Telnet, SSH, and more.
Its enterprise-grade reliability is underpinned by a NETGEAR lifetime warranty and full compliance with IEEE standards including PoE++, LACP, PTP v2, and policy-based routing. TAA compliance ensures suitability for U.S. government procurement. Whether for core switching in commercial networks or centralized control in AV infrastructures, the M4350-40X4C stands out in power, speed, and redundancy-ready design.
Specifications
Product Overview
Cloud Management & Licensing
| Remote Management Protocols | SNMP, HTTPS, Telnet, SSH, CLI, RADIUS |
| Management Interface | Web GUI, CLI, NETGEAR Insight, SNMP |
| Dual Firmware Image Support | Yes |
Physical & Environmental
| Width | 17.3 in |
| Depth | 15.7 in |
| Height | 17 in |
| Mounting Type | Rack-mountable |
| Airflow Direction | Front-to-back |
Routing & Layer 3 Features
| Routing Protocols Supported | OSPF, RIP, VRRP, IGMP, MLDv2, Policy Based Routing, PIM-SM, PIM-DM, PIM-SSM |
| Layer 3 Capabilities | Static & Dynamic Routing, VRRP, Multicast Routing, DHCPv4/v6 Server |
Interfaces
| Total Ports | 44 |
| 10GBase-X Ports (SFP+) | 40 x PoE++ capable |
| 100GBase-X Ports (QSFP28) | 4 x QSFP28 |
| Management Port | 1 x RJ-45 1G Ethernet |
| Console Port | 1 x USB-C |
| USB Ports | 2 x USB Type A |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9 KB |
| Switching Capacity | Up to 1.6 Tbps |
| Forwarding Rate | Up to 1190.4 Mpps |
| Latency (10G SFP+ Fiber) | 1.292 µs (64-byte packet) |
| Latency (10G Base-T Copper) | 2.711 µs (64-byte packet) |
Advanced Security Features
| Access Control | 802.1x, AAA, RADIUS, TACACS+ |
| Encryption Protocols | SSL |
| Security Features | IP source guard, DoS prevention, DHCP snooping, ARP inspection |
| Policy-Based Routing | Supported |
| Multicast Routing Protocols | PIM-SM, PIM-DM, IGMP, IGMPv3, IGMPv2, PIM-SSM |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | FCC Part 15 Class A, CE Class A, ICES-003 Class A, VCCI, EN55032, EN55024, EN61000-3-2, EN61000-3-3, AS/NZS CISPR32, ANSI C63.4 |
| Compliant Standards | IEEE 802.1x, 802.1p, 802.3af, 802.3ad (LACP), 802.3az, 802.3bt, 802.1w, 802.1AX, 1588v2 PTP |
| Warranty | NETGEAR Lifetime Warranty |
