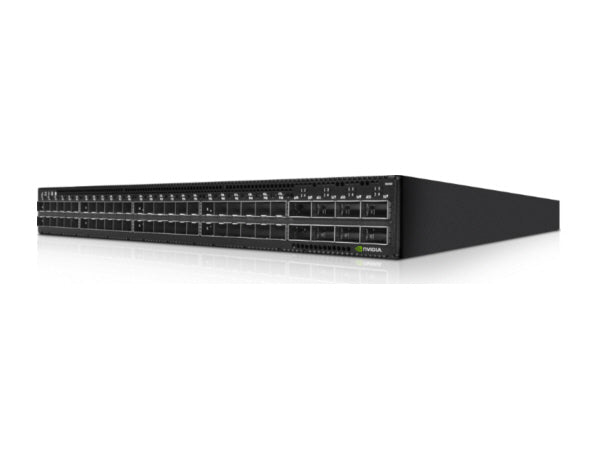

NVIDIA Spectrum 1GBase-T/100GbE 1U Switch, 48 RJ45 + 4 QSFP28, Cumulus Linux

VENDOR: NVIDIA Mfg Part#: MSN2201-CB2FC
1 3
Photo is for illustration purposes only. Actual product may be different.
$3,044.63
$3,044.63
Sale Sold out
MSRP: $3,895.00
Shipping calculated at checkout.
  • 48 1GBASE-T RJ45 ports and 4 100GbE QSFP28 ports
  • 1U short-depth form factor with front-to-back (P2C) airflow
  • Hardware-accelerated histograms for sub-microsecond queue analytics
  • Dual-core processor with 8 GB RAM for control-plane efficiency
  • Pre-installed with Cumulus Linux OS for flexible open networking
  • Dual redundant AC power supplies within 100-264V range

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers dense port configuration in a short-depth 1U chassis—ideal for data centers with space constraints.
  • Advanced telemetry with sub-microsecond precision supports latency-sensitive environments and network diagnostics.
  • Includes Cumulus Linux, enabling automation and agility in modern software-defined networking deployments.

Product Overview

The NVIDIA Spectrum-based MSN2201-CB2FC switch delivers high-density Layer 2/3 Ethernet performance in a 1U form factor, integrating 48 RJ45 1GBASE-T ports and 4 QSFP28 100GbE uplinks. Preloaded with Cumulus Linux and powered by a dual-core CPU with 8GB RAM, the switch is engineered for fast data processing and open network architecture. It features P2C airflow, dual AC power supplies, and support for sub-microsecond telemetry via hardware-accelerated histograms. With TAA compliance and robust management interfaces, this switch suits performance-intensive enterprise or edge deployments.

Specifications

Product Overview
Manufacturer NVIDIA
Product Name NVIDIA Spectrum 1GBase-T/100GbE 1U Switch, 48 RJ45 + 4 QSFP28, Cumulus Linux
Model MSN2201-CB2FC
Network Device Type Switch
Form Factor 1U
Processor Type Dual-Core
RAM Capacity 8 GB
Weight 7.41 Kg
Power Supplies Installed 2
Power Voltage Required 100-264V AC
Power Supply Type AC
Airflow Direction P2C (Port-to-CPU)

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes

Advanced Security Features
Telemetry Hardware-accelerated histograms for sub-microsecond queue monitoring
Secure Management SSH, HTTPS, Role-Based Access Control (RBAC)
Authentication Methods RADIUS, TACACS+
Access Control Lists (ACLs) Supported

Interfaces
Total Number of Ports 52
1GBASE-T RJ45 Ports 48
100GbE QSFP28 Ports 4
Management Ports 1 x 100/1000BASE-T
Serial Console Ports 1 x RS232
USB Ports 1 x Mini-USB
Data Transfer Rate Up to 100 Gbps
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet / 100GbE
Power over Ethernet (PoE) No

Physical & Environmental
Width 16.84 inches
Depth 17 inches
Height 1.72 inches
Minimum Operating Temperature 0°C
Maximum Operating Temperature 40°C
Minimum Storage Temperature -40°C
Maximum Storage Temperature 70°C

Cloud Management & Licensing
Operating System Cumulus Linux
Open Networking Support Yes
Management Interface CLI, SNMP, Web GUI via Cumulus Linux
