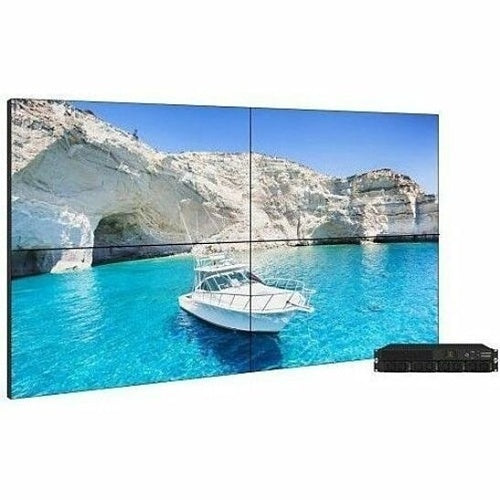

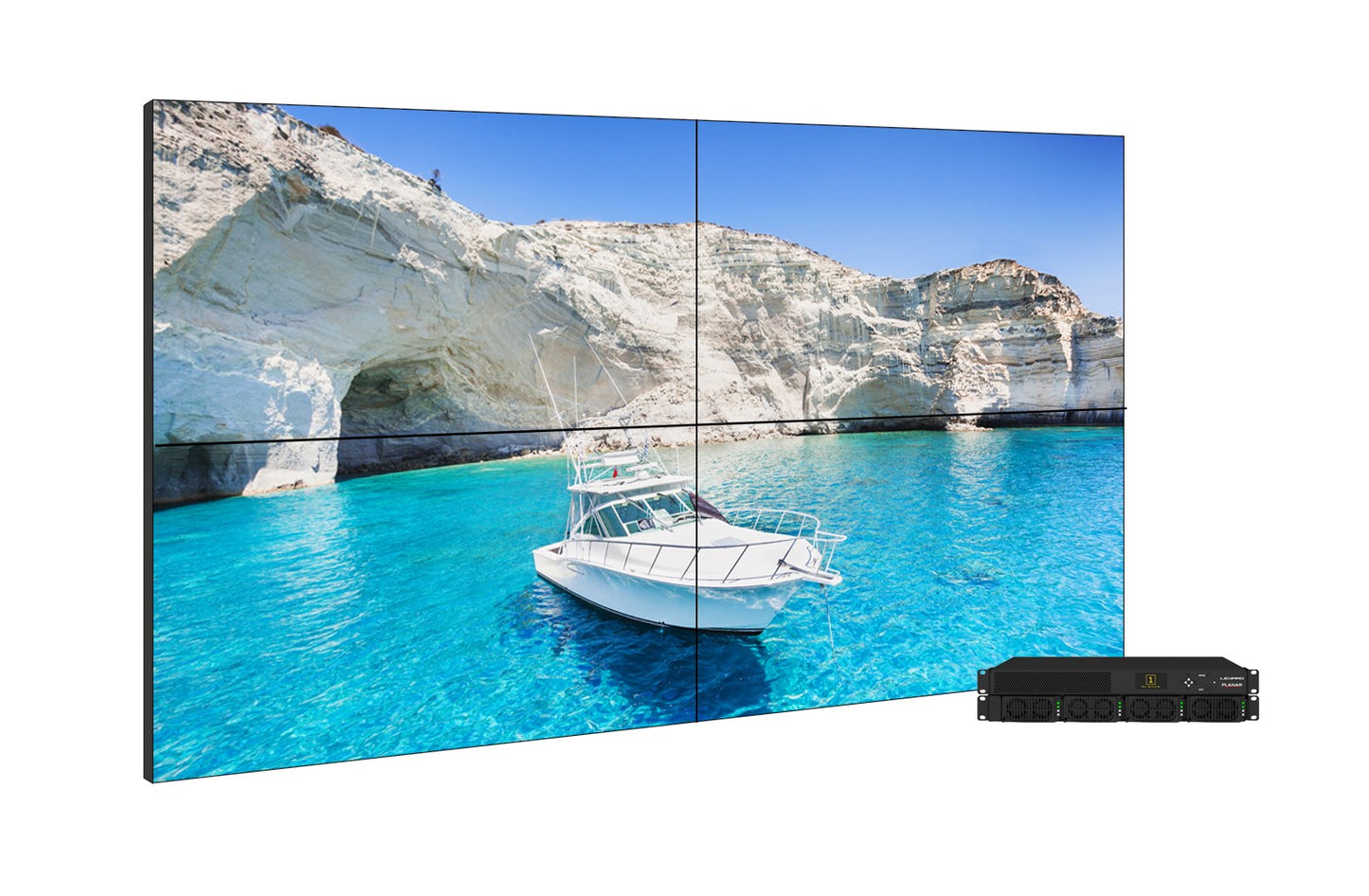

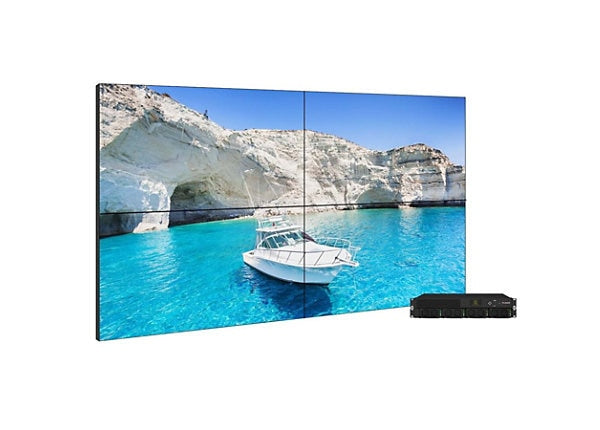

PLANAR Matrix Complete 2x2 Video Wall LX55M - 110" 500-nit Display

VENDOR: PLANAR Mfg Part#: 998-1881-02
1 5
Photo is for illustration purposes only. Actual product may be different.
$31,577.26
$31,577.26
Sale Sold out
MSRP: $35,722.00
Shipping calculated at checkout.
  • - 2x2 video wall configuration using 55-inch LX55M-L panels
  • - 500-nit brightness ensures visibility in varied lighting conditions
  • - Includes EasyAxis wall mounts for streamlined installation
  • - Remote power supply with optional power redundancy for uptime
  • - Comes with one spare display to reduce downtime
  • - 200 ft. power and video cables included for flexible setup

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - All-in-one package simplifies purchasing and installation for commercial video wall projects
  • - Redundant components and spare display enhance system reliability and reduce service interruptions
  • - High-brightness output and large 110-inch diagonal make it ideal for impactful visual communication in high-traffic areas

Product Overview

Matrix Complete 2x2 Video Wall - 500-nit, 110Inch Diagonal. Includes (4+1 spare) LX55M-L Displays, EasyAxis Wall Mounts, Video Controller and Remote Power Supply Electronics,Power Redundancy Option,Trim Kit and 200 ft. Power and Video Cables.

Specifications

Product Overview
Product Type LCD Video Wall Display System
Form Factor Wall-mounted, 2x2 configuration
Total Diagonal Size 110 inches
Display Count 4 displays + 1 spare
Brightness (Typical) 500 nits
Native Resolution (Each Display) 1920 x 1080 (Full HD)
Aspect Ratio 16:9
Bezel Width (Combined) 3.5 mm
Power Supply Remote Power Supply Electronics
Power Redundancy Yes
Included Accessories EasyAxis Mounts, Trim Kit, 200 ft Power and Video Cables, Video Controller

Wireless Features
Wireless Control Capabilities IR Remote Control Support

Compliance & Origin
Country of Origin United States
Compliance Standards FCC Class A, CE, UL/cUL
RoHS Compliant Yes
Energy Efficiency Compliance ENERGY STAR Qualified

Advanced Security Features
Control Access Features Password protection for on-screen menu and remote interface

Interfaces
Video Inputs HDMI, DisplayPort, DVI-D, VGA
Loop-Through Video Yes, via DisplayPort and HDMI
Control Interface RS-232, Ethernet (RJ-45), IR sensor
USB Ports USB Type-A for service
Audio Output 3.5 mm stereo mini jack

Physical & Environmental
Dimensions (Each Display, W x H x D) 47.8 x 26.9 x 3.8 inches
Dimensions (Complete 2x2 Wall) Approx. 95.6 x 53.8 inches (without trim)
Weight (Each Display) Approx. 55 lbs (24.9 kg)
Mount Type EasyAxis Mounting System
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity Range (Operating) 10% to 80% (non-condensing)
VESA Mount Compatibility 400 x 400 mm

Cloud Management & Licensing
Remote Management Yes, via LAN or RS-232
Management Interface Web-based GUI via Ethernet
Video Wall Controller Included Yes
Multi-Display Synchronization Yes
Licensing Requirements No additional licensing required
