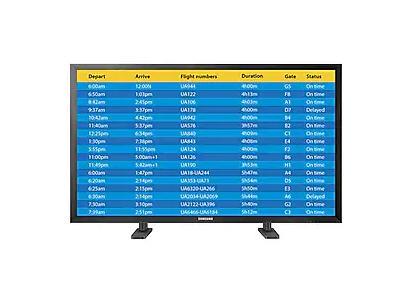

Samsung 820DXN-2 82" LCD Monitor, 1920x1080, 2000:1, LAN, HDMI, 600 nits

VENDOR: SAMSUNG Mfg Part#: 820DXN-2 UPC#: 729507810799
  • The Samsung 820DXN-2 is a commercial-grade 82-inch LCD display offering Full HD resolution, enhanced brightness of 600 cd/m², and versatile connectivity, including HDMI, LAN, and RS232C. Designed for dependable, large-scale signage or presentation needs, it includes built-in speakers, fan control, and advanced features such as Picture-in-Picture and video wall support, making it ideal for control rooms, digital signage, or public display environments.
1 1
Photo is for illustration purposes only. Actual product may be different.
$52,886.55
$52,886.55
Sale Sold out
MSRP: $67,691.00
Shipping calculated at checkout.
  • 82-inch LCD panel with Full HD 1920 x 1080 resolution
  • 600 cd/m² brightness and 2000:1 static contrast ratio for vivid display clarity
  • Comprehensive input/output interfaces including HDMI, DVI-D, BNC, RS232C, and LAN
  • Advanced features: PIP/PBP, video wall (5x5), anti-retention, fan control, and lamp error detection
  • Dual 15W built-in speakers and VESA mount compatibility (1400x800 mm and 900x800 mm)
  • Low standby power consumption (<5W) with operational draw of 920W
View full details

Key Benefits

Eye-Insights
  • Ideal for large-scale digital signage and public display with its 82-inch size and Full HD resolution
  • Offers flexible integration into complex AV environments through multiple inputs and daisy-chain support
  • Designed for durability and commercial reliability with advanced monitoring features and thermal management

Product Overview

The Samsung 820DXN-2 is a robust 82-inch commercial LCD monitor engineered for high-impact visual communication in professional environments. Featuring a Full HD resolution of 1920 x 1080 and an S-PVA panel with an exceptional 600 nits brightness and a 2000:1 contrast ratio, this display delivers vivid, clear images suitable for demanding applications such as public signage and control rooms. With a wide 178° viewing angle, the monitor ensures consistent visual performance from virtually any position.

Connectivity is extensive, supporting HDMI, D-sub, DVI-D in/out, BNC, USB, and LAN. Additional built-in features include lamp error detection, temperature sensors, and anti-retention to enhance reliability. The unit includes dual 15W integrated speakers and supports advanced functionalities such as PIP/PBP, video wall up to 5x5, and digital signal daisy-chaining. VESA mount compatibility and a built-in stand further streamline deployment.

Power-efficient in standby mode and equipped with RS232C remote control support, the 820DXN-2 is ideal for enterprise-scale AV solutions. It also incorporates Samsung's MagicInfo S/W and Windows Embedded Standard 2009 for enhanced control. This model is best suited to scenarios that demand large visual impact and feature-rich media management.

Specifications

Primary Information
Features Lamp Error Detection, Anti Retention, Brightness Sensor, Temperature Sensor, Built-In Fan Control, RS232C MDC, Built in Speaker (15W + 15W), Plug and Play (DDC2B, DDC/CI), PIP/PBP, Video Wall (5x5), Pivot Display, Button Lock, Digital Daisy Chain, MagicInfo S/W,Windows Embedded Standard 2009
Width 75.4 Inch
Depth 5.6 Inch
Height 44.3 Inch
Model 820DXN-2
Display Type LCD Monitor
Display Technology S-PVA
Flat / Curved Flat
Max Resolution 1920 x 1080
Display Diagonal Size 82 Inch
Display / Response Time 8 Ms
Image Contrast Ratio 2000:1
Dynamic Contrast Ratio 2500:1
Brightness 600 nits
Viewing Angle 178/178
Image Aspect Ratio Not Included
HDR Capable None
Picture Enhancements None
Network Connectivity LAN
Speakers 2 x 15W
Interfaces D-sub, DVI-D In/Out, VCR, HDMI, RS232C In/Out, BNC In/Out, PC Audio In, Audio In(L/R), Audio Out (L/R), USB, LAN
Video Interfaces DVI-D; HDMI
Power Consumption Operational 920 Watt
Power Consumption Standby Less than 5W
Stand Yes
VESA Mount Compatible 900 x 800 mm; 1400 x 800 mm

UNSPSC Code
UNSPSC Code 43211902

Power
Power Consumption Operational 920 Watt

Special Feature
RoHS Y
COO MEXICO
TAA compliance Yes

Display
Brightness 600 nits
Display Diagonal Size 82 Inch
Display Type LCD Monitor
Dynamic Contrast Ratio 2500:1
Flat / Curved Flat
HDR Capable None
Image Aspect Ratio Not Included
Picture Enhancements None
Flat / Curved Flat
