Samsung XHB-EP16FLAT1X3 LED Cabinet Display, 7000 nits, 7680Hz

VENDOR: SAMSUNG Mfg Part#: LH160XHBCIE UPC#: 8806094560145
1 3
Photo is for illustration purposes only. Actual product may be different.
$997.69
$997.69
Sale Sold out
MSRP: $1,332.17
Shipping calculated at checkout.
  • - 7000-nit ultra-high brightness for outdoor visibility
  • - 7680Hz refresh rate for flicker-free motion rendering
  • - 281 trillion color support for lifelike image reproduction
  • - Operates in extreme temperature range from -40°C to 55°C
  • - Wide viewing angles of 160° horizontal and 115° vertical
  • - TAA-compliant and made in Mexico for government-ready use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • - Designed for maximum visibility in direct sunlight with ultra-bright 7000 nits
  • - Ideal for high-speed visual content thanks to 7680Hz refresh rate
  • - Suitable for public, enterprise, and government deployments due to TAA compliance and rugged specification

Product Overview

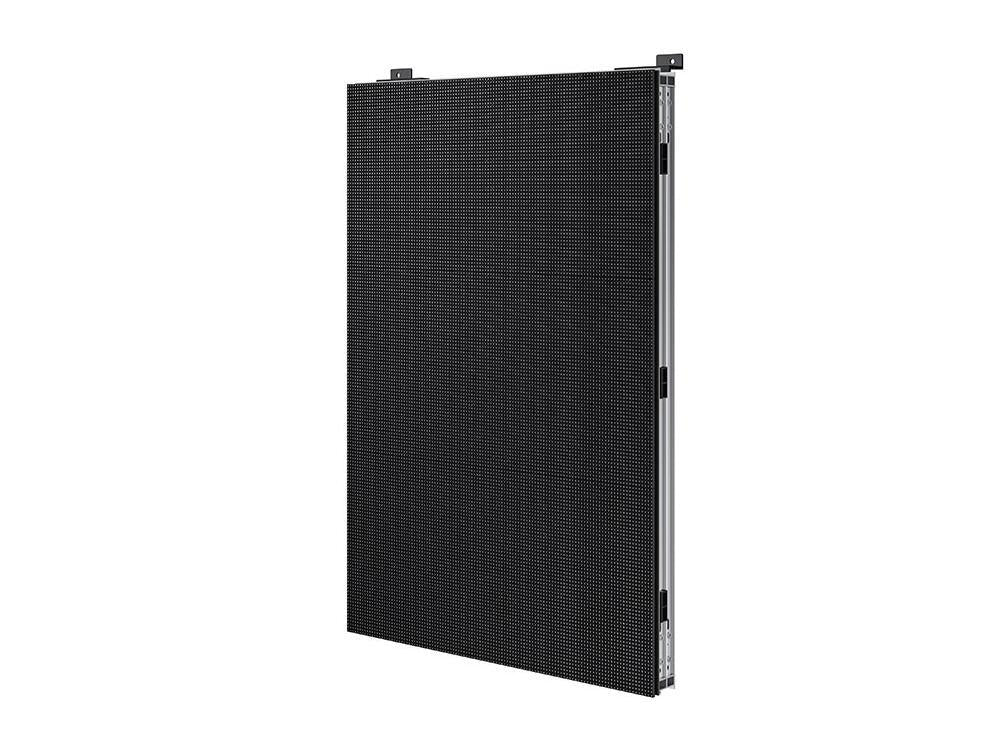

The Samsung XHB-EP16FLAT1X3 is a specialized flat LED cabinet display designed for vibrant and reliable digital signage. Offering an exceptional 7000-nit brightness and contrast ratio of 7000:1, it ensures stunning visibility even in direct sunlight. With a 7680Hz refresh rate and support for 281 trillion colors, it delivers fluid imagery with superior color accuracy. Built to perform in extreme conditions, it operates between -40°C to 55°C and accepts a broad 100~240 VAC power input, making it suitable for global installations. The product is TAA-compliant and manufactured in Mexico, ready for enterprise and government deployment where rugged reliability is essential.

Specifications

Product Overview
Manufacturer Samsung
Model Number LH160XHBCIE
Product Type LED Cabinet Display
Form Factor Flat
Brightness 7000 nits
Contrast Ratio 7000:1
Display Refresh Rate 7680 Hz
Color Support 281 Trillion Colors
Pixel Pitch 16.43 mm
Max Resolution (Cabinet Configuration) 21 x 63 pixels
HDR Support Yes
Power Consumption (Operational) 56 Watt
Power Requirements 100~240 VAC
Weight 39.7 lbs

Wireless Features
Wi-Fi
Bluetooth

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Regulatory Approvals
Certifications

Advanced Security Features
Firewall Protection
Intrusion Detection/Prevention System
Content Filtering
Malware Protection

Interfaces
Network Connectivity None
Video Input Ports
Control Interfaces

Physical & Environmental
Width 344.6 mm
Height 1035.4 mm
Depth 100.9 mm
Operating Temperature Range -40°C to 55°C
Viewing Angle (Horizontal/Vertical) 160° / 115°
Enclosure Rating
Humidity Range (Operating)

Cloud Management & Licensing
Cloud Management Support
Included Licensing
Management Interface
