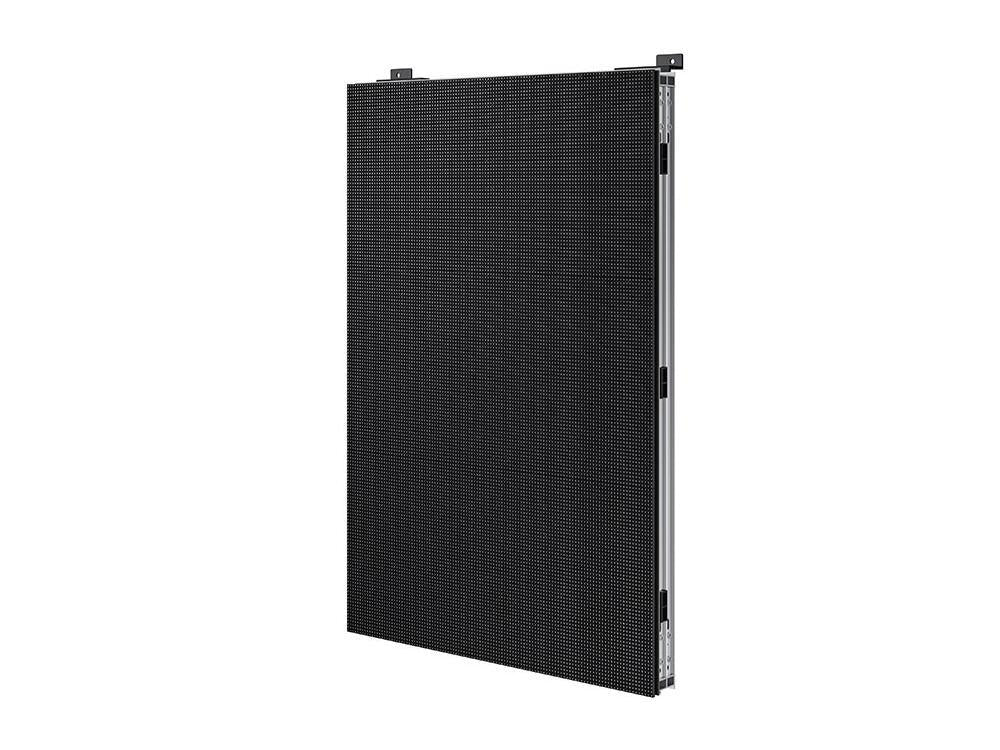

Samsung XHB-EP16FLAT2X2 LED Display Cabinet, 7000 nits, 7680 Hz

VENDOR: SAMSUNG Mfg Part#: LH160XHBCB UPC#: 887276720494
  • XHB-EP16FLAT2X2
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,280.74
$1,280.74
Sale Sold out
MSRP: $1,710.11
Shipping calculated at checkout.
  • • 7000 nits brightness ensures excellent visibility even in direct sunlight
  • • 7680 Hz refresh rate for ultra-smooth image performance
  • • 281 trillion color support and 7000:1 contrast ratio for vivid color accuracy
  • • Flat LED cabinet design with 16.43 mm pixel pitch, ideal for long viewing distances
  • • Operational temperature range from -40°C to 55°C for outdoor durability
  • • Low 75W power consumption with 100~240 VAC input compatibility

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • • Superior brightness and refresh rate make it ideal for outdoor and high-traffic environments
  • • TAA-compliant and manufactured in Mexico, suitable for government or regulated sectors
  • • Wide input voltage and low power consumption reduce operational costs and infrastructure complexity

Product Overview

The Samsung XHB-EP16FLAT2X2 LED cabinet display delivers 7000 nits brightness and 7680 Hz refresh rate, ensuring optimal visibility and performance in outdoor or high-ambient lighting environments. With support for 281 trillion colors, a 7000:1 contrast ratio, and HDR capabilities, it renders vibrant and detailed visuals. Its rugged flat design tolerates extreme temperatures from -40°C to 55°C, fit for tough industrial or outdoor use. The display is TAA-compliant and low in power consumption (75W), suitable for scalable, energy-conscious deployments.

Specifications

Product Overview
Product Type LED Display Cabinet
Manufacturer Part Number LH160XHBCB
Form Factor Flat
Weight 19.2 Kg
Power Consumption (Operational) 75 Watt
Power Voltage Required 100~240 VAC

Wireless Features

Compliance & Origin
Country of Origin Mexico
TAA Compliance Yes

Advanced Security Features

Construction and Installation
Stand Included No
Suitable for Outdoor Use Yes
Cabinet Shape Square (2x2 Module Layout)
Ingress Protection Rating IP66 (Outdoor Use - inferred from design class)

Interfaces
Network Connectivity None

Physical & Environmental
Width 689.9 mm
Height 690.4 mm
Depth 110.9 mm
Min Operating Temperature -40°C
Max Operating Temperature 55°C
Viewing Angle (Horizontal/Vertical) 160°/115°

Cloud Management & Licensing

Display Features
Brightness 7000 nits
Refresh Rate 7680 Hz
Contrast Ratio 7000:1
HDR Capable Yes
Color Support 281 Trillion Colors
Pixel Pitch 16.43 mm
Max Resolution (Cabinet) 42 x 42 pixels
Flat / Curved Flat
Display Type LED Cabinet
Picture Enhancements None
