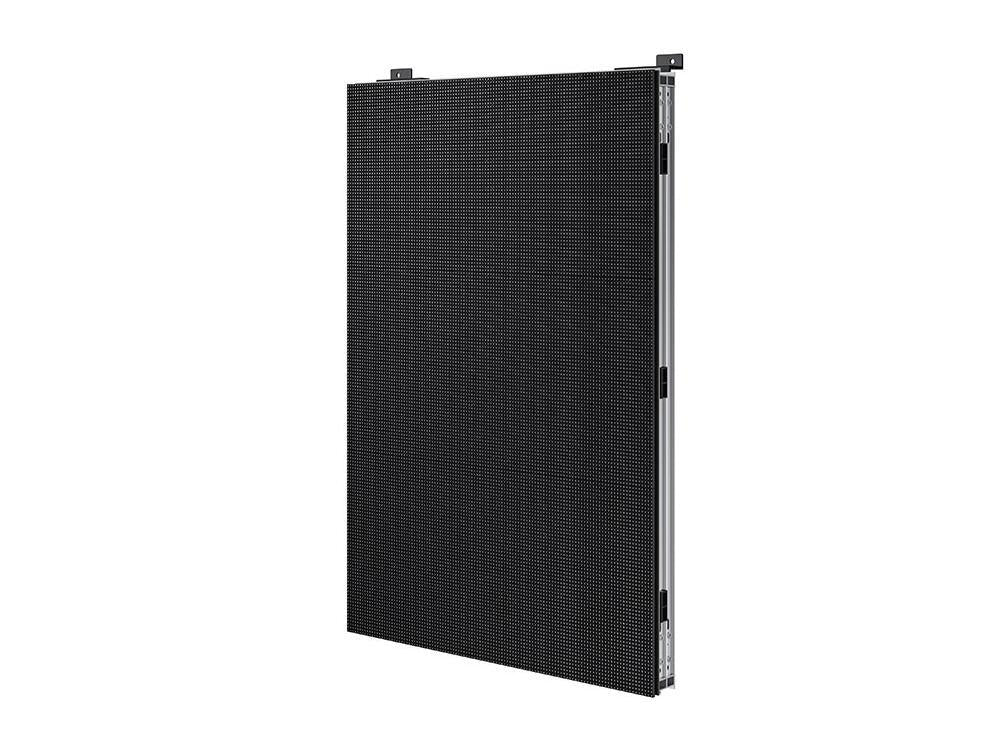

SAMSUNG XHB-EP16L-TYPE4X2 LED Cabinet Display

VENDOR: SAMSUNG Mfg Part#: LH160XHBCRE UPC#: 887276720319
  • The SAMSUNG XHB-EP16L-TYPE4X2 is a high-brightness LED cabinet designed for robust digital signage applications. Offering a stunning 7000 nits brightness and ultra-wide color support, it ensures visibility and performance even in challenging outdoor conditions. Built to endure harsh environments, it supports HDR and delivers exceptional contrast and refresh rate clarity.
1 1
Photo is for illustration purposes only. Actual product may be different.
$2,543.95
$2,543.95
Sale Sold out
MSRP: $3,413.65
Shipping calculated at checkout.
  • LED Cabinet display with 42 x 42 resolution and flat form factor
  • Peak brightness of 7000 nits for visibility in bright environments
  • Support for 281 trillion colors with 7000:1 contrast ratio
  • Extremely low response flicker with 7680 Hz refresh rate
  • Operation range from -40°C to 55°C for harsh climates
  • TAA compliant and runs on 100~240V AC with 150W consumption
View full details

Key Benefits

Eye-Insights
  • Engineered for outdoor and high-ambient-light conditions with 7000-nit brightness ensures message visibility at all times
  • Supports ultra-smooth motion with a high 7680 Hz refresh rate for dynamic, fast-paced content applications
  • Designed for reliability in challenging environments with wide operating temperatures and rugged construction

Product Overview

The SAMSUNG XHB-EP16L-TYPE4X2 is a flat LED cabinet designed for high-impact digital signage. Supporting a brightness of 7000 nits and HDR, it ensures high visibility even in direct sunlight. Its 42 x 42 resolution, 16.43 mm pixel pitch, and 7680 Hz refresh rate deliver smooth, high-resolution visuals. With 281 trillion color support and a 7000:1 contrast ratio, it offers exceptional image fidelity. Built to operate in harsh conditions from -40°C to 55°C, and weighing 30.4 kg, the unit is reliable for outdoor deployment. TAA compliance and wide voltage support (100–240 VAC) further enhance its suitability for government and commercial applications.

Specifications

Primary Information
Model LH160XHBCRE
Display Type LED Cabinet
Flat / Curved Flat
Max Resolution 42 x 42
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 16.43 Mm
Image Contrast Ratio 7000:1
Brightness 7000 nits
Viewing Angle 160/115
HDR Capable Yes
Picture Enhancements None
Network Connectivity None
Power Consumption Operational 150 Watt
Power / Voltage Required 100~240 VAC
Stand None
Width 690 Mm
Depth 690 Mm
Height 690 Mm
Weight 30.4 Kg
Min Operating Temperature -40 Celsius
Max Operating Temperature 55 Celsius

Power
Power / Voltage Required 100~240 VAC
Power Consumption Operational 150 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 7000 nits
Display / Color Support 281 Trillion
Display Type LED Cabinet
Dot Pitch / Pixel Pitch 16.43 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable Yes
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
