Samsung XHB-EP6FLAT2X2 LED Display, 6.16mm Pixel Pitch, 7000 nits Brightness

VENDOR: SAMSUNG Mfg Part#: LH060XHBCBE UPC#: 887276720388
1 1

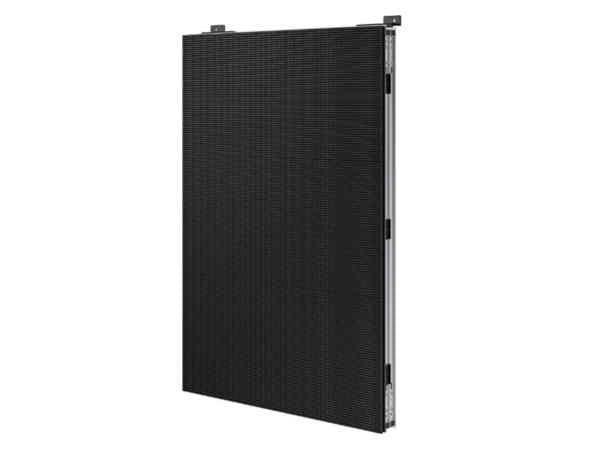

Photo is for illustration purposes only. Actual product may be different.
$1,805.66
$1,805.66
Sale Sold out
MSRP: $2,411.01
Shipping calculated at checkout.
  • • LED display with ultra-high brightness of 7000 nits for optimal outdoor visibility
  • • 6.16 mm pixel pitch with 112 x 112 resolution and 7680 Hz refresh rate for sharp, smooth content
  • • Displays 281 trillion colors for vivid image reproduction
  • • Wide viewing angles of 160° horizontal and 130° vertical
  • • Operates in extreme temperatures from -40°C to 55°C
  • • Power-efficient with 187W consumption and 100-240V global AC compatibility

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • • Engineered for demanding outdoor environments with high brightness and extended temperature operating range
  • • Superior energy efficiency and color performance make it ideal for digital signage and commercial display solutions
  • • TAA-compliant hardware enhances suitability for government and enterprise procurement

Product Overview

The Samsung XHB-EP6FLAT2X2 (Model LH060XHBCBE) is a rugged and high-efficiency LED display tailored for outdoor visibility under any conditions. Featuring 7000 nits brightness and a fine 6.16 mm pixel pitch, it delivers sharp, impactful visuals. With 112 x 112 resolution and a 7680 Hz refresh rate, motion content appears fluid and precise, ideal for commercial settings. The unit supports a wide -40°C to 55°C operating range, enabling reliable performance across environments. Enhanced with 281 trillion colors and 160/130-degree viewing angles, it ensures consistent image fidelity from various viewpoints. It runs on standard 100-240V AC input while consuming 187 watts, reinforcing its energy-efficient design. Though it does not support HDR or image enhancements, its robust feature set, durability, and TAA compliance make it a dependable choice for outdoor digital signage and institutional displays.

Specifications

Product Overview
Type Outdoor LED Display
Model Number LH060XHBCBE
Series XHB Series
Form Factor Flat Panel
Pixel Pitch 6.16 mm
Resolution 112 × 112
Brightness 7000 nits
Refresh Rate 7680 Hz
Contrast Ratio 7000:1
Color Support 281 Trillion Colors
Viewing Angle (H/V) 160° / 130°
Power Consumption (Operational) 187 W
Power Input Requirement 100–240 VAC, 50/60 Hz
Weight 36.15 lbs.

Wireless Features

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications FCC, CE, UL, EMC Class A

Advanced Security Features
Secure Control Access Password-protected access via LSM
Data Encryption Supported via external controller platform
Tamper Resistance Physical lockable enclosure

Interfaces
Control Interface Ethernet (via external controller)
Input Type Modular via LED Controller (not built-in)
LED Cabinet Connection Proprietary pin/hub interface

Physical & Environmental
Width 689.9 mm
Height 690.4 mm
Depth 101.3 mm
Operating Temperature Range -40°C to 55°C
Storage Temperature Range
Humidity (Operating) 10% – 90% (non-condensing)
Mounting Option Custom structure required (no stand included)
Enclosure Type Weatherproof Aluminum Chassis
Ingress Protection Rating IP66 Front / IP66 Rear

Cloud Management & Licensing
Remote Management Supported via Samsung LED Signage Manager (LSM)
Content Management System Compatible with Samsung MagicINFO (license required)
Included Software None included
License Type Sold separately
