Samsung XHB-EP8FLAT2X2 Outdoor LED Display, 7000 nits, 8.21mm Pixel Pitch

VENDOR: SAMSUNG Mfg Part#: LH080XHBCBE UPC#: 887276720418

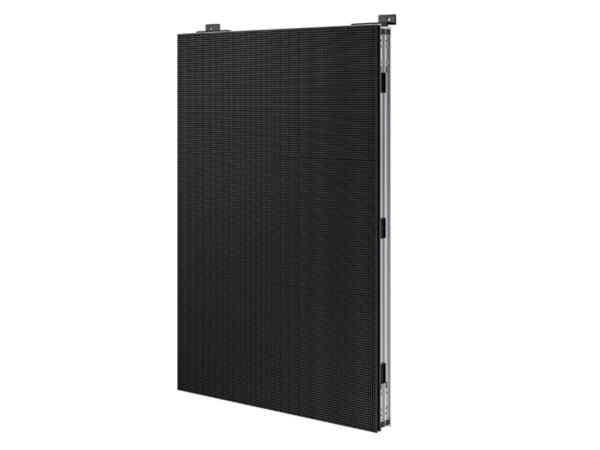

  • The Samsung XHB-EP8FLAT2X2 is a high-brightness outdoor LED display built for exceptional visibility in any environment. With 7000 nits of brightness, a robust operating temperature range, and a pixel pitch of 8.21mm, this panel ensures crisp, vivid images under any lighting conditions. Designed to withstand the elements, it’s ideal for digital signage in venues requiring round-the-clock reliability.
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,618.77
$1,618.77
Sale Sold out
MSRP: $2,172.18
Shipping calculated at checkout.
  • LED Display with 7000 nits brightness and 7000:1 contrast ratio for outdoor readability
  • 8.21 mm pixel pitch suitable for clear mid-range viewing
  • 7680 Hz refresh rate ensures smooth, flicker-free performance
  • 281 trillion color support for vibrant, accurate image rendering
  • Wide viewing angle of 160° horizontal and 117° vertical
  • Operational temperature range from -40°C to 50°C for extreme weather durability
View full details

Key Benefits

Eye-Insights
  • Outstanding 7000-nit brightness and high contrast make it perfect for high-visibility outdoor signage.
  • Wide temperature and voltage tolerance ensures reliable performance in extreme environments.
  • TAA compliant and made in Mexico, suitable for government and institutional procurements.

Product Overview

The Samsung XHB-EP8FLAT2X2 outdoor LED display is engineered for high-performance digital signage in demanding environments. Featuring 7000 nits brightness and a contrast ratio of 7000:1, it delivers vibrant visuals even under direct sunlight. Its wide viewing angles ensure visibility from multiple perspectives, ideal for public spaces.

Built for resilience, it operates from -40°C to 50°C, with an 8.21mm pixel pitch suited for clear mid-distance viewing. Color fidelity is assured through 281 trillion color support and a 7680 Hz refresh rate for smooth content delivery. Power-efficient and modular, it supports 100–240V input and uses 187 watts under normal operation.

Compact and durable, the display is TAA compliant, made in Mexico, and provides excellent ROI in outdoor signage deployments lacking the need for HDR or advanced picture enhancements.

Specifications

Primary Information
Model LH080XHBCBE
Display Type LED Display
Flat / Curved Flat
Max Resolution 84 x 84
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 8.21 Mm
Image Contrast Ratio 7000:1
Brightness 7000 nits
Viewing Angle 160/117
HDR Capable None
Picture Enhancements None
Power Consumption Operational 187 Watt
Power / Voltage Required 100-240 VAC, 50/60 Hz
Stand None
Width 689.9 Mm
Depth 102 Mm
Height 690.4 Mm
Weight 36.15 lbs.
Features Introducing Samsung XHB series: a reliable, attention-grabbing outdoor display designed to perform in any scenario. With consistently high brightness, XHB is the ideal solution to deliver clear and brilliant visuals day and night, whether its sunny or stormy.
Min Operating Temperature -40 Celsius
Max Operating Temperature 50 Celsius

Power
Power / Voltage Required 100-240 VAC, 50/60 Hz
Power Consumption Operational 187 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 7000 nits
Display / Color Support 281 Trillion
Display Type LED Display
Dot Pitch / Pixel Pitch 8.21 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable None
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
