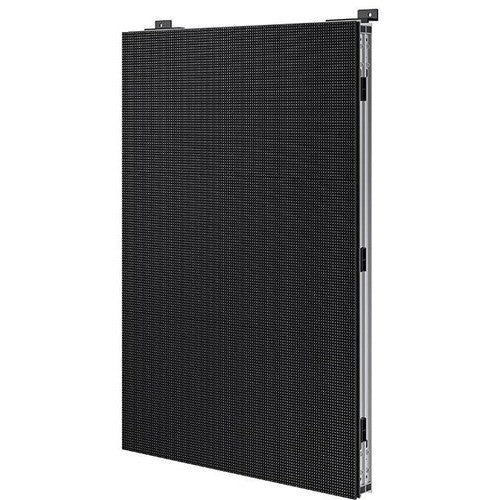

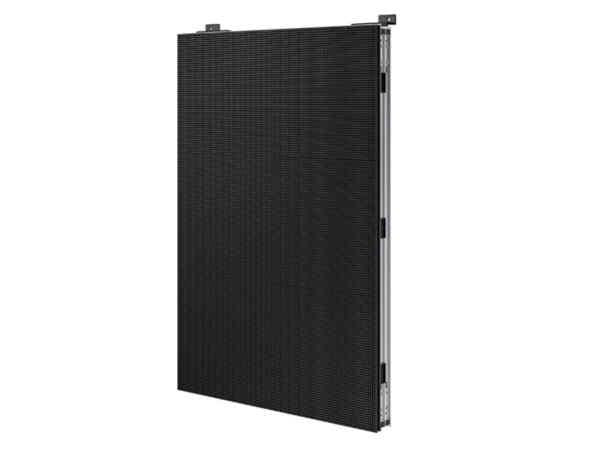

Samsung XHB-EP8L-TYPE4X2 Outdoor LED Display, 7000 nits, 84x84 Resolution

VENDOR: SAMSUNG Mfg Part#: LH080XHBCRE UPC#: 887276720340
  • The Samsung XHB-EP8L-TYPE4X2 is a rugged LED outdoor display engineered for high-impact digital signage in varied environments. Featuring 7000 nits brightness, robust weather resistance, and vibrant 281 trillion color support, this display maintains visual clarity in bright daylight or adverse conditions. Ideal for business, public, or commercial outdoor use, it operates seamlessly in extreme temperatures from -40°C to 50°C.
1 1
Photo is for illustration purposes only. Actual product may be different.
$3,242.91
$3,242.91
Sale Sold out
MSRP: $4,351.55
Shipping calculated at checkout.
  • LED display with 7000 nits brightness for daylight visibility
  • Supports 281 trillion colors for ultra-rich color representation
  • 7680 Hz refresh rate for seamless motion playback
  • Wide operating temperature range (-40°C to 50°C) for outdoor reliability
  • 8.21 mm pixel pitch with 84x84 resolution for vivid imagery
  • TAA compliant and power efficient at 373 watts operational consumption
View full details

Key Benefits

Eye-Insights
  • Ideal for outdoor environments with extreme weather tolerance from -40°C to 50°C
  • Delivers outstanding image clarity even in direct sunlight with 7000 nits brightness
  • TAA compliance ensures suitability for government or institutional projects

Product Overview

The Samsung XHB-EP8L-TYPE4X2 LED outdoor display is built for high-visibility digital signage in all weather conditions. With 7000 nits brightness, 281 trillion color support, and a 7680 Hz refresh rate, it ensures brilliant, smooth visuals in commercial and public applications. This flat-panel, 84x84 resolution display features an 8.21 mm pixel pitch and a wide temperature range (-40°C to 50°C) for reliable performance outdoors. The unit is TAA compliant, consumes 373 watts, and is designed for maximum impact where reliability and visibility matter most.

Specifications

Primary Information
Model LH080XHBCRE
Display Type LED Display
Flat / Curved Flat
Max Resolution 84 x 84
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 8.21 Mm
Image Contrast Ratio 7000:1
Brightness 7000 nits
Viewing Angle 160/117
HDR Capable None
Picture Enhancements None
Power Consumption Operational 373 Watt
Power / Voltage Required 100-240 VAC, 50/60 Hz
Stand None
Width 690 Mm
Depth 690 Mm
Height 690 Mm
Weight 30.4 Kg
Features Introducing Samsung XHB series: a reliable, attention-grabbing outdoor display designed to perform in any scenario. With consistently high brightness, XHB is the ideal solution to deliver clear and brilliant visuals day and night, whether its sunny or stormy.
Min Operating Temperature -40 Celsius
Max Operating Temperature 50 Celsius

Power
Power / Voltage Required 100-240 VAC, 50/60 Hz
Power Consumption Operational 373 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 7000 nits
Display / Color Support 281 Trillion
Display Type LED Display
Dot Pitch / Pixel Pitch 8.21 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable None
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
