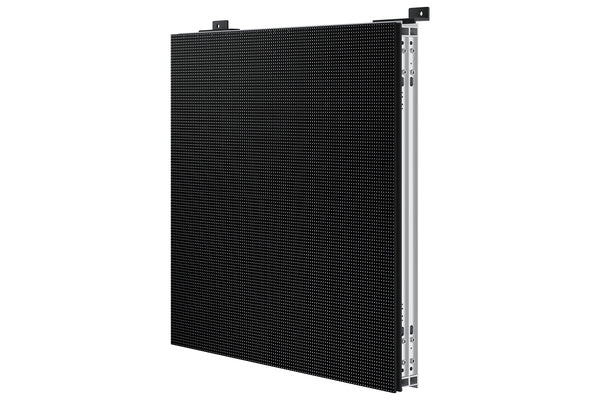

Samsung XHB-SP10FLAT2X2 10.78mm LED Cabinet Display

VENDOR: SAMSUNG Mfg Part#: LH100XHBTBS UPC#: 887276720487
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,722.56
$1,722.56
Sale Sold out
MSRP: $2,300.04
Shipping calculated at checkout.
  • 10.78mm pixel pitch for large-scale, high-resolution LED configurations
  • 7680 Hz refresh rate for smooth motion and flicker-free visuals
  • 8000 nits peak brightness for daylight visibility
  • 281 trillion color support for advanced color accuracy
  • Temperature range of -40°C to 55°C for outdoor use
  • TAA compliance for regulatory-required deployments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Offers ultra-high brightness at 8000 nits and HDR capability—ideal for outdoor and high-ambient light conditions.
  • Supports 281 trillion colors and 8000:1 contrast ratio, delivering premium image fidelity for professional signage.
  • TAA compliant and made in Mexico, allowing eligibility for government procurement contracts.

Product Overview

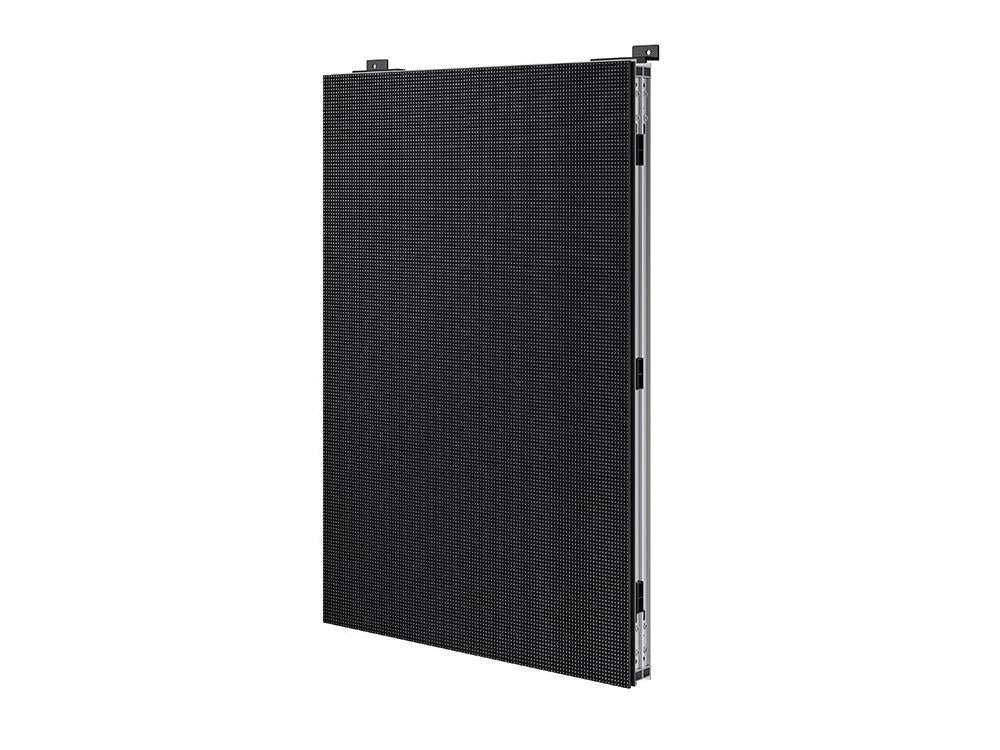

The Samsung XHB-SP10FLAT2X2 LED Cabinet Display, model LH100XHBTBS, is designed for premium digital signage where brightness, color accuracy, and reliability are critical. Offering a 10.78mm pixel pitch and 7680 Hz refresh rate, it delivers sharp imagery with 281 trillion colors and a contrast ratio of 8000:1. With HDR support and ultra-high 8000 nits brightness, the unit excels in outdoor and brightly-lit environments. Engineered for durability, it operates between -40°C to 55°C and is TAA compliant, making it suitable for enterprise and institutional deployment.

Specifications

Product Overview
Type LED Cabinet Display
Form Factor Modular Cabinet (2x2 Configuration)
Model LH100XHBTBS
Pixel Pitch 10.78 mm
Brightness 8000 nits
Contrast Ratio 8000:1
Refresh Rate 7680 Hz
Color Support 281 Trillion Colors
HDR Support Yes
Power Consumption (Operational) 111 Watt
Power Requirements 100~240 VAC
Weight 36.15 lbs

Wireless Features
Wi-Fi
Bluetooth

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications
Safety Standards
EMC Compliance

Advanced Security Features
Content Protection
Access Control
Tamper Detection
Firmware Security

Interfaces
Network Connectivity None
Video Input Interfaces
Control Interface

Physical & Environmental
Width 689.9 mm
Height 690.4 mm
Depth 102.9 mm
Flat / Curved Flat
Viewing Angle (Horizontal/Vertical) 160°/107°
Operating Temperature (Min) -40°C
Operating Temperature (Max) 55°C
Humidity Range
Cabinet Material
Ingress Protection Rating

Cloud Management & Licensing
Remote Management
Cloud Management Platform
License Included
