Products Display Screens & Monitors Display Screens & TVs SAMSUNG XHB-SP10L-TYPE4X3 L...

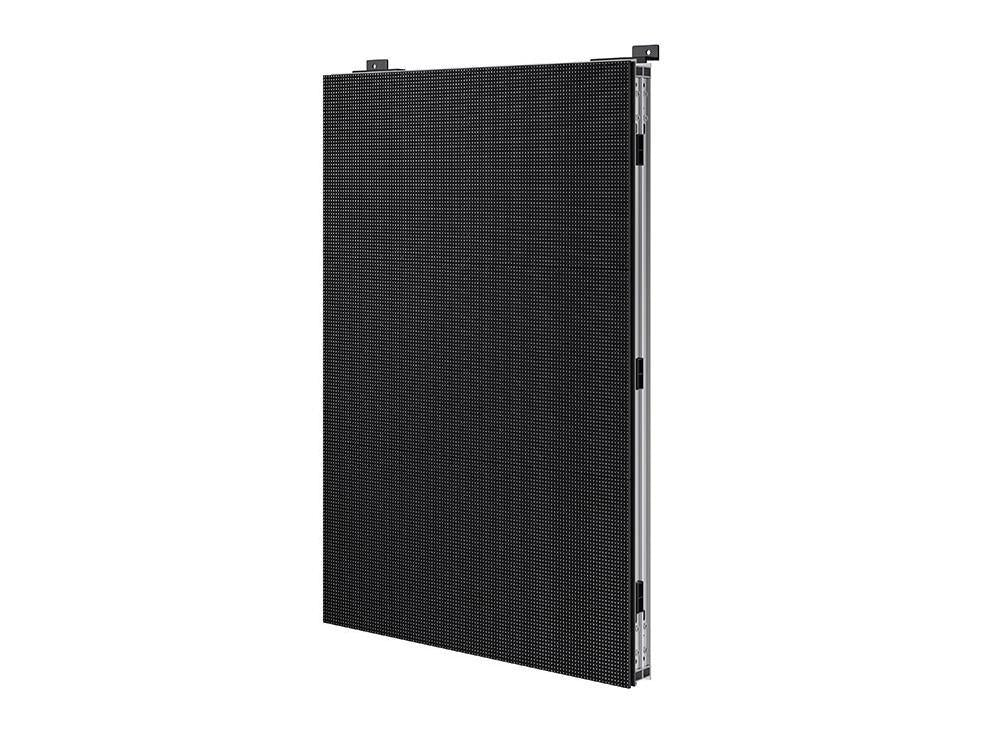

SAMSUNG XHB-SP10L-TYPE4X3 LED Cabinet Display, 8000 nits, 10.78mm Pixel

VENDOR: SAMSUNG Mfg Part#: LH100XHBTLS UPC#: 887276720531
  • The SAMSUNG XHB-SP10L-TYPE4X3 is a robust LED cabinet display optimized for high-impact visual performance in demanding environments. With an exceptional 8000 nits of brightness and support for an astounding 281 trillion colors, it offers crystal-clear imagery in both indoor and outdoor settings. HDR compatibility and an ultra-fast 7680 Hz refresh rate ensure superior video rendering and color depth across large-scale deployments.
1 1
Photo is for illustration purposes only. Actual product may be different.
$5,160.06
$5,160.06
Sale Sold out
MSRP: $6,924.12
Shipping calculated at checkout.
  • LED cabinet design with flat form factor for scalable installations
  • Brightness rated at 8000 nits and contrast ratio of 8000:1 for high-visibility output
  • HDR compatible and supports 281 trillion colors for rich, dynamic visuals
  • Ultra-high refresh rate of 7680 Hz ensures smooth performance in video applications
  • Operates in extreme temperatures from -40°C to 55°C for outdoor reliability
  • Pixel pitch of 10.78 mm supports clear, detailed viewing at distance
View full details

Key Benefits

Eye-Insights
  • Designed for high-brightness applications up to 8000 nits, ideal for outdoor or highly lit environments.
  • HDR support and 7680 Hz refresh rate deliver superior visual fidelity and smooth playback without flicker.
  • TAA-compliant and made in Mexico, ensuring eligibility for government and regulated industry use.

Product Overview

The SAMSUNG XHB-SP10L-TYPE4X3 (Model: LH100XHBTLS) is a professional-grade LED Cabinet display designed for large-format digital signage. Featuring a 10.78 mm pixel pitch, flat configuration, and 8000 nits brightness, it ensures high visibility even in intense lighting. The 8000:1 contrast ratio boosts visual sharpness, while a refresh rate of 7680 Hz supports smooth, flicker-free playback. With 281 trillion color support and HDR capability, visuals appear vibrant and true to life.

Engineered for harsh environments, the unit functions seamlessly between -40°C and 55°C. Weighing 42.7 kg and drawing 334 watts of power, it suits rugged deployments needing consistent performance. Although there are no built-in network or image enhancement features, the product is TAA-compliant and manufactured in Mexico, supporting regulated sector installations. This cabinet format display offers a powerful combination of durability, fidelity, and operational efficiency.

Specifications

Primary Information
Model LH100XHBTLS
Display Type LED Cabinet
Flat / Curved Flat
Max Resolution 64 x 96
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 10.78 Mm
Image Contrast Ratio 8000:1
Brightness 8000 nits
Viewing Angle 160/107
HDR Capable Yes
Picture Enhancements None
Network Connectivity None
Power Consumption Operational 334 Watt
Power / Voltage Required 100~240 VAC
Stand None
Width 690 Mm
Depth 690 Mm
Height 1035 Mm
Weight 42.7 Kg
Min Operating Temperature -40 Celsius
Max Operating Temperature 55 Celsius

Power
Power / Voltage Required 100~240 VAC
Power Consumption Operational 334 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 8000 nits
Display / Color Support 281 Trillion
Display Type LED Cabinet
Dot Pitch / Pixel Pitch 10.78 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable Yes
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
