Samsung XHB-SP16FLAT1X2 LED Cabinet Display, Flat, 8000 nits, 16.43 mm pitch

VENDOR: SAMSUNG Mfg Part#: LH160XHBTSS UPC#: 8806094560176
  • XHB-SP16FLAT1X2 by Samsung is a high-brightness LED display cabinet engineered for digital signage applications requiring outstanding visibility and durability. With a brightness of 8000 nits and support for 281 trillion colors, it ensures optimal image quality even in direct sunlight, making it ideal for indoor or outdoor use. HDR capability, a refresh rate of 7680 Hz, and a durable construction rated down to -40° C enhance the visual impact and reliability of the unit across environments.
1 1

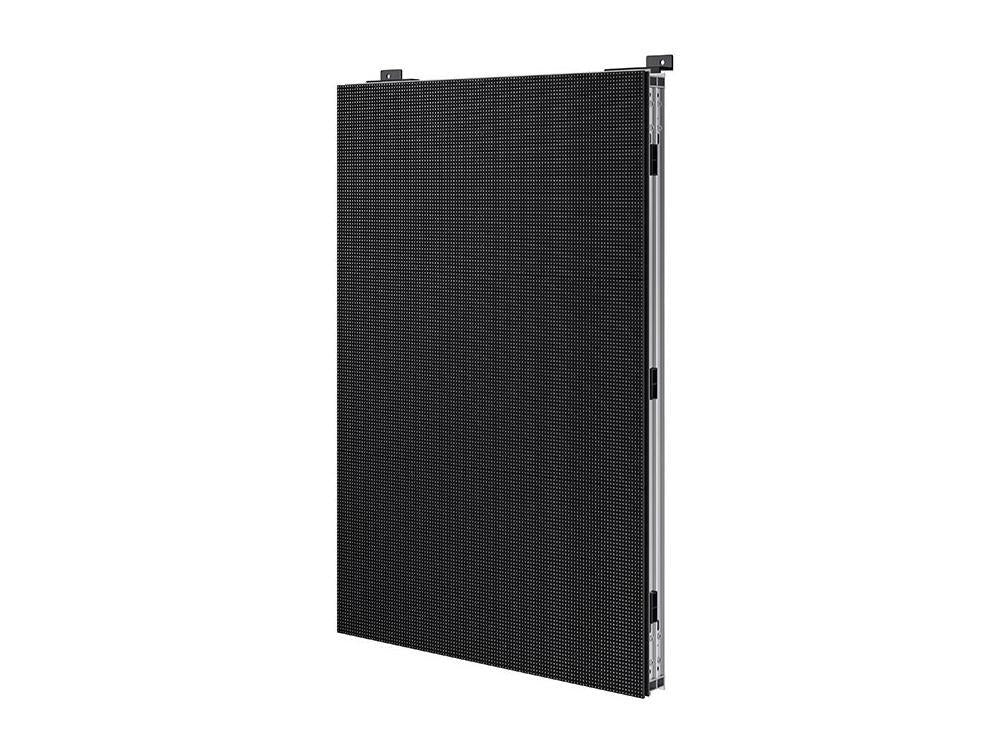

Photo is for illustration purposes only. Actual product may be different.
$855.75
$855.75
Sale Sold out
MSRP: $1,148.30
Shipping calculated at checkout.
  • LED cabinet display with flat panel structure
  • Ultra-high brightness of 8000 nits for sunlight readability
  • HDR capable with support for 281 trillion colors
  • 7680 Hz refresh rate for smooth motion rendering
  • Wide operating range from -40°C to 55°C
  • Power-efficient design with only 38W consumption
View full details

Key Benefits

Eye-Insights
  • Designed for dependable performance in extreme environmental conditions, operating from -40°C to 55°C.
  • Delivers outstanding visual clarity with 8000 nits brightness and support for HDR content.
  • High refresh rate of 7680 Hz minimizes motion blur, ideal for dynamic signage applications or live content.

Product Overview

The Samsung XHB-SP16FLAT1X2 is a purpose-built LED cabinet display engineered for digital signage in high-brightness or outdoor settings. Offering 8000 nits of brightness, HDR support, and over 281 trillion colors, it ensures vivid, sharp imagery even under intense lighting. A refresh rate of 7680 Hz and pixel pitch of 16.43 mm allow for fluid content delivery across wide viewing areas. Built to endure harsh environments from -40°C to 55°C, its flat-panel design and energy-efficient 38W power profile make installation and operation cost-effective and stable. With TAA compliance and reliable construction, it suits both corporate and public sector digital infrastructure needs.

Specifications

Primary Information
Model LH160XHBTSS
Display Type LED Cabinet
Flat / Curved Flat
Max Resolution 21 x 42
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 16.43 Mm
Image Contrast Ratio 8000:1
Brightness 8000 nits
Viewing Angle 160/115
HDR Capable Yes
Picture Enhancements None
Network Connectivity None
Power Consumption Operational 38 Watt
Power / Voltage Required 100~240 VAC
Stand None
Width 344.6 Mm
Depth 110.9 Mm
Height 690.4 Mm
Weight 27 lbs.
Min Operating Temperature -40 Celsius
Max Operating Temperature 55 Celsius

Power
Power / Voltage Required 100~240 VAC
Power Consumption Operational 38 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 8000 nits
Display / Color Support 281 Trillion
Display Type LED Cabinet
Dot Pitch / Pixel Pitch 16.43 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable Yes
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
