SAMSUNG XHB-SP16FLAT2X2 LED Cabinet Display, 8000 nits, 16.43mm Pixel

VENDOR: SAMSUNG Mfg Part#: LH160XHBTBS UPC#: 887276720500

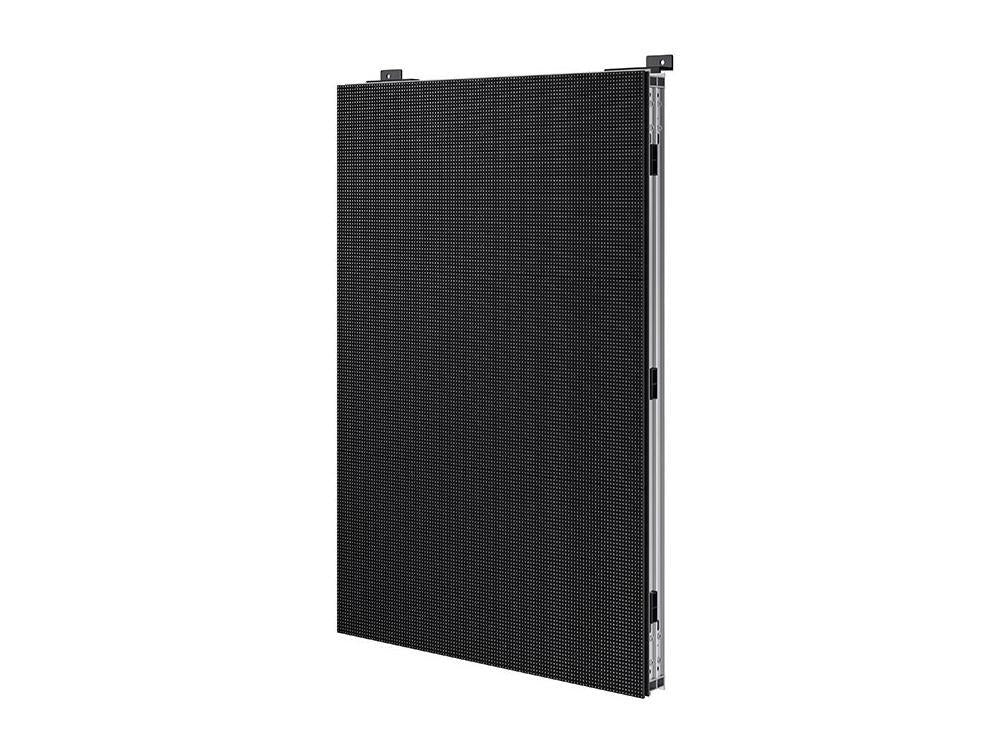

  • The SAMSUNG XHB-SP16FLAT2X2 is a high-brightness LED cabinet display built for digital signage and large-format professional installations. With a brightness rating of 8000 nits and HDR support, it ensures visibility even in direct sunlight. Its flat panel design and precise pixel pitch enhance image clarity, making it ideal for vibrant indoor or semi-outdoor visual experiences.
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,458.24
$1,458.24
Sale Sold out
MSRP: $1,956.76
Shipping calculated at checkout.
  • LED cabinet display with 8000 nits brightness for high-ambient-light environments
  • Supports HDR and displays 281 trillion colors for vivid, ultra-rich visuals
  • Pixel pitch of 16.43 mm and refresh rate of 7680 Hz for smooth motion and clarity
  • Wide 160° horizontal and 115° vertical viewing angles
  • Operates in extreme temperatures (-40°C to 55°C) for versatile environments
  • TAA compliant, suitable for regulated and governmental procurement
View full details

Key Benefits

Eye-Insights
  • Exceptional 8000 nits brightness ensures clear visibility in both indoor and outdoor installations
  • Wide temperature tolerance and rugged build support reliable performance in extreme climates
  • Compliant with TAA standards, making it ideal for public sector and enterprise use

Product Overview

The SAMSUNG XHB-SP16FLAT2X2 is a professional-grade LED cabinet offering 8000 nits brightness for visibility in daylight-rich environments. It supports HDR and renders remarkable 281 trillion color depth, ensuring vibrant visuals. With a 7680 Hz refresh rate and 16.43 mm pixel pitch, it handles dynamic content smoothly and clearly. Its rugged build supports operation in temperatures from -40°C to 55°C, and it is fully TAA compliant, making it ideal for government and professional installations.

Specifications

Primary Information
Model LH160XHBTBS
Display Type LED Cabinet
Flat / Curved Flat
Max Resolution 42 x 42
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 16.43 Mm
Image Contrast Ratio 8000:1
Brightness 8000 nits
Viewing Angle 160/115
HDR Capable Yes
Picture Enhancements None
Network Connectivity None
Power Consumption Operational 75 Watt
Power / Voltage Required 100~240 VAC
Stand None
Width 689.9 Mm
Depth 110.9 Mm
Height 690.4 Mm
Weight 19.2 Kg
Min Operating Temperature -40 Celsius
Max Operating Temperature 55 Celsius

Power
Power / Voltage Required 100~240 VAC
Power Consumption Operational 75 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 8000 nits
Display / Color Support 281 Trillion
Display Type LED Cabinet
Dot Pitch / Pixel Pitch 16.43 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable Yes
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
