Samsung XHB-SP16FLAT2X3 LED Cabinet Display, LH160XHBTAS

VENDOR: SAMSUNG Mfg Part#: LH160XHBTAS UPC#: 8806094571523

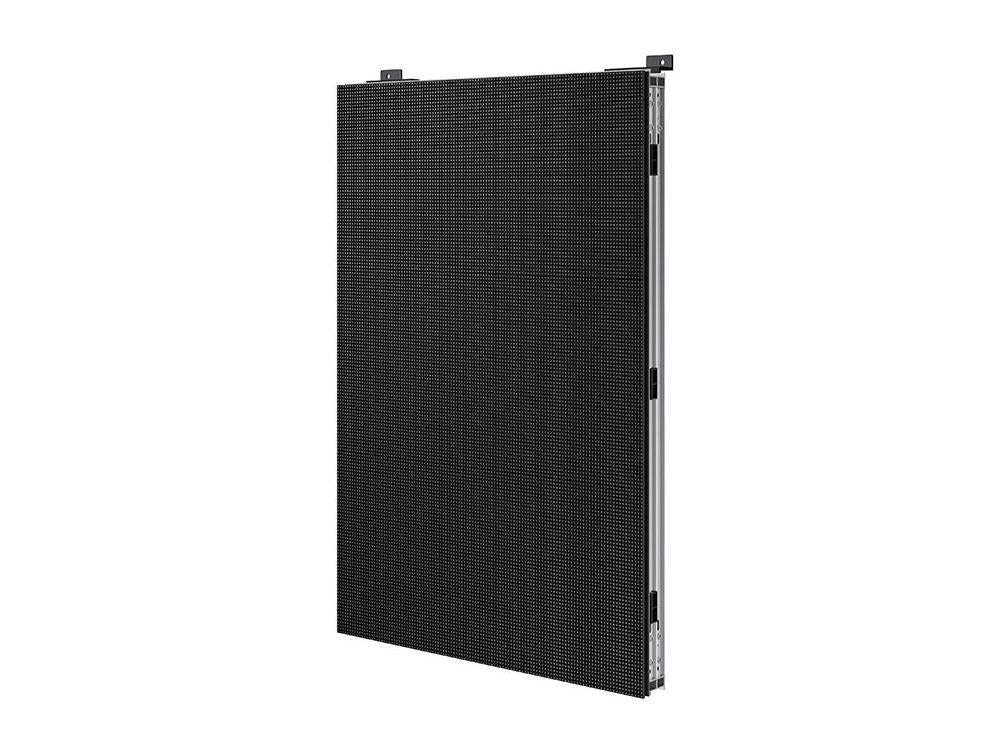

  • The Samsung XHB-SP16FLAT2X3 is a high-brightness LED cabinet display engineered for impactful visual performance in outdoor or high-ambient light environments. With HDR capability, an 8000 nit brightness rating, and ultra-fine 16.43 mm pixel pitch, it ensures excellent color support with over 281 trillion colors, delivering stunning, vivid imagery. Designed with a rugged build and extended temperature tolerances, it's ideal for demanding signage installations.
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,755.44
$1,755.44
Sale Sold out
MSRP: $2,355.55
Shipping calculated at checkout.
  • LED Cabinet display type with flat configuration
  • 8000 nits brightness for excellent visibility in direct sunlight
  • 7680 Hz refresh rate for ultra-smooth motion rendering
  • 281 trillion color support for vivid, accurate image reproduction
  • Pixel pitch of 16.43 mm for optimized viewing at distance
  • Operates in extreme temperatures from -40°C to 55°C
View full details

Key Benefits

Eye-Insights
  • Engineered for outdoor signage with high brightness (8000 nits) and extreme operating temperature tolerance
  • Delivers exceptionally rich visuals with over 281 trillion colors and HDR capability for accurate display quality
  • TAA compliant and Mexico origin, ideal for government and enterprise procurement standards

Product Overview

The Samsung XHB-SP16FLAT2X3 (model LH160XHBTAS) is a high-performance LED cabinet display designed for demanding commercial signage environments. It delivers 8000 nits brightness, HDR compatibility, and 281 trillion colors for vibrant, detailed visuals. Its 16.43 mm pixel pitch and ultra-fast 7680 Hz refresh rate ensure crisp performance, while its -40°C to 55°C operational range makes it ideal for outdoor or exposed installations. TAA compliance and 100–240 VAC power compatibility enhance its suitability for enterprise and institutional deployments.

Specifications

Primary Information
Model LH160XHBTAS
Display Type LED Cabinet
Flat / Curved Flat
Max Resolution 42 x 63
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 16.43 Mm
Image Contrast Ratio 8000:1
Brightness 8000 nits
Viewing Angle 160/115
HDR Capable Yes
Picture Enhancements None
Network Connectivity None
Power Consumption Operational 95 Watt
Power / Voltage Required 100~240 VAC
Stand None
Width 689.9 Mm
Depth 100.9 Mm
Height 1035.4 Mm
Weight 60.4 lbs.
Min Operating Temperature -40 Celsius
Max Operating Temperature 55 Celsius

Power
Power / Voltage Required 100~240 VAC
Power Consumption Operational 95 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 8000 nits
Display / Color Support 281 Trillion
Display Type LED Cabinet
Dot Pitch / Pixel Pitch 16.43 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable Yes
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
