Samsung XHB-SP16L-TYPE4X2 LED Cabinet Display, 8000 nits, 7680 Hz

VENDOR: SAMSUNG Mfg Part#: LH160XHBTRS UPC#: 887276720463
  • The Samsung XHB-SP16L-TYPE4X2 is a high-brightness LED cabinet display designed for demanding digital signage applications. With an intense 8000-nit brightness and a super-fast 7680 Hz refresh rate, it ensures superior outdoor visibility even under direct sunlight. This flat-panel LED display offers vivid color reproduction and robust performance across extreme temperature ranges.
1 1

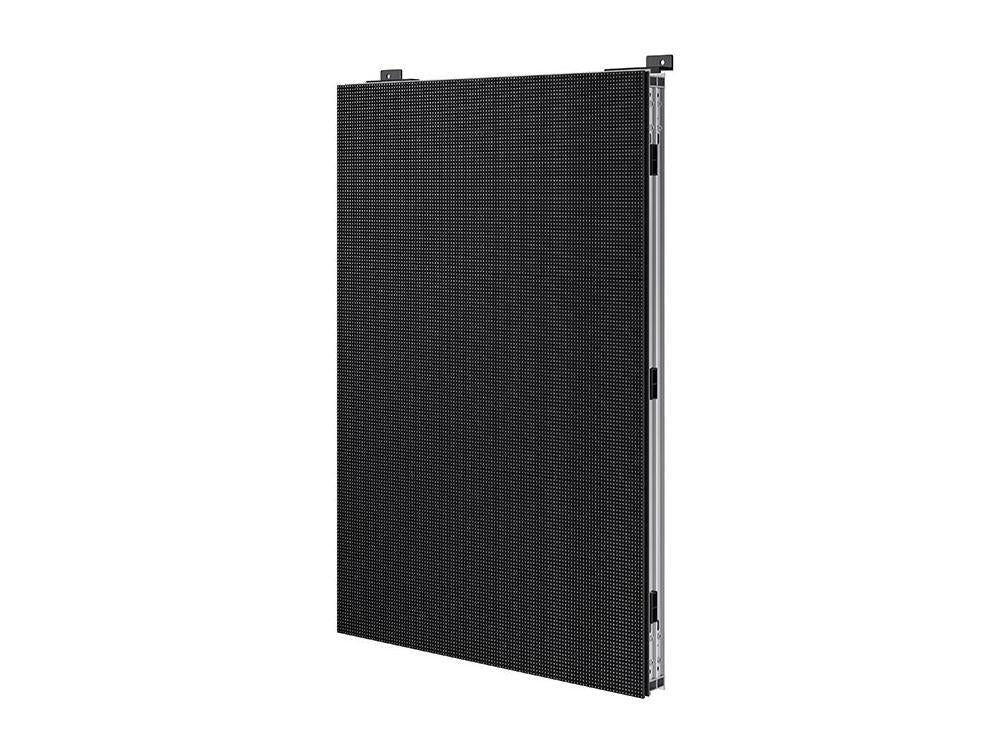

Photo is for illustration purposes only. Actual product may be different.
$2,870.91
$2,870.91
Sale Sold out
MSRP: $3,852.37
Shipping calculated at checkout.
  • Brightness: 8000 nits for high visibility in direct sunlight
  • 7680 Hz refresh rate for seamless video playback
  • Supports 281 trillion colors for accurate, vivid imagery
  • Extreme operating temperature range: -40°C to 55°C
  • Dot pitch of 16.43 mm for detailed outdoor visual clarity
  • TAA-compliant and made in Mexico for regulated applications
View full details

Key Benefits

Eye-Insights
  • Perfect for outdoor digital signage applications with high ambient light, thanks to its 8000 nits brightness.
  • Ensures long-term reliability in harsh environments with operational temperatures from -40°C to 55°C.
  • High refresh rate and expanded color support deliver premium image quality for commercial and government deployments.

Product Overview

The Samsung XHB-SP16L-TYPE4X2 is purpose-built for large-scale outdoor digital signage and commercial visual installations. Featuring a cabinet-style LED panel, it delivers extraordinary image clarity and consistency with an ultra-high brightness level of 8000 nits—ideal for sunlight-drenched environments. Its wide 160°/115° viewing angles and HDR-capable imaging ensure rich, vibrant visuals with a contrast ratio of 8000:1. With a 7680 Hz refresh rate, it supports smooth rendering for video applications.

Supporting up to 281 trillion colors, the LED cabinet outputs a full-spectrum color range. Designed in a uniform 690 mm square format and weighing 30.4 kg, it enables modular configuration across various display surfaces. The unit handles extreme environmental conditions with an operational range from -40°C to 55°C. With a power draw of 150W and a flexible 100–240 VAC input, it delivers reliable performance for enterprise-level deployments. TAA compliance and Mexican manufacture position it well for government and regulated industry use cases.

Specifications

Primary Information
Model LH160XHBTRS
Display Type LED Cabinet
Flat / Curved Flat
Max Resolution 42 x 42
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 16.43 Mm
Image Contrast Ratio 8000:1
Brightness 8000 nits
Viewing Angle 160/115
HDR Capable Yes
Picture Enhancements None
Network Connectivity None
Power Consumption Operational 150 Watt
Power / Voltage Required 100~240 VAC
Stand None
Width 690 Mm
Depth 690 Mm
Height 690 Mm
Weight 30.4 Kg
Min Operating Temperature -40 Celsius
Max Operating Temperature 55 Celsius

Power
Power / Voltage Required 100~240 VAC
Power Consumption Operational 150 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 8000 nits
Display / Color Support 281 Trillion
Display Type LED Cabinet
Dot Pitch / Pixel Pitch 16.43 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable Yes
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
