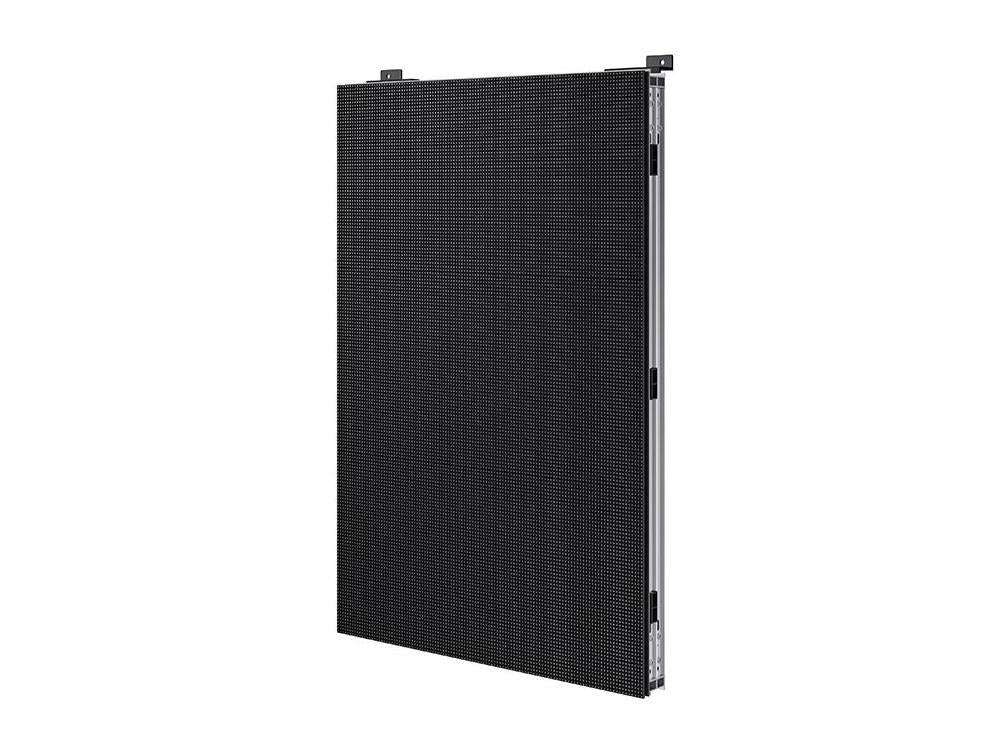

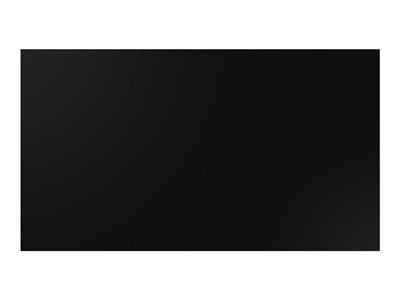

SAMSUNG XHB-SP16L-TYPE4X3 LED Cabinet Display

VENDOR: SAMSUNG Mfg Part#: LH160XHBTLS UPC#: 887276720548
  • The SAMSUNG XHB-SP16L-TYPE4X3 is a high-performance LED cabinet designed for demanding digital signage applications. With a remarkable brightness of 8000 nits and color support for 281 trillion colors, it delivers vibrant imagery even in challenging lighting conditions. Its robust design and wide temperature range make it ideal for outdoor and industrial display environments.
1 1
Photo is for illustration purposes only. Actual product may be different.
$4,351.68
$4,351.68
Sale Sold out
MSRP: $5,839.37
Shipping calculated at checkout.
  • LED Cabinet display type with a flat format and high brightness of 8000 nits
  • Supports a color depth of 281 trillion colors and 7680 Hz refresh rate for smooth visuals
  • High contrast ratio of 8000:1 enhances image depth and clarity
  • Pixel pitch of 16.43 mm suitable for large-scale viewing distances
  • Wide operating temperature range from -40°C to 55°C
  • TAA compliant and operates on 100–240 VAC with 224-watt power consumption
View full details

Key Benefits

Eye-Insights
  • Engineered for extreme conditions with a broad operating temperature range (-40°C to 55°C)
  • Exceptional visual quality with HDR support, 8000 nits brightness, and high color fidelity
  • Modular LED cabinet design ideal for scalable, large-format digital signage applications

Product Overview

The SAMSUNG XHB-SP16L-TYPE4X3, model LH160XHBTLS, is a flat LED cabinet designed for robust visual performance in high-intensity display settings. With 8000 nits brightness, a contrast ratio of 8000:1, support for 281 trillion colors, and HDR capability, this display ensures extraordinary clarity and vibrancy. It operates reliably in industrial environments with temperatures ranging from -40°C to 55°C, consuming only 224 watts while supported by a 100–240 VAC range. With a pixel pitch of 16.43 mm and a rugged build, it is an excellent solution for outdoor signage, stadiums, or transit centers.

Specifications

Primary Information
Model LH160XHBTLS
Display Type LED Cabinet
Flat / Curved Flat
Max Resolution 42 x 63
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 16.43 Mm
Image Contrast Ratio 8000:1
Brightness 8000 nits
Viewing Angle 160/115
HDR Capable Yes
Picture Enhancements None
Network Connectivity None
Power Consumption Operational 224 Watt
Power / Voltage Required 100~240 VAC
Stand None
Width 690 Mm
Depth 690 Mm
Height 1035 Mm
Weight 42.7 Kg
Min Operating Temperature -40 Celsius
Max Operating Temperature 55 Celsius

Power
Power / Voltage Required 100~240 VAC
Power Consumption Operational 224 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 8000 nits
Display / Color Support 281 Trillion
Display Type LED Cabinet
Dot Pitch / Pixel Pitch 16.43 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable Yes
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
