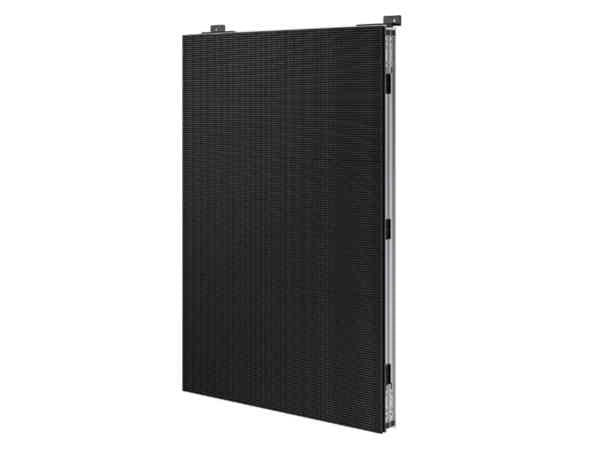

Samsung XHB-SP6FLAT1X2 Outdoor LED Display, 6.16mm Pixel Pitch

VENDOR: SAMSUNG Mfg Part#: LH060XHBTSS UPC#: 8806094560077
  • The Samsung XHB-SP6FLAT1X2 is a robust outdoor LED display engineered for high-impact digital signage in challenging environments. With 8000 nits brightness and a 6.16mm pixel pitch, it ensures visibility, even in bright daylight. This display is part of Samsung's XHB series designed for professional-grade installations.
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,258.15
$1,258.15
Sale Sold out
MSRP: $1,688.28
Shipping calculated at checkout.
  • 8000 nits brightness for high visibility in daylight
  • 6.16 mm pixel pitch for fine image detail outdoors
  • 281 trillion color support for vivid, true-to-life imagery
  • 7680 Hz refresh rate ensures smooth motion without flickering
  • Wide 160/130° viewing angle enhances image clarity from different positions
  • Operational temperature range from -40°C to 55°C for robust outdoor use
View full details

Key Benefits

Eye-Insights
  • Optimized for outdoor digital signage with superior brightness and contrast
  • Energy-efficient 55W power consumption provides cost-effective operation
  • TAA compliance and Mexico-based manufacturing support institutional and government procurement

Product Overview

The Samsung XHB-SP6FLAT1X2 (LH060XHBTSS) is a high-brightness outdoor LED display tailored for professional digital signage. It features 8000 nits brightness, a 6.16mm pixel pitch, and 7680 Hz refresh rate to deliver consistent performance under harsh lighting conditions. Its wide 160/130 degree viewing angle and support for 281 trillion colors ensure stunning, vivid visuals from multiple vantage points. The unit operates efficiently at just 55 watts and is built to function reliably in temperatures ranging from -40°C to 55°C. Designed for outdoor commercial uses, the XHB display series offers durable, TAA-compliant solutions backed by Samsung's trusted engineering.

Specifications

Primary Information
Model LH060XHBTSS
Display Type LED Display
Flat / Curved Flat
Max Resolution 56 x 112
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 6.16 Mm
Image Contrast Ratio 8000:1
Brightness 8000 nits
Viewing Angle 160/130
HDR Capable None
Picture Enhancements None
Power Consumption Operational 55 Watt
Power / Voltage Required 100-240 VAC, 50/60 Hz
Stand None
Width 344.6 Mm
Depth 101.3 Mm
Height 690.4 Mm
Weight 10.8 Kg
Features Introducing Samsung XHB series: a reliable, attention-grabbing outdoor display designed to perform in any scenario. With consistently high brightness, XHB is the ideal solution to deliver clear and brilliant visuals day and night, whether its sunny or stormy.
Min Operating Temperature -40 Celsius
Max Operating Temperature 55 Celsius

Power
Power / Voltage Required 100-240 VAC, 50/60 Hz
Power Consumption Operational 55 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 8000 nits
Display / Color Support 281 Trillion
Display Type LED Display
Dot Pitch / Pixel Pitch 6.16 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable None
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
