Samsung XHB-SP6L-TYPE4X3 LED Display, 6.16mm Pixel Pitch, 8000 nits

VENDOR: SAMSUNG Mfg Part#: LH060XHBTLS UPC#: 8806094710113
1 3
Photo is for illustration purposes only. Actual product may be different.
$6,354.63
$6,354.63
Sale Sold out
MSRP: $8,485.03
Shipping calculated at checkout.
  • LED display with 6.16 mm pixel pitch for clear outdoor visual performance
  • Ultra-high 8000 nits brightness with 8000:1 contrast ratio
  • Displays up to 281 trillion colors for rich, vibrant imagery
  • 7680 Hz refresh rate ensures smooth video playback
  • Wide 160°/130° viewing angles for broad audience visibility
  • Operates reliably in extreme temperatures from -40°C to 55°C

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for high-visibility outdoor signage due to 8000 nits brightness and wide viewing angles
  • TAA-compliant and made in Mexico, suitable for government and enterprise procurement
  • Withstands extreme environments, from -40°C to 55°C, supporting continuous outdoor operation

Product Overview

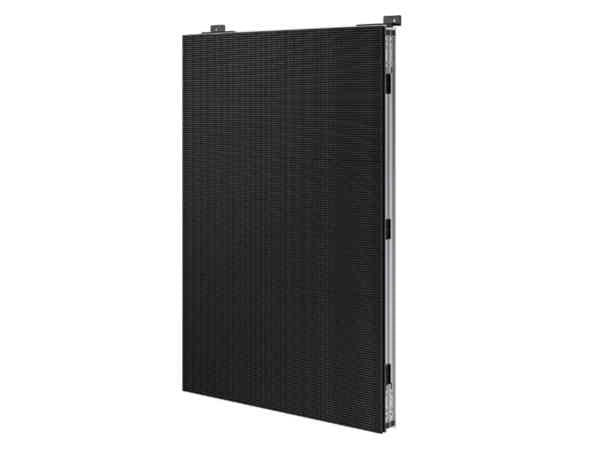

The Samsung XHB-SP6L-TYPE4X3 outdoor LED display is engineered for demanding professional environments where maximum visibility and durability are critical. With a pixel pitch of 6.16 mm and a resolution of 112 x 168, it offers detailed imagery for medium-range viewing. Displaying up to 281 trillion colors and boasting an 8000 nits brightness and 8000:1 contrast ratio, it ensures clear content even under direct sunlight. The 7680 Hz refresh rate delivers smooth playback suitable for active public spaces.

The screen supports extreme operating temperatures from -40°C to 55°C and accepts 100–240V input, making it deployment-ready in diverse climates. Its dimensions (690 mm width/depth, 1035 mm height) and modular structure accommodate various signage needs. TAA compliance and professional-grade construction support deployment across government and enterprise use cases. Built in Mexico, this display is a high-ROI signage solution for mission-critical applications.

Specifications

Product Overview
Type Outdoor LED Display
Model LH060XHBTLS
Form Factor Modular Panel
Weight 42.7 kg
Power Consumption (Operational) 320 Watt
Power Requirements 100-240 VAC, 50/60 Hz
Flat or Curved Flat
Display Description Samsung XHB series commercial-grade weatherproof LED signage panel

Wireless Features
Wireless Connectivity
Wi-Fi Support
Bluetooth

Display Parameters
Display Type LED Display
Pixel Pitch 6.16 mm
Resolution 112 x 168 pixels
Brightness 8000 nits
Color Depth 281 Trillion Colors
Contrast Ratio 8000:1
Refresh Rate 7680 Hz
Viewing Angle (H/V) 160° / 130°

Cloud Management & Licensing
Management System Compatible with Samsung MagicINFO and LED Signage Manager
Remote Management Supported via MagicINFO or SLM
Cloud Licensing Optional MagicINFO license (sold separately)

Interfaces
Signal Input Modular LED control system (external controller required)
Input Type Digital signal over proprietary/ext. controller
Video Controller Compatibility Samsung S-Box or compatible LED media player

Physical & Environmental
Width 690 mm
Height 1035 mm
Depth 690 mm
Enclosure Rating IP65 Front / IP65 Rear
Minimum Operating Temperature -40°C
Maximum Operating Temperature 55°C
Operating Humidity 10% - 90% RH (non-condensing)

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications CE, FCC, RoHS, EMC Class A

Advanced Security Features
Content Protection Secured playback via Samsung MagicINFO
Access Control Password-secured device access
Monitoring Alerts Diagnostic and usage alerts via remote management software
