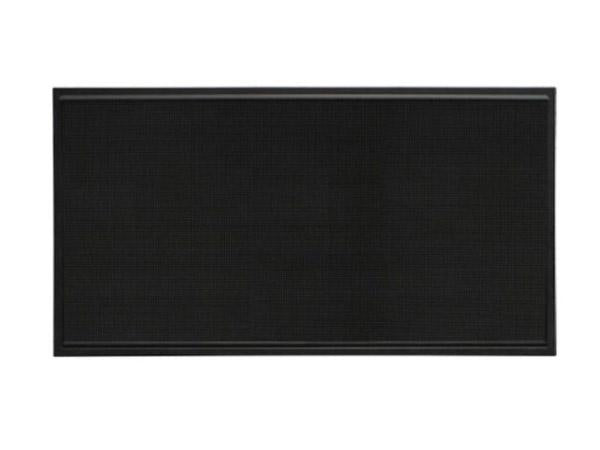

SAMSUNG XPR-B 10mm Outdoor LED Display Double Face 192x96

VENDOR: SAMSUNG Mfg Part#: CY-10VTD480 UPC#: 887276468587
  • No_media_available
1 0
Photo is for illustration purposes only. Actual product may be different.
$19,075.74
$19,075.74
Sale Sold out
MSRP: $25,630.00
Shipping calculated at checkout.
  • Double-face 10mm LED display for outdoor applications
  • 192 x 96 resolution for clear signage
  • Manufactured in the United States for quality assurance
  • TAA compliant for government and enterprise procurement
  • Classified under Monitor/Display/Projector Accessories

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • TAA compliance ensures suitability for government and federally regulated contract use.
  • Made in the United States, supporting quality assurance and domestic sourcing requirements.
  • Double-face LED design enhances visibility and message coverage in outdoor environments.

Product Overview

The SAMSUNG XPR-B 10mm Outdoor LED Display is engineered for high-performance visibility in outdoor environments. Featuring a double-face configuration with 192x96 resolution, this unit provides effective signage for branding and public communication. Manufactured in the United States and TAA compliant, it supports federal procurement standards and indicates a commitment to regulatory compliance. Though specific details on response time or display size are not available, its build quality and origin signify reliable, long-term operation in professional deployments.

Specifications

Product Overview
Product Type Outdoor LED Display
Form Factor Double Face Cabinet
Pixel Pitch 10 mm
Resolution per Face 192 x 96
Brightness (Typical) 7,000 nits
Contrast Ratio 5,000:1
Color Capability 16.7 million colors
Cabinet Material Aluminum
Ingress Protection (Front/Rear) IP65/IP45
Mount Type Pole-mount, Wall-mount capable
Power Supply Type Internal Power Supply
Power Consumption (Typical) 550 W/m²
Power Consumption (Max) 850 W/m²
Lifetime (Half Brightness) 100,000 hours

Wireless Features
Wireless Control Capability Yes, via MagicINFO or S-Box with Wi-Fi module (optional)
Wi-Fi Standards Supported 802.11ac (via compatible controller)

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications FCC, UL, CE, EMC Class A
Environmental Regulations RoHS Compliant

Advanced Security Features
Secure Communication SSL Protocols via MagicINFO
User Access Control Role-Based Access Control (RBAC) via MagicINFO

Interfaces
Video Input HDMI, DVI, DisplayPort (via S-Box or external controller)
Control Interface RJ45 (Ethernet), RS232
Service Interface USB

Physical & Environmental
Dimensions (W x H x D) 960 mm x 480 mm x 135 mm (per cabinet)
Weight (Per Cabinet) Approximately 28 kg
Operating Temperature Range -30°C to 50°C
Operating Humidity Range 10% – 90% (non-condensing)
Cooling System Fan Cooling
Ventilation Front and Rear
Service Access Front and Rear Serviceable

Cloud Management & Licensing
Management Platform Samsung MagicINFO (optional license)
Remote Monitoring Yes, via MagicINFO or SNMP
Device Group Management Supported with MagicINFO
Included Licensing None (MagicINFO license sold separately)
