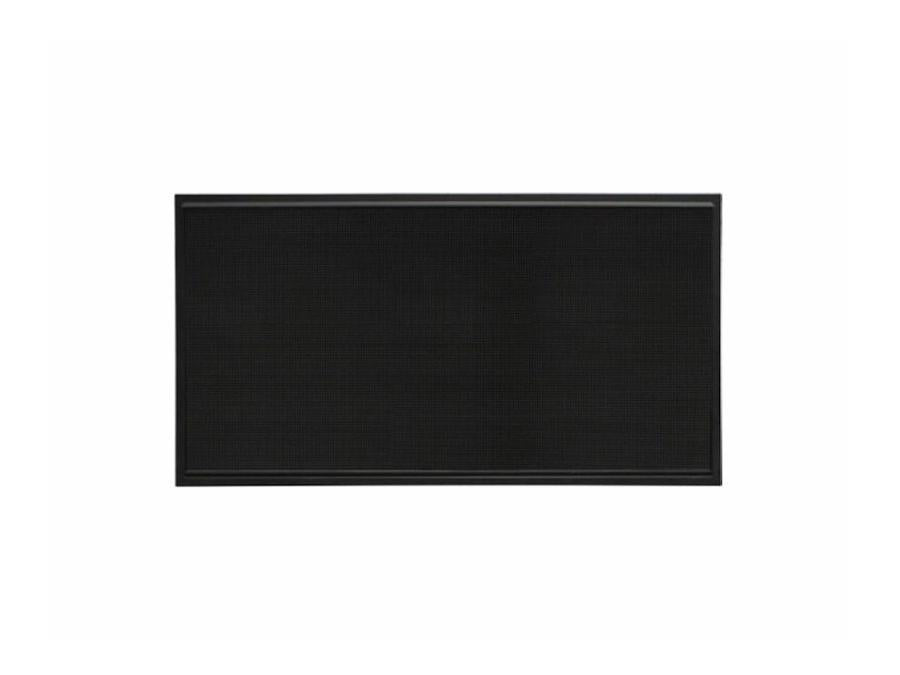

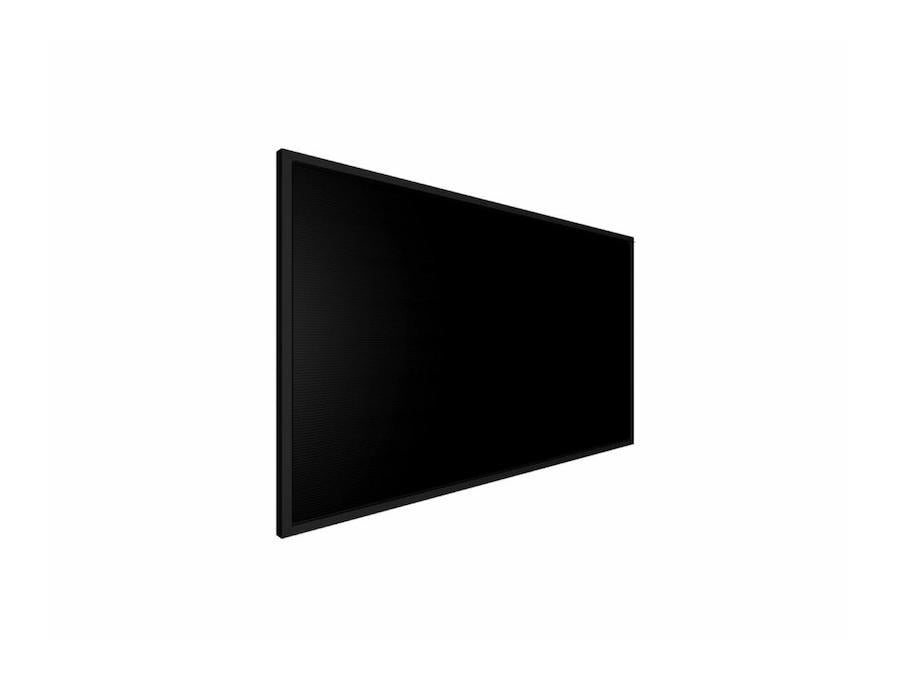

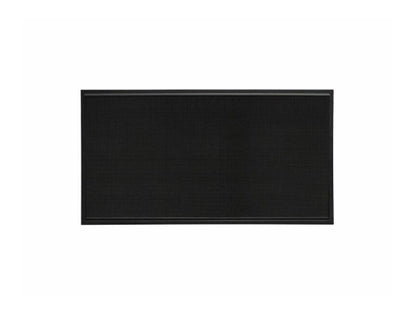

Samsung XPR-B 10mm Outdoor LED Double Face Display

VENDOR: SAMSUNG Mfg Part#: XPRB10DF0409 UPC#: 887276505893
1 3
Photo is for illustration purposes only. Actual product may be different.
$21,382.36
$21,382.36
Sale Sold out
MSRP: $28,642.00
Shipping calculated at checkout.
  • 10.416 mm pixel pitch for high-resolution visibility from a distance
  • 7000 nit brightness and 7000:1 contrast ratio for superior display performance in direct sunlight
  • Supports 281 trillion colors for rich and detailed image reproduction
  • Double face configuration with 216x72 resolution for wide-angle viewing and dual-direction communication
  • 7680 Hz visual refresh rate ensures smooth content playback
  • TAA compliant and operational across 100–240V, 50/60 Hz power standards

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Designed for outdoor use with high brightness and durability makes it ideal for 24/7 digital signage applications
  • Dual-sided display increases advertising visibility and ROI in high-traffic commercial environments
  • TAA compliance ensures suitability for government and regulated sector procurements

Product Overview

The Samsung XPR-B 10mm Outdoor LED Double Face Display is specifically engineered for outdoor visibility and commercial-grade digital signage. Its 10.416 mm pixel pitch, 7000 nit brightness, and support for 281 trillion colors deliver sharp, impactful visuals. The double-face configuration and 160°/90° viewing angles ensure maximum audience engagement. Operating at 1500W and designed to handle 100–240V, this TAA-compliant display is well-suited for diverse installation environments. With a 7680 Hz visual refresh rate, it supports modern multimedia needs for continuous outdoor performance.

Specifications

Product Overview
Type Outdoor LED Double Face Display
Model XPR-B
Manufacturer Part Number XPRB10DF0409
Display Technology Direct-View LED
Pixel Pitch 10.416 mm
Color Support 281 Trillion Colors
Image Contrast Ratio 7000:1
Visual Refresh Rate 7680 Hz
Frame Refresh Rate 60 Hz
Form Factor Double Face (4Hx9W), Configurable Cabinet
Native Resolution Per Face 216 x 72 pixels
Power Consumption (Operational) 1500 W
Power Requirements 100–240 V AC, 50/60 Hz

Wireless Features
Wireless Capability Optional via External Controller

Compliance & Origin
TAA Compliant Yes
Country of Origin Mexico
Certifications FCC Class A, CE, UL, RoHS

Advanced Security Features
Secure Access Password-Protected Login via Content Platform
Network Security Supports Encrypted Communication via External CMS Platform
Content Integrity Verified Uploads via Content Server (MagicINFO or 3rd Party)

Interfaces
Connectivity Interface Samsung Proprietary DirectView LED Input Controller
Supported Signals HDMI, DVI-D, DisplayPort, SDI (via external processor)
Control Interface Ethernet / RS232 / USB (via controller)

Physical & Environmental
Brightness 7000 nits
Viewing Angle (Horizontal/Vertical) 160° / 90°
Ingress Protection Rating IP65 (Front), IP54 (Rear)
Operating Temperature Range -30°C to 50°C (-22°F to 122°F)
Storage Temperature Range -40°C to 60°C (-40°F to 140°F)
Operating Humidity Range 10%–90% Non-Condensing
Cooling Method Active Cooling (Fan-assisted)
Mounting Options Custom Structure / Hanging / Pole Mounting Supported
Cabinet Material Aluminum
Cabinet Dimensions (W x H x D) Approximately 45.9" x 15.3" x 5.5" (per cabinet)
Cabinet Weight Approximately 50 kg (per cabinet)

Cloud Management & Licensing
Management Platform Samsung MagicINFO (Optional)
Remote Monitoring Supported via MagicINFO Server or Third-party CMS
Scheduling & Content Management Yes (via MagicINFO or External CMS)
Licensing Required MagicINFO License (Optional, Not Included)
