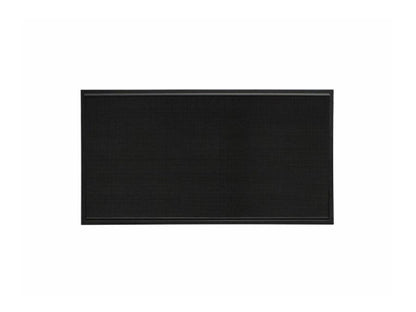

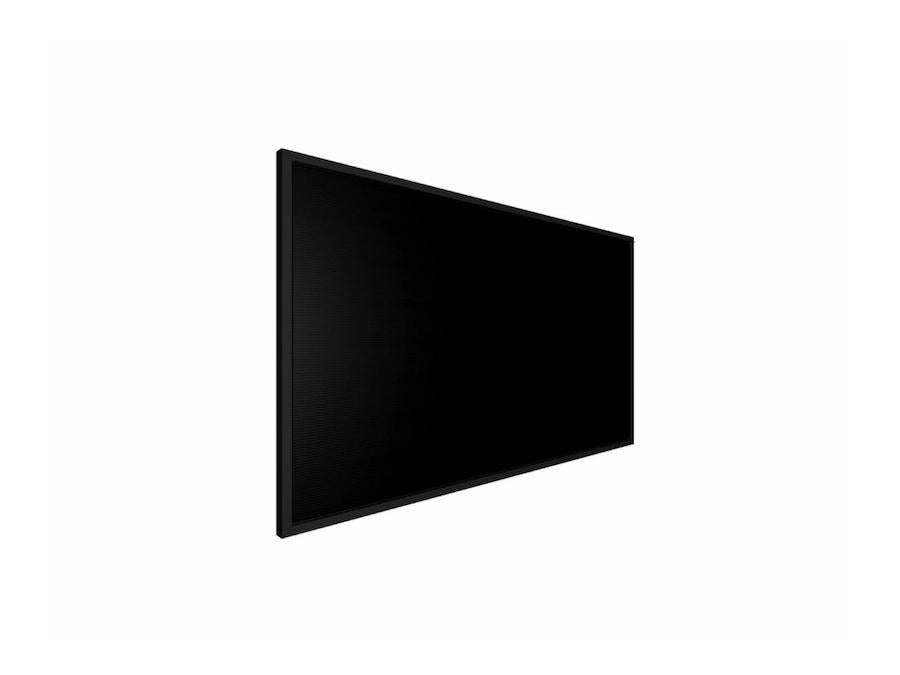

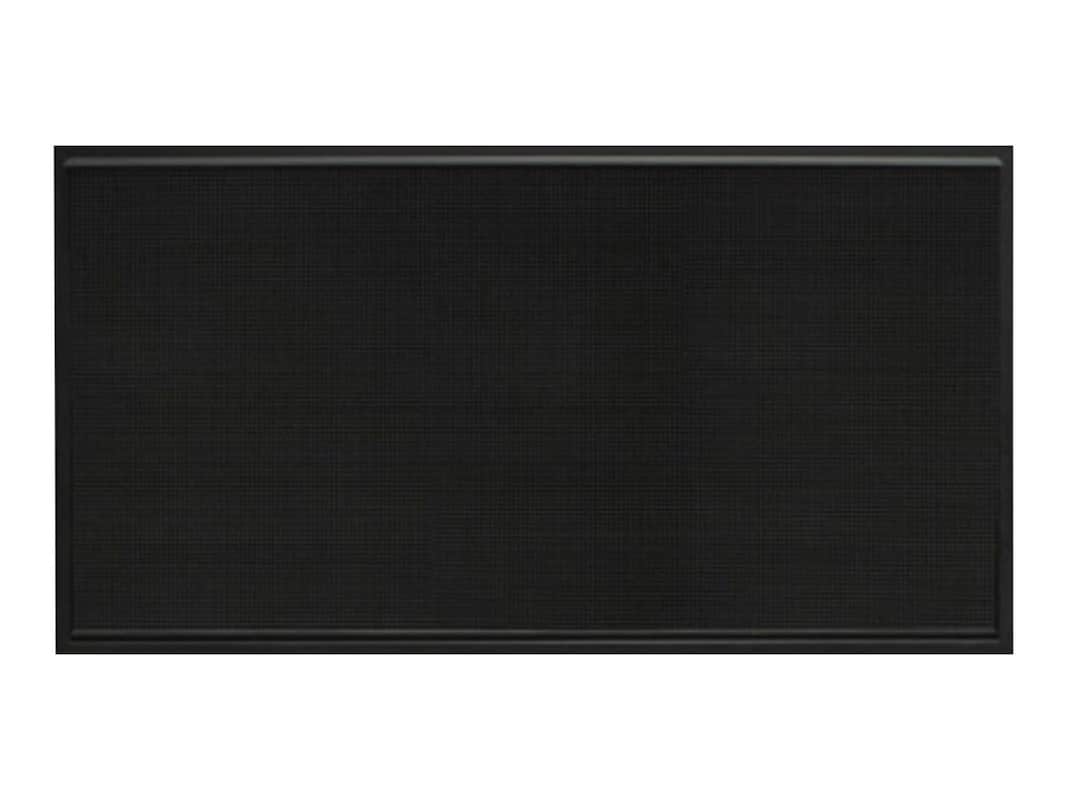

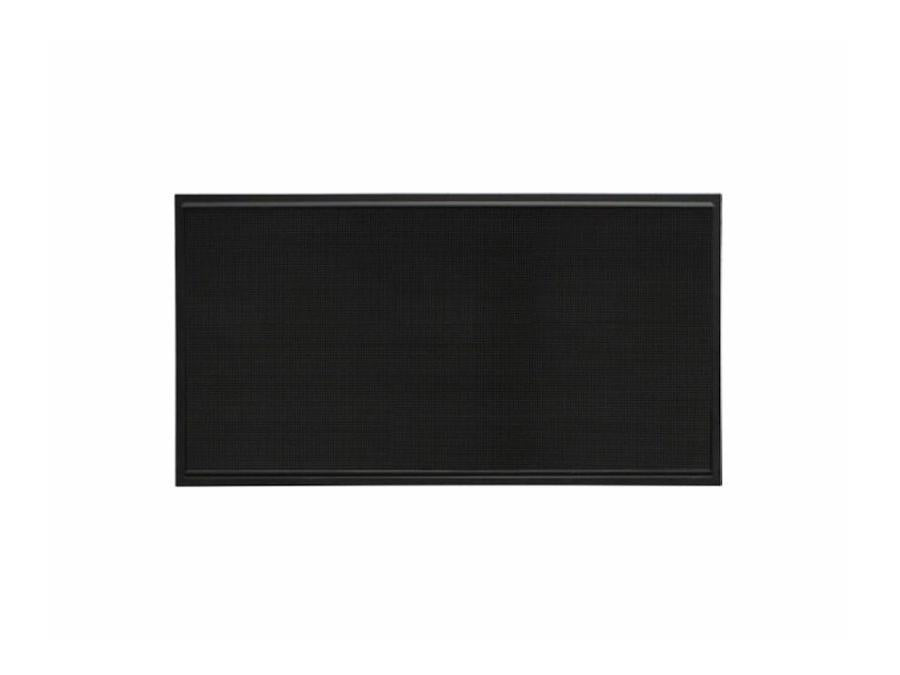

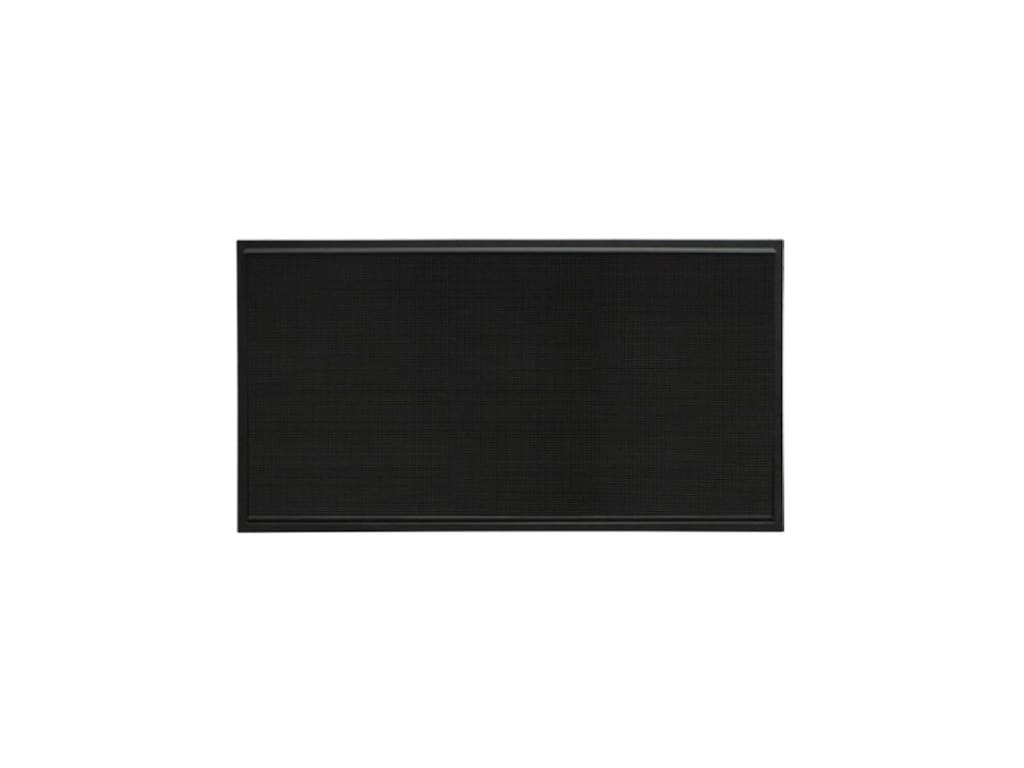

Samsung XPR-B 10mm Outdoor LED Single Face Display

VENDOR: SAMSUNG Mfg Part#: XPRB10SF0612 UPC#: 887276468556
1 2
Photo is for illustration purposes only. Actual product may be different.
$18,041.69
$18,041.69
Sale Sold out
MSRP: $24,082.00
Shipping calculated at checkout.
  • 10.416mm dot pitch enables clear visibility from distance
  • 7000 nit high brightness and 7000:1 contrast ratio for optimal outdoor readability
  • 281 trillion color support with LED backlight for vivid image reproduction
  • 7680 Hz visual refresh rate ensures smooth playback
  • TAA compliant and made in Mexico for institutional compatibility
  • Wide 160/90 viewing angles for maximum audience capture

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Engineered for outdoor use with high brightness and wide viewing angles, making it ideal for signage in bright environments.
  • TAA compliance and North American COO enhance eligibility for government and institutional procurement.
  • Large single-face 6Hx12W format with high refresh rate supports both static and dynamic advertising content effectively.

Product Overview

The Samsung XPR-B 10mm Outdoor LED Single Face is engineered for high-performance visual communication in demanding outdoor environments. Featuring a pixel pitch of 10.416mm and a 288x144 resolution, this large-format display ensures visuals are sharp even from long distances. With LED backlighting and 281 trillion color support, it offers superior color vibrancy. Its 7000 nit brightness and 7000:1 contrast ratio ensure visibility in direct sunlight, while a 7680 Hz refresh rate delivers ultra-smooth video playback.

Designed with a 160° horizontal and 90° vertical viewing angle, the display is optimal for public and commercial installations. It consumes 1500 watts during operation and supports dual-voltage input (100/240V, 50/60Hz). TAA compliance increases its suitability for institutional and government use, and its Mexican origin benefits North American integration. The display's single-face 6Hx12W configuration makes it ideal for signage applications in transit, retail, and civic environments.

Specifications

Product Overview
Product Type Outdoor LED Display
Model XPR-B
Manufacturer Part Number XPRB10SF0612
Form Factor Single Face 6Hx12W (288x144 resolution)
Display Technology LED Backlight
Color Support 281 Trillion Colors
Pixel Pitch 10.416 mm
Resolution 288 x 144
Refresh Rate 7680 Hz
Brightness 7000 nit
Contrast Ratio 7000:1
Viewing Angle (Horizontal) 160°
Viewing Angle (Vertical) 90°
Power Consumption (Operational) 1500 Watt
Power Requirements 100–240V AC, 50/60 Hz

Physical & Environmental
Display Configuration Single Face
Display Face Dimensions (WxH) Approx. 3.0m x 1.5m (varies based on cabinet)
Ingress Protection Rating IP65 (Outdoor Rated)
Operating Temperature Range -30°C to 50°C
Storage Temperature Range -40°C to 60°C
Relative Humidity Range (Operating) 10% to 90% (non-condensing)
Cooling Method Forced Air
Mounting Options Custom mounting solutions required (pole, wall, ceiling)

Cloud Management & Licensing
Remote Management Capable Yes (via third-party CMS or Samsung MagicInfo, if applicable)
Control Software Support Compatible with content management systems and display processors
Licensing Required Depends on CMS software used

Interfaces
Input Interface Type Unknown (varies by display controller)
Control Interface Ethernet / Serial (via controller)

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certification UL, FCC Class A, CE (region dependent)

Advanced Security Features
Secure Controller Access Yes (Credentials via control interface)
Content Authentication No native; CMS-dependent
Network Security Support Varies by controller (e.g., encryption, firewalls)
