| Type | Outdoor LED Digital Signage Display |
| Form Factor | Single-Face Modular Panel |
| Model | XPR-B |
| Manufacturer Part Number | XPRB16SF0309 |
| Display Technology | LED Backlight |
| Pixel Pitch | 16.666 mm |
| Resolution | 135 x 45 pixels |
| Image Contrast Ratio | 7500:1 |
| Brightness | 7500 nits |
| Color Support | 281 Trillion Colors |
| Visual Refresh Rate | 7680 Hz |
| Base Refresh Rate | 60 Hz |
| Viewing Angle (Horizontal/Vertical) | 160° / 90° |
| Power Consumption (Operational) | 330 W |
| Power Requirements | 100–240V AC, 50/60 Hz |

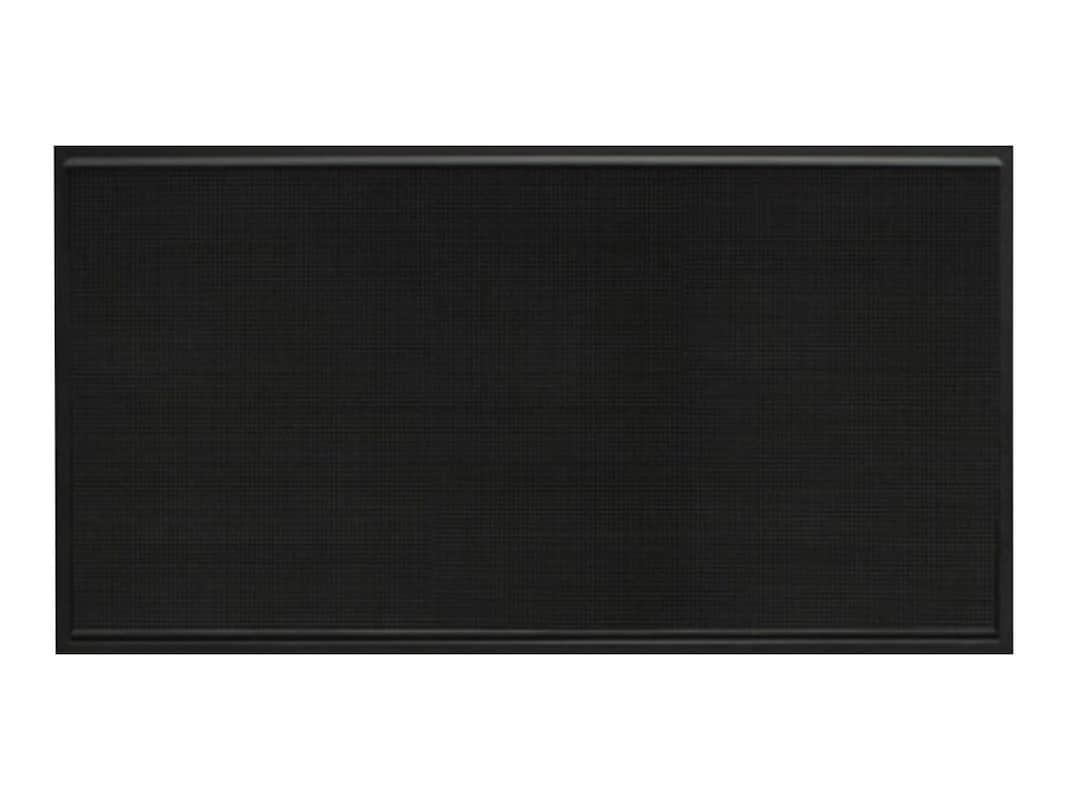

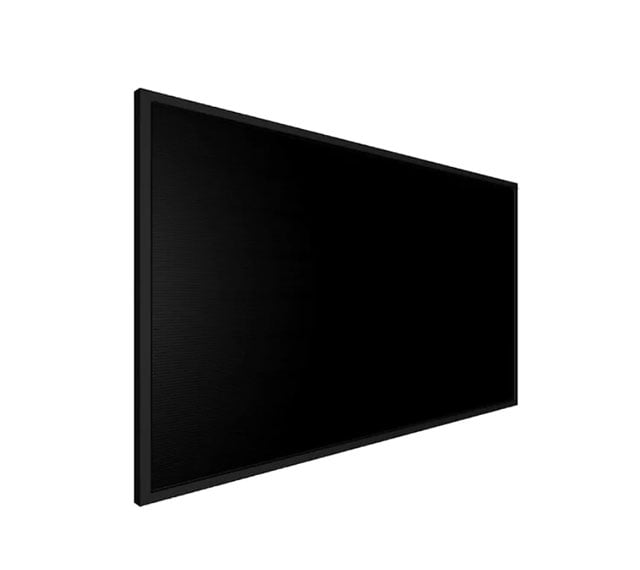

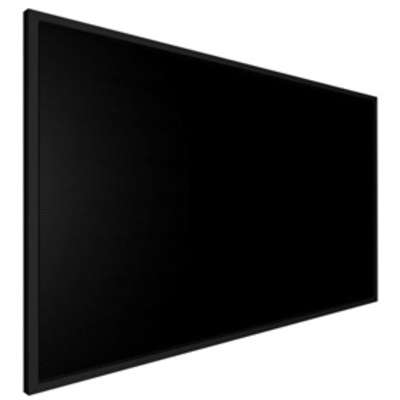

Samsung XPR-B 16mm Outdoor LED Display (135x45)
Photo is for illustration purposes only. Actual product may be different.
Regular price
$9,202.95
Regular price
Sale price
$9,202.95
Unit price
per
MSRP: $12,300.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 16.666 mm pixel pitch for long-range visibility
- 7500 nits brightness and 7500:1 contrast ratio for high outdoor legibility
- 281 trillion color support for accurate, vivid visuals
- 7680 Hz visual refresh rate and 60 Hz base refresh rate for flicker-free display
- 160°/90° wide viewing angle ensures broad audience engagement
- TAA compliant with 330W power draw and 100–240V input for operational flexibility
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Designed for outdoor use with ultra-high brightness and contrast, ideal for high-visibility signage.
- High refresh rates and expansive color depth ensure professional-grade video and content display quality.
- TAA compliance and efficient power use (330W) enhance suitability for government and commercial projects.
Product Overview

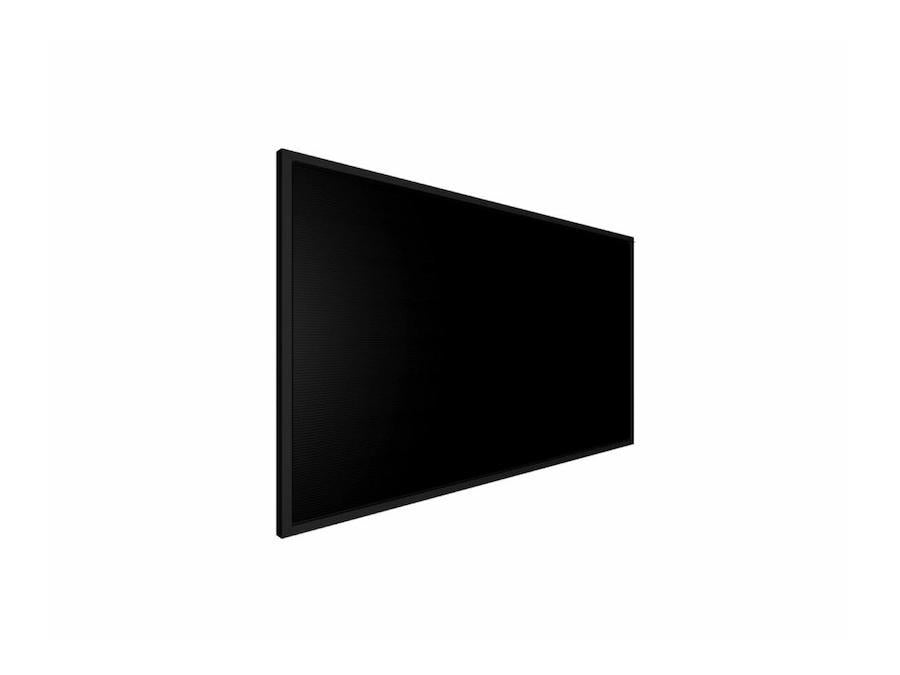

The Samsung XPR-B 16mm Outdoor LED Single Face display is engineered for vibrant and large-scale outdoor digital signage. With a resolution of 135x45 pixels on a 3Hx9W panel layout, this display delivers a powerful visual presence in commercial or public environments. Its 16.666 mm pixel pitch ensures excellent visibility from a distance, while the 7500-nit brightness and 7500:1 contrast ratio provide optimal legibility even in direct sunlight.
The unit supports 281 trillion colors and maintains clarity through a 7680 Hz visual refresh rate and 60 Hz base refresh rate, ensuring a sharp, flicker-free viewing experience. Designed for outdoor deployment, it is fully TAA compliant and offers a wide viewing angle of 160/90 degrees. Energy consumption is efficiently managed at 330 watts operational power, and it operates reliably on a 100–240V power supply, compatible with both 50/60 Hz grids.
Ideal for municipalities, transportation hubs, retail complexes, and event venues, this display delivers long-term value with its high-brightness and low-maintenance build. Its single-face design and weather-ready construction make it a smart choice for critical outdoor communication needs.
Specifications
Product Overview
Physical & Environmental
| Panel Layout | 3Hx9W |
| Display Dimensions (Resolution Grid) | 135 x 45 Pixels |
| Weather Resistance | Outdoor-rated (IP level not specified) |
| Operating Temperature Range | -30°C to 50°C |
| Humidity (Operating) | 10%–90% RH, non-condensing |
| Installation Type | Fixed Outdoor Installation |
| Mounting Options | Custom Frame / Mast / Wall (per site requirement) |
Cloud Management & Licensing
| Remote Management Capability | Supported via Samsung Content Management Software (MagicINFO) |
| MagicINFO Support | Yes (License sold separately) |
| Integrated Media Player | Supported (via S-Box or Optional External Player) |
| Control Method | Remote & Networked via LAN or optional controller |
Interfaces
| Input Signal Interfaces | Digital video input (Exact type not specified) |
| Control Interface | Proprietary/Manufacturer-Specific (Exact type not specified) |
Compliance & Origin
| Country of Origin | Mexico |
| TAA Compliant | Yes |
| Environmental Certifications | RoHS Compliant |
| Safety Standards | UL Certified |
| EMC Compliance | FCC Class A |
Advanced Security Features
| Content Encryption | MagicINFO Content Lock & Network Security Protocols |
| Access Control | Administrator Authentication Supported |
| Network Security | Supports HTTPS, Firewall Rules via Control Software |
