Samsung XPR-B 16mm Outdoor LED Display Single Face 4Hx9W

VENDOR: SAMSUNG Mfg Part#: XPRB16SF0409 UPC#: 887276505930
1 3
Photo is for illustration purposes only. Actual product may be different.
$10,595.03
$10,595.03
Sale Sold out
MSRP: $14,105.00
Shipping calculated at checkout.
  • 16.666 mm pixel pitch with 135x45 resolution for long-distance viewing
  • Brightness rated at 7500 nits for high visibility in daylight
  • 281 trillion color support for vivid image reproduction
  • 7680 Hz visual refresh rate reduces flicker and enhances motion clarity
  • TAA compliant and manufactured in Mexico for regulated environments
  • Power-efficient design with 330W operational consumption and 100–240V input range

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Exceptional 7500 nits brightness ensures high-impact visibility in full sunlight.
  • Ultra-smooth motion with a 7680 Hz refresh rate reduces flicker for video content.
  • TAA compliance and country-of-origin in Mexico align with public sector procurement standards.

Product Overview

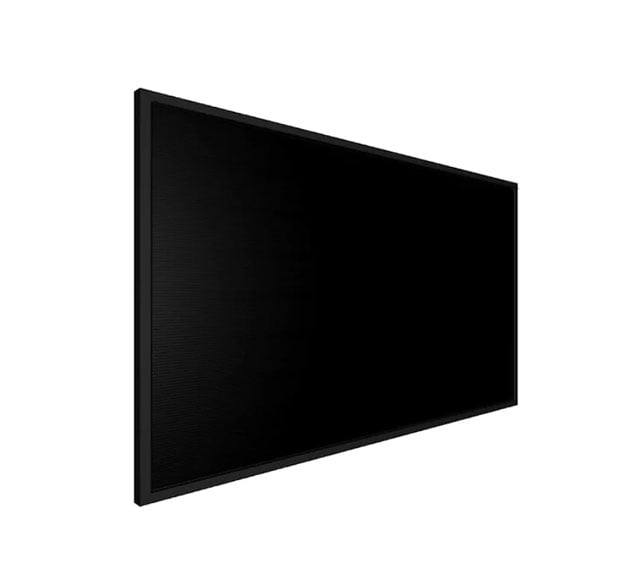

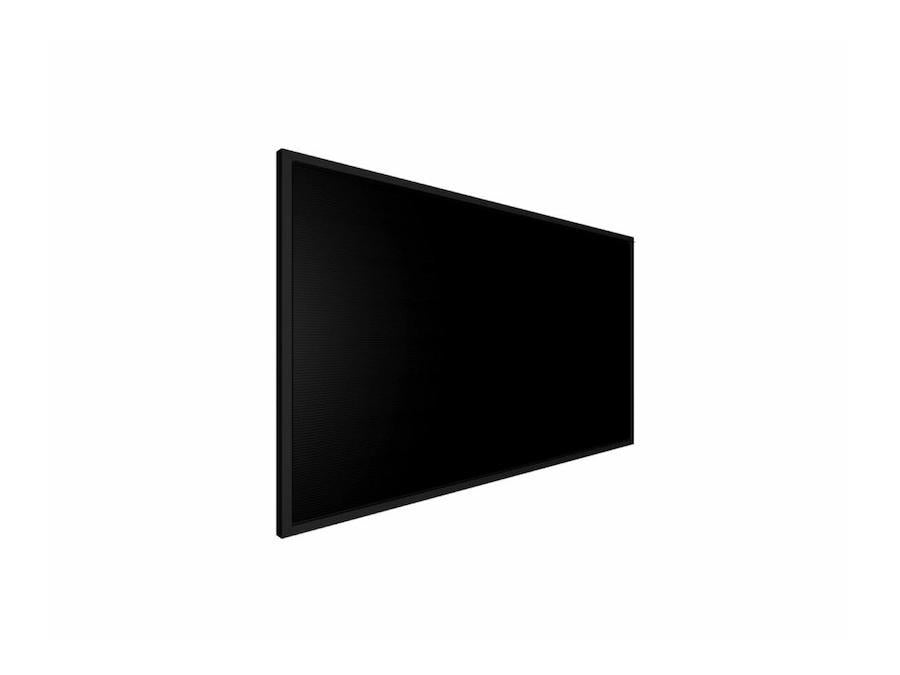

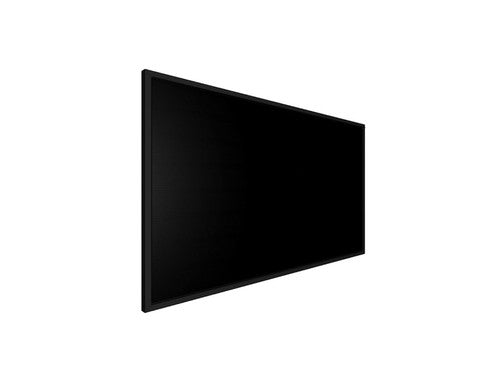

The Samsung XPR-B 16mm Outdoor LED Single Face Display is engineered for high-performance outdoor signage applications. With its 4Hx9W modular layout (135x45 resolution) and a pixel pitch of 16.666 mm, the display provides sharp, bright imagery over large viewing distances. Boasting a brightness output of 7500 nits and wide 160°/90° viewing angles, it ensures visibility even under strong daylight. Supporting 281 trillion colors and a 7680 Hz refresh rate, it delivers dynamic visuals with minimal flicker. With 330W operational power and TAA compliance, it's well-suited for commercial and government use alike.

Specifications

Product Overview
Manufacturer SAMSUNG
Model XPR-B
Product Type Outdoor LED Display
Form Factor Modular panel (4Hx9W layout)
Resolution 135 x 45 pixels
Pixel Pitch 16.666 mm
Brightness 7500 nit
Contrast Ratio 7500:1
Color Support 281 trillion colors
Visual Refresh Rate 7680 Hz
Typical Refresh Rate 60 Hz
Viewing Angle (Horizontal / Vertical) 160° / 90°
Display Technology Direct-View LED
Power Consumption (Operational) 330 Watts
Power Requirements 100–240 V AC, 50/60 Hz

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications FCC, CE, UL, RoHS

Advanced Security Features
Network Security Options Dependent on connected control system
Access Control Password-protected management interface
Data Encryption Optional, via secure controller systems

Interfaces
Video Input LED input control system (via compatible controller, not built-in)
Control Interface RJ45 Ethernet (via control system)
Data Interface Gigabit Ethernet (external controller required)

Physical & Environmental
Configuration Single Face Display
Panel Layout 4Hx9W modular layout
Ingress Protection Rating IP65 (front), IP54 (rear)
Operating Temperature -30°C to 50°C
Storage Temperature -40°C to 60°C
Operating Humidity 10% – 90% RH (non-condensing)
Cabinet Dimensions (W x H x D) Approximately 4.86 m x 1.62 m x 0.15 m
Mounting Type Custom outdoor mounting (wall or frame)
Weather Resistance Outdoor-rated

Cloud Management & Licensing
Cloud Management Compatible with Samsung MagicINFO (subscription-based)
Local Management Interface Via LED Controller Software
Remote Access Capability Yes (via external controller and network)
