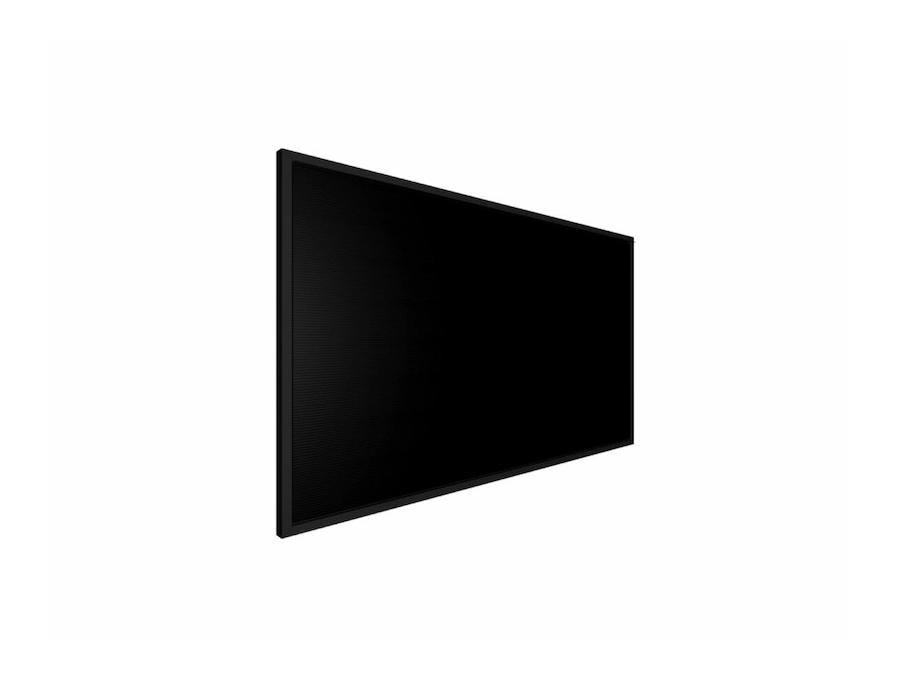

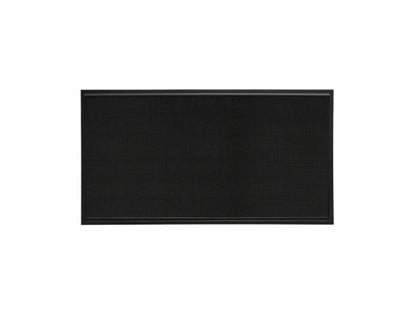

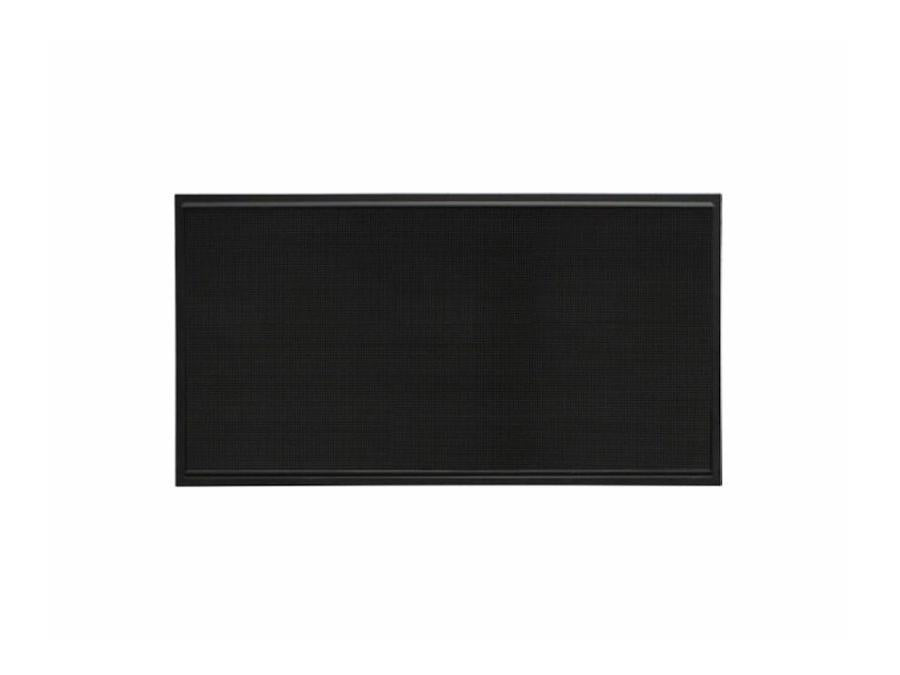

Samsung XPR-B 16mm Outdoor LED Double Face Display

VENDOR: SAMSUNG Mfg Part#: XPRB16DF0309 UPC#: 887276505961
1 3
Photo is for illustration purposes only. Actual product may be different.
$16,095.69
$16,095.69
Sale Sold out
MSRP: $21,589.00
Shipping calculated at checkout.
  • - 16.666 mm pixel pitch for detailed large-format output
  • - Double-face display configuration with 135x45 resolution per side
  • - High brightness of 7500 nits for clear visibility in daylight
  • - Supports 281 trillion colors for vibrant image reproduction
  • - Visual refresh rate of 7680 Hz ensures smooth video playback
  • - TAA-compliant and built in Mexico for procurement flexibility

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Designed for maximum impact with ultra-high brightness and rich color support, making it ideal for outdoor digital signage.
  • - Dual-sided display increases messaging visibility and audience engagement, enhancing ROI for commercial advertisers.
  • - Built to TAA standards and manufactured in Mexico, aligning with compliance and regional sourcing requirements.

Product Overview

The Samsung XPR-B 16mm Outdoor LED Double Face Display is a high-performance large-format signage solution engineered for outdoor visibility. It features a pixel pitch of 16.666 mm, resolution of 135x45 pixels per face, and a brightness level of 7500 nits, ensuring striking clarity in sunlight. This display also boasts 281 trillion color support and a 7680 Hz visual refresh rate for smooth, vivid content playback. With TAA compliance and double-face design, it delivers messaging in both directions while adhering to procurement standards. Power-efficient and regionally compatible, it’s ideal for roadside, commercial, or public installations.

Specifications

Product Overview
Manufacturer Samsung
Model XPR-B
Product Type Outdoor LED Digital Signage Display
Form Factor Double Face (Front and Back Panels)
Pixel Pitch 16.666 mm
Resolution Per Face 135 x 45 pixels
Brightness 7500 nit
Visual Refresh Rate 7680 Hz
Color Support 281 Trillion Colors
Image Contrast Ratio 7500:1
Viewing Angle 160° Horizontal / 90° Vertical
Power Consumption (Operational) 750 W
Power Requirement 100/240V AC, 50/60 Hz

Wireless Features
Wireless Capability Optional with external controller or MagicINFO Wi-Fi module

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications FCC, UL, RoHS, CE
Environmental Compliance RoHS Compliant

Advanced Security Features
User Access Control Yes, Role-Based Login (via MagicINFO)
Secure Content Transmission SSL/TLS Encryption with MagicINFO server

Interfaces
Display Interface Digital (Proprietary LED Controller Interface)
Control Interface RJ-45 Ethernet (Data Input)
Video Input Format Support Custom via LED Controller
Supported Control Protocols Samsung MagicINFO, S-box controller (optional integration)

Physical & Environmental
Display Dimensions (Per Face) Approx. 3H x 9W pixel matrix; physical size varies by enclosure
Operating Temperature Range -30°C to 50°C
Storage Temperature Range -40°C to 60°C
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Ingress Protection Rating IP65 (Front), IP45 (Rear)
Mounting Options Wall, Pole, or Custom Frame Mountable
Enclosure Type Outdoor Weatherproof Casing

Cloud Management & Licensing
Remote Management Samsung MagicINFO (optional)
Included Cloud Platform Requires MagicINFO License
Centralized Scheduling Support Yes (via MagicINFO)
Content Delivery Network (CDN) Support Yes, with MagicINFO Server Integration
