| Manufacturer | Samsung |
| Model | XPR-B |
| Type | Outdoor LED Display |
| Form Factor | Double Face 4Hx8W Cabinet |
| Pixel Pitch | 16.666 mm |
| Resolution per Face | 120 x 60 |
| Color Support | 281 Trillion Colors |
| Brightness | 7500 nits |
| Visual Refresh Rate | 7680 Hz |
| Contrast Ratio | 7500:1 |
| Viewing Angle (H/V) | 160° / 90° |
| Weight | |
| Power Consumption (Operational) | 750 Watts |
| Power Requirements | 100–240 V AC, 50/60 Hz |

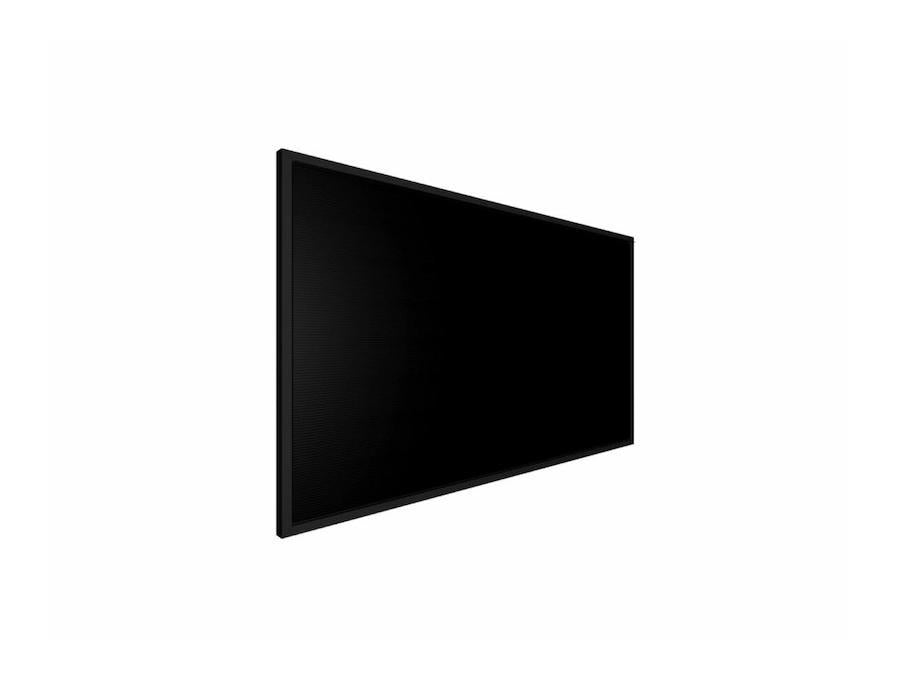

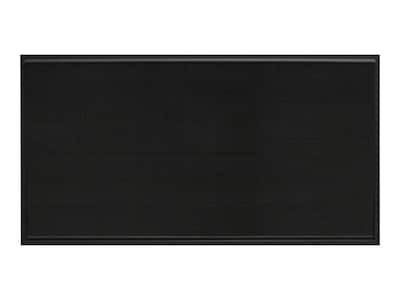

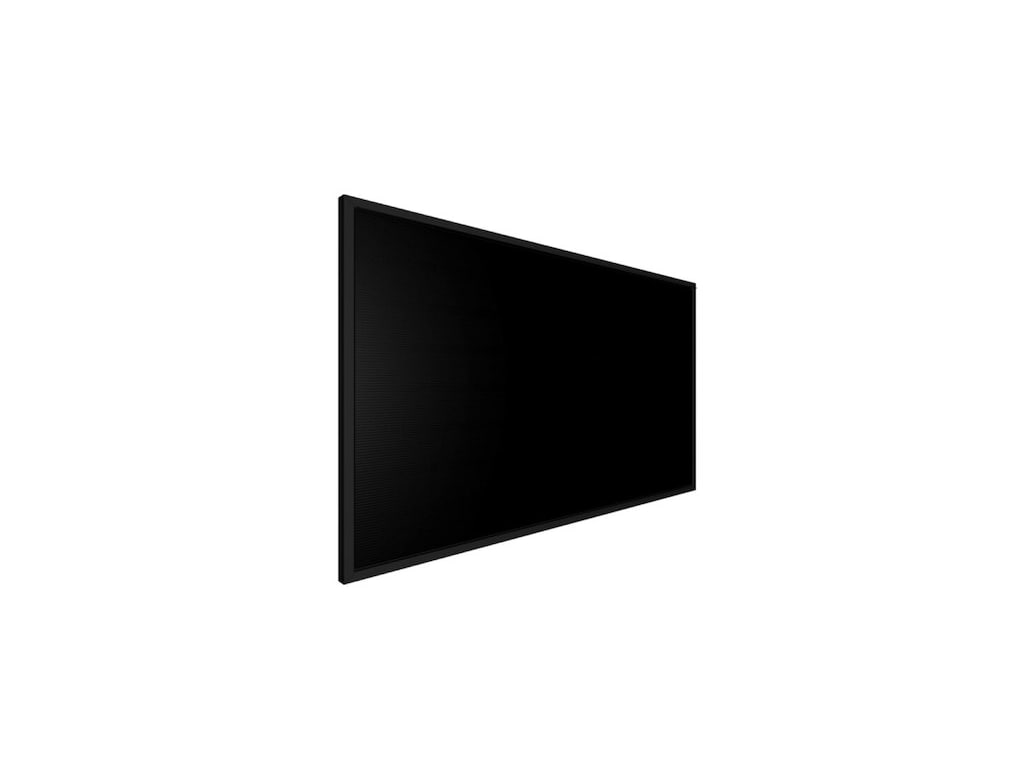

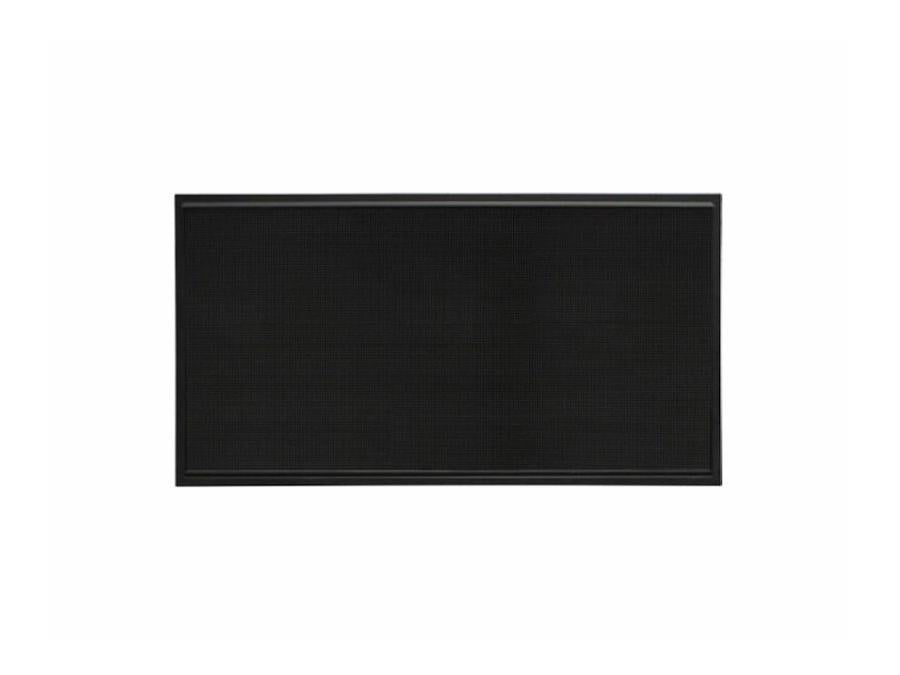

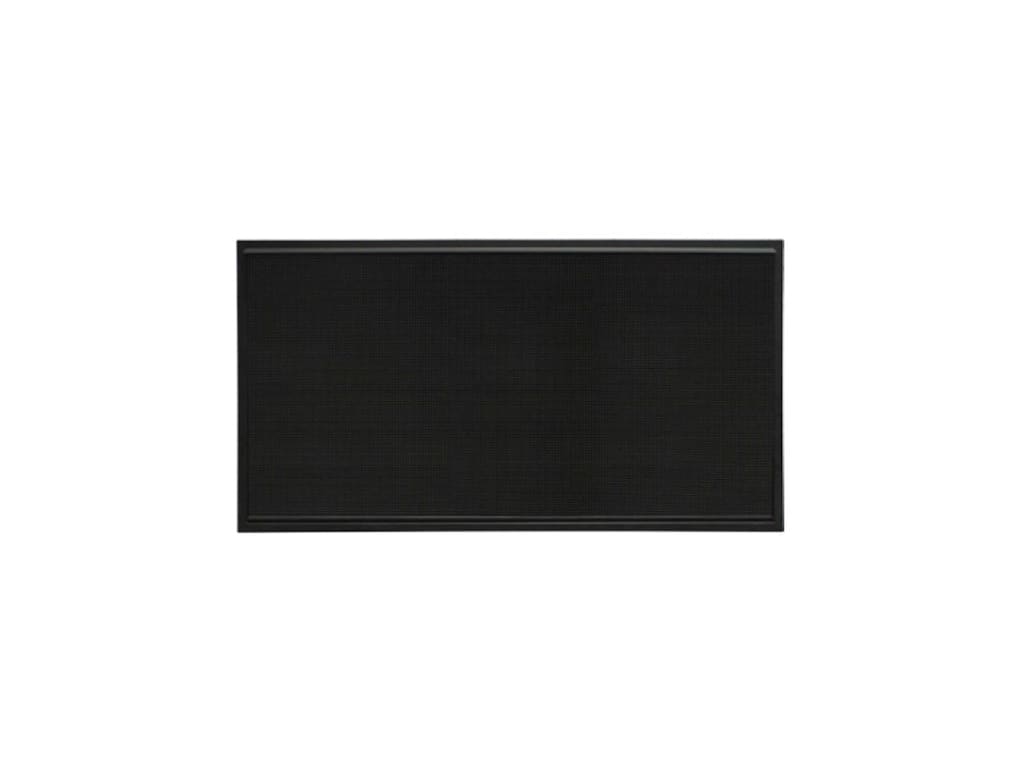

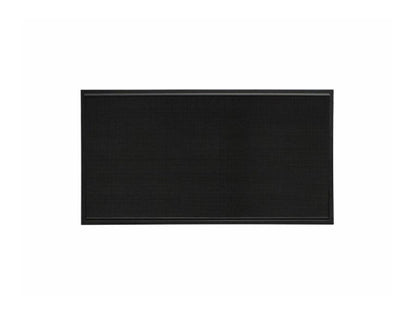

Samsung XPR-B 16mm Outdoor LED Double Face Display
Photo is for illustration purposes only. Actual product may be different.
Regular price
$16,351.02
Regular price
Sale price
$16,351.02
Unit price
per
MSRP: $21,933.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Display type: LCD with LED backlighting for enhanced efficiency
- Extremely high brightness rating of 7500 nits for outdoor visibility
- 16.666mm pixel pitch and 120x60 resolution for long-distance clarity
- 281 trillion color support for vibrant and accurate imagery
- 7680 Hz visual refresh rate to reduce motion blur and flicker
- 160/90 viewing angle and TAA compliance for regulated public deployments
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Double-face configuration maximizes exposure in high-traffic outdoor locations.
- High brightness and wide color gamut ensure superior performance in sunlight-heavy environments.
- TAA compliance adds procurement flexibility for government or public sector projects.
Product Overview
The Samsung XPR-B 16mm Outdoor LED Double Face is a high-performance display designed for challenging outdoor environments. Featuring a 16.666mm pixel pitch and double face 4Hx8W (120x60 resolution), it achieves superb long-range visibility and high-impact content delivery. The 7500 nits brightness and 281 trillion color support provide sharp, lifelike visuals viewable even in direct sunlight. A 7680 Hz refresh rate minimizes image tearing, while the 160° horizontal viewing angle ensures clear visibility from different vantage points. Designed with TAA compliance and 750 watt power usage, the display blends regulatory suitability with installation flexibility. Ideal for public or commercial outdoor signage, this unit delivers exceptional reliability and visual performance.
Specifications
Product Overview
Wireless Features
| Wi-Fi Connectivity | |
| Wireless Standards | |
| Bluetooth Support |
Compliance & Origin
| Country of Origin | Mexico |
| TAA Compliant | Yes |
| Certifications | ETL, FCC, CE, RoHS |
Advanced Security Features
| Security Protocols | Password-Protected Access (via Controller) |
| Data Encryption | |
| Content Protection | Controlled via MagicINFO Platform |
| Network Security | Firewall and IP Access List (via Controller) |
Interfaces
| Input Interface | Proprietary Samsung S-Box Interface |
| Supported Media Sources | External Media Player / Controller |
| Connectivity Options | |
| Control Interface | RJ-45 / Serial / USB (via Controller) |
Physical & Environmental
| Dimensions (Per Cabinet) | |
| Installation Type | Fixed Outdoor Installation |
| Operating Temperature | -30°C to 50°C |
| Storage Temperature | -40°C to 60°C |
| Operating Humidity | 10% - 90% (non-condensing) |
| Ingress Protection Rating | IP65 (Front), IP45 (Rear) |
| Cabinet Material | Aluminum |
| Cooling Method | Fan-Based Active Cooling |
Cloud Management & Licensing
| Management Interface | Samsung MagicINFO / S-Box Controller |
| Remote Monitoring | Yes (via MagicINFO or Smart LED Signage software) |
| Software Licensing Included | MagicINFO License (varies by deployment) |
| Content Scheduling | Yes |
