Products Display Screens & Monitors SAMSUNG XPR-B 16mm Outdoor ...

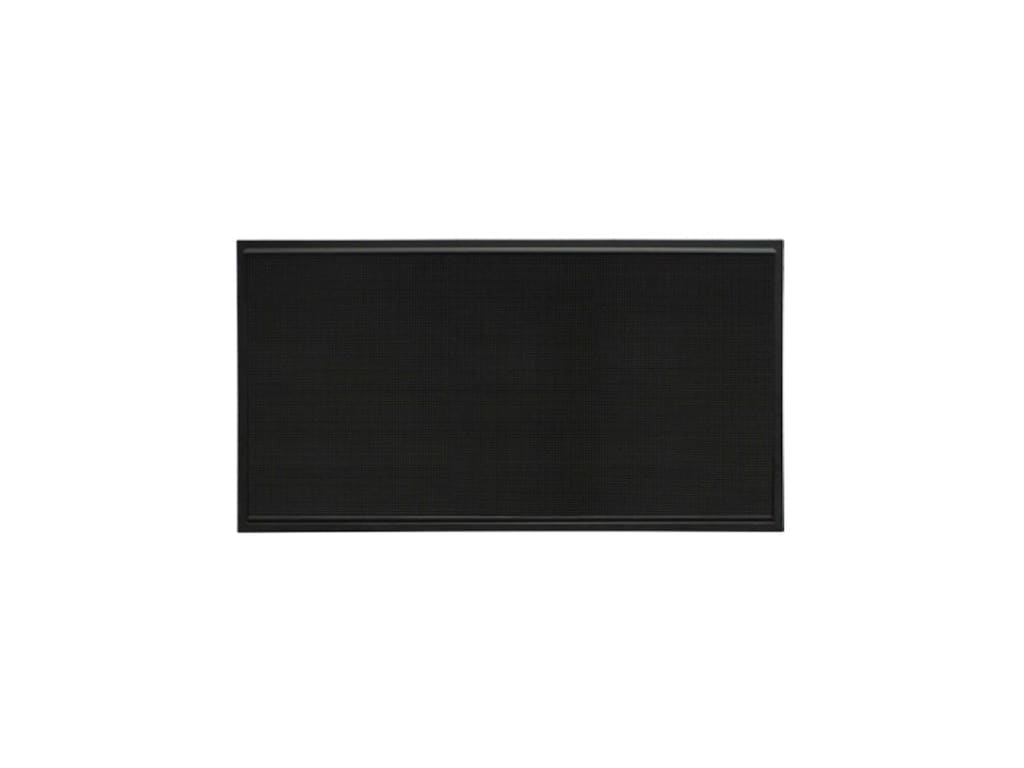

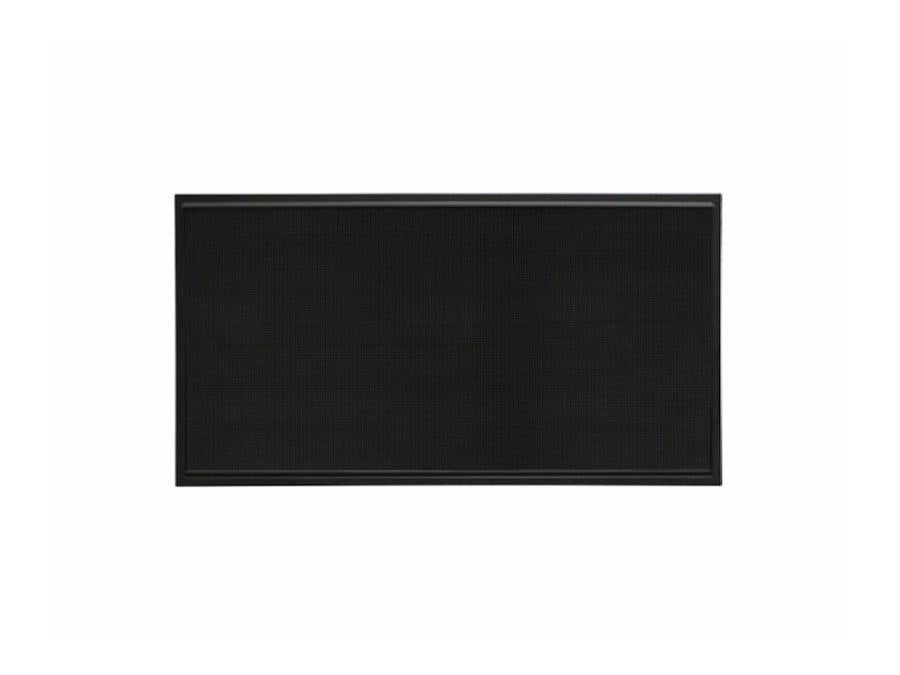

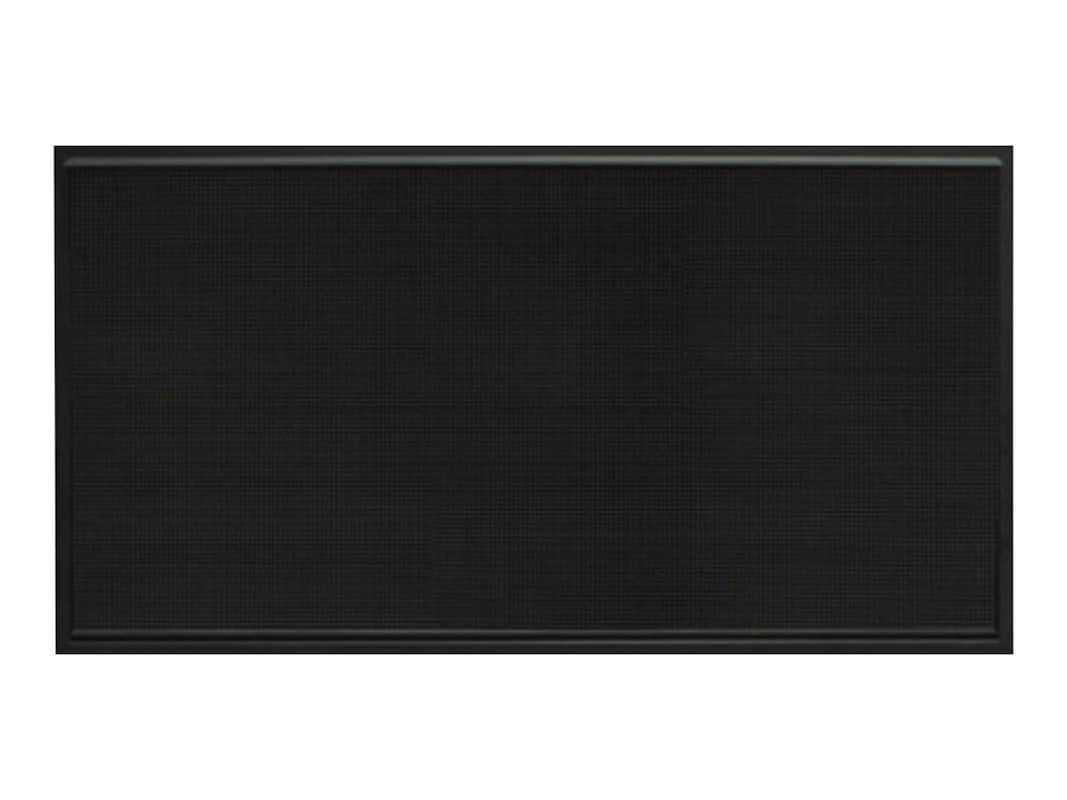

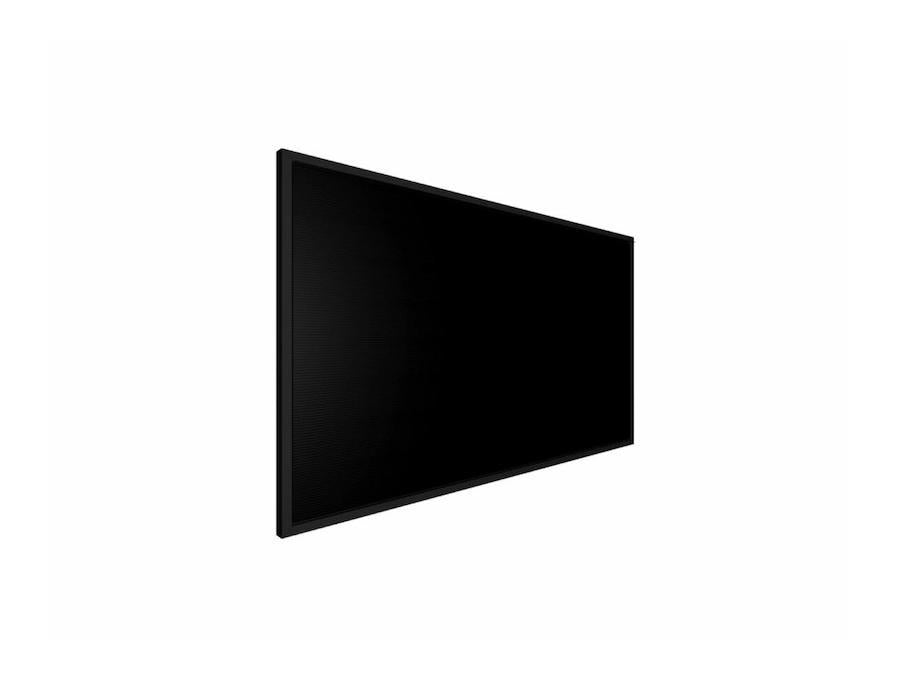

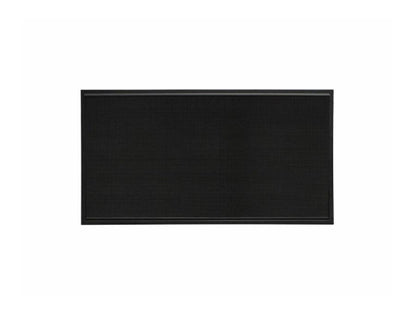

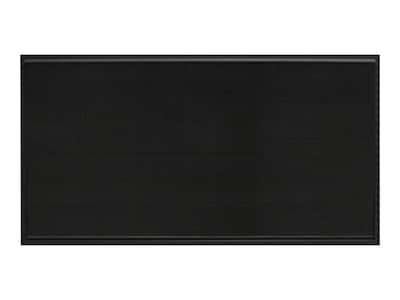

SAMSUNG XPR-B 16mm Outdoor LED Double Face Display

VENDOR: SAMSUNG Mfg Part#: XPRB16DF0409 UPC#: 887276505978
1 3
Photo is for illustration purposes only. Actual product may be different.
$18,253.76
$18,253.76
Sale Sold out
MSRP: $24,426.00
Shipping calculated at checkout.
  • 16.666 mm pixel pitch with 4Hx9W (216x72 resolution) double-face design
  • LED backlight with 281 trillion color support for vivid imagery
  • Brightness rated at 7500 nits and 7500:1 contrast ratio for outdoor visibility
  • 7680 Hz visual refresh rate for smooth motion visuals
  • Wide 160° horizontal and 90° vertical viewing angles
  • Power-efficient at 750 watts with 100/240V, 50/60 Hz compatibility

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for maximum visibility with ultra-bright 7500 nit output and 7500:1 contrast ratio
  • Double-faced format ensures message exposure from multiple viewing directions, ideal for high-traffic outdoor applications
  • TAA-compliant and manufactured in Mexico, supporting procurement standards for government and institutional buyers

Product Overview

The SAMSUNG XPR-B 16MM Outdoor LED Double Face Display provides powerful, high-resolution signage for outdoor environments. With a 16.666 mm pixel pitch and a sizable 4Hx9W configuration (216x72 resolution), it ensures content is legible from a distance while maintaining vibrant image clarity. Backed by LED technology and capable of 281 trillion colors, the display supports a visual refresh rate of 7680 Hz and a display refresh rate of 60 Hz. Its contrast ratio of 7500:1 and a brightness level of 7500 nits make it ideal for handling direct sunlight. The unit is also double-faced, offering dual-sided visibility for maximum exposure in public spaces.

Engineered for reliability and efficiency, the display consumes 750 watts during operation and is compatible with standard 100–240V, 50/60Hz power inputs. The wide viewing angles (160° horizontal and 90° vertical) support varied sightlines. TAA compliance ensures it's suitable for government procurement. Manufactured in Mexico, the display also meets international standards for quality and performance.

Specifications

Product Overview
Manufacturer SAMSUNG
Model XPR-B
Product Type Outdoor LED Display
Form Factor Double Face (Two-sided)
Pixel Pitch 16.666 mm
Resolution 216 x 72
Display Size Configuration 4Hx9W
Power Consumption (Operational) 750 Watts
Power Input Requirements 100–240V AC, 50/60 Hz

Wireless Features
Wireless Connectivity

Display Characteristics
Display Technology LED Backlit
Display Type LED Signage Display
Color Support 281 Trillion Colors
Brightness 7500 nits
Contrast Ratio 7500:1
Visual Refresh Rate 7680 Hz
Display Refresh Rate 60 Hz

Cloud Management & Licensing
Cloud Management Interface Samsung MagicINFO (availability may vary by version)
License Required Yes, for MagicINFO Premium features
Cloud-Based Content Distribution Supported via MagicINFO
Remote Monitoring Yes, with management software

Interfaces
Interface Type Video/Data Interface (specified per system, may vary)
Control Interface Remote Control Interface (Exact protocol varies)

Physical & Environmental
Viewing Angle (Horizontal) 160°
Viewing Angle (Vertical) 90°
Mounting Type Outdoor Structure Mountable
Display Orientation Landscape/Fixed
Operational Environment Outdoor (Weather Resistant)
Environmental Protection Weather-resistant housing, IP rating varies

Compliance & Origin
TAA Compliant Yes
Country of Origin Mexico
Certifications FCC, CE (Typical for Samsung Industrial Displays)

Advanced Security Features
Tamper Detection Hardware-level secure access (case-dependent)
Access Controls Administrator access and user role levels
Network Security Supports secure network protocols via MagicINFO
Firmware Updates Secure and encrypted updates supported
Failover Protection Supported via MagicINFO failover features
