| Type | Outdoor LED Display |
| Form Factor | Double Face (Dual-Sided) |
| Pixel Pitch | 16.666 mm |
| Resolution | 180 x 90 per face |
| Brightness | 7500 nit |
| Color Support | 281 Trillion Colors |
| Contrast Ratio | 7500:1 |
| Refresh Rate | 7680 Hz visual, 60 Hz input |
| Display Layout | 6Hx12W |
| Power Consumption (Operational) | 330 W |
| Power Requirements | 100–240 V AC, 50/60 Hz |

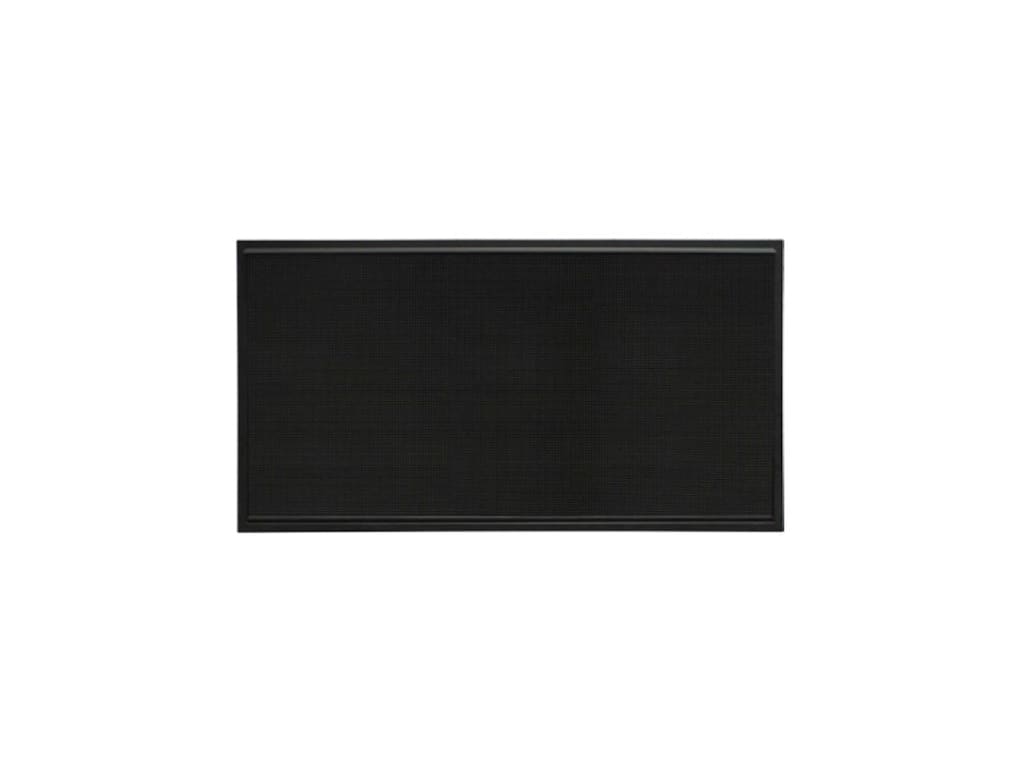

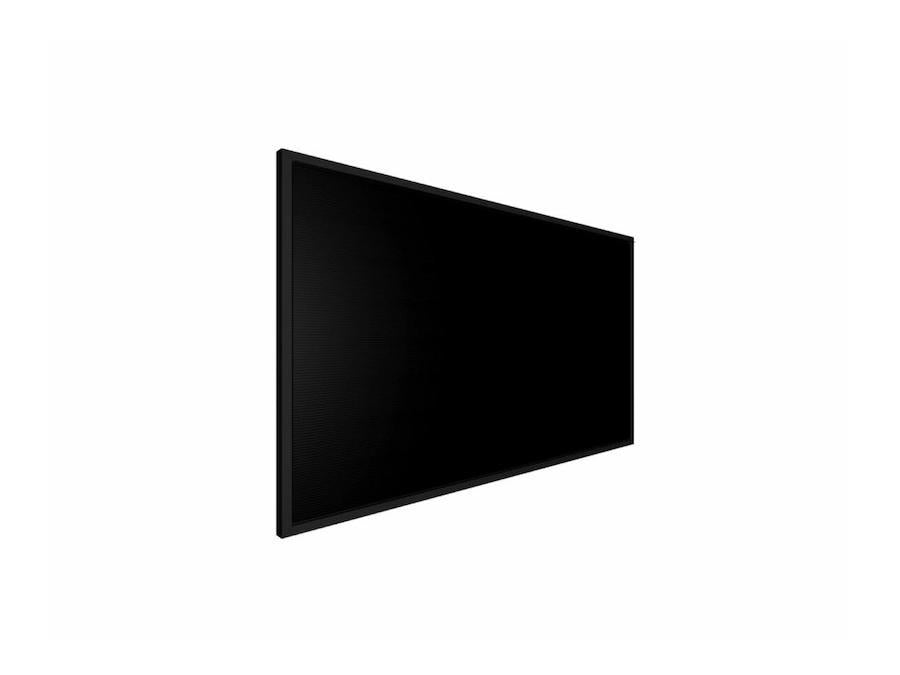

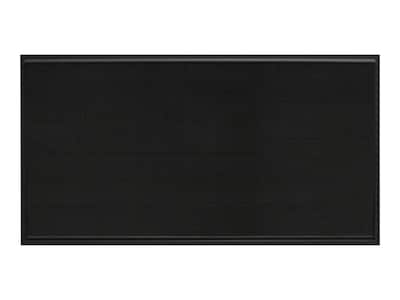

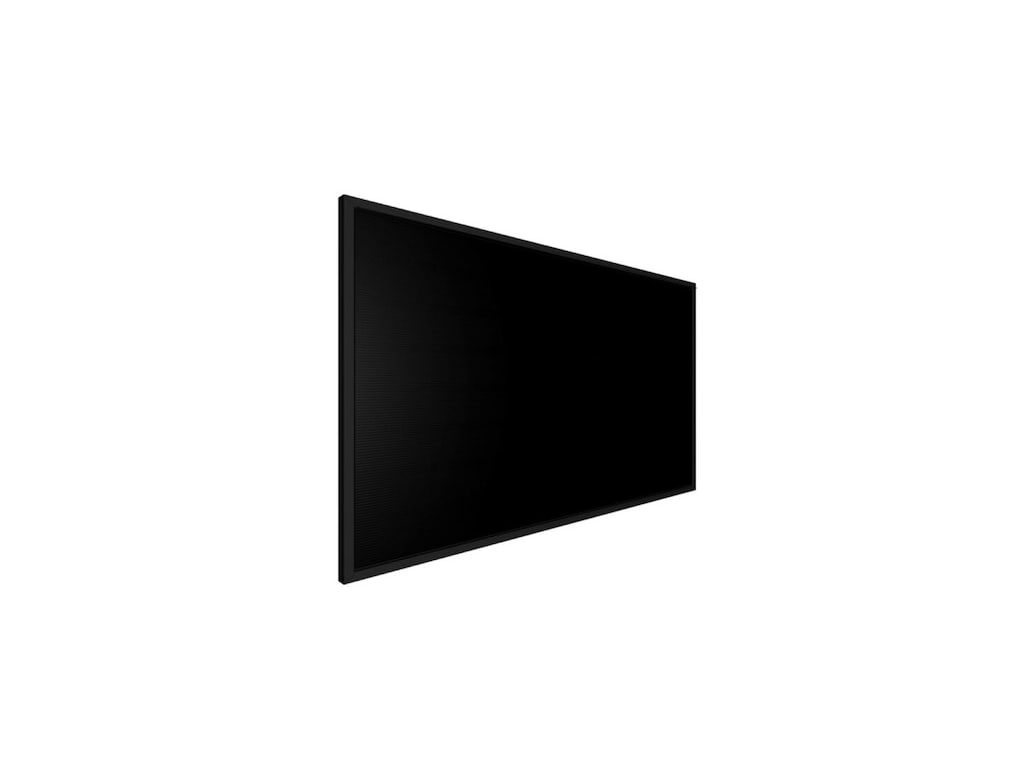

Samsung XPR-B 16mm Outdoor LED Double Face Display
Photo is for illustration purposes only. Actual product may be different.
Regular price
$28,253.33
Regular price
Sale price
$28,253.33
Unit price
per
MSRP: $37,844.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Pixel pitch of 16.666mm provides a balance of resolution and cost efficiency
- 7500 nit brightness rating ensures high visibility in daylight conditions
- Double Face 6Hx12W format with 180x90 resolution maximizes outdoor engagement
- Supports 281 trillion colors for richly saturated visuals
- Visual refresh rate of 7680Hz delivers smooth, flicker-free motion
- TAA-compliant, suitable for government and regulatory-sensitive applications
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Double-sided LED configuration expands audience reach and increases ROI in high-traffic areas
- Ultra-high brightness and contrast ratio make it highly suitable for outdoor environments with challenging lighting
- TAA-compliance and broad voltage support ensure compatibility with government and international deployments
Product Overview
The Samsung XPR-B 16mm Outdoor LED Double Face Display is built to provide bright, high-contrast visuals in outdoor environments. It offers a 6Hx12W layout and 180x90 resolution for readable content over long distances. The 7500 nit brightness and 281 trillion color support ensure vibrant imagery even in direct sunlight, while its 7680Hz refresh rate delivers smooth motion. The double-sided design maximizes visibility, and with TAA compliance and operational efficiency at only 330 watts, it's built for commercial-grade reliability and performance.
Specifications
Product Overview
Wireless Features
| Wireless Control Capability | Optional via external controller |
Compliance & Origin
| TAA Compliant | Yes |
| Country of Origin | Mexico |
| Certifications | FCC Class A, CE, ETL, UL |
| Environmental Compliance | RoHS |
Advanced Security Features
| Password Protection | Yes (via controller) |
| Network File Security | Yes (depends on CMS software) |
| Data Encryption | Available through optional management platform |
Interfaces
| Input Interface | HDMI, DVI, DisplayPort (via scaler/controller, not built-in) |
| Control Interface | Ethernet (via controller) |
| Remote Management Port | Ethernet (controller-dependent) |
| Supported Input Video Formats | Up to 1080p |
| Control Protocols | SNMP, TCP/IP (with optional controller) |
Physical & Environmental
| Mounting Type | Pole- or Structure-mounted |
| Enclosure Type | Weatherproof Outdoor Enclosure |
| Weather Protection | Yes (Outdoor Rated) |
| Operating Temperature Range | -30°C to +50°C |
| Operating Humidity Range | 10% to 90% RH (non-condensing) |
| Viewing Angle (H/V) | 160° / 90° |
| Service Access | Front- and Rear-serviceable (varies by configuration) |
| Cabinet Material | Aluminum |
Cloud Management & Licensing
| Cloud Management Platform | Samsung MagicInfo (optional) |
| Licensing Requirements | MagicInfo license required for cloud CMS |
| Included Software | Basic control software (additional CMS optional) |
| Remote Monitoring | Supported (with external controller and software) |
