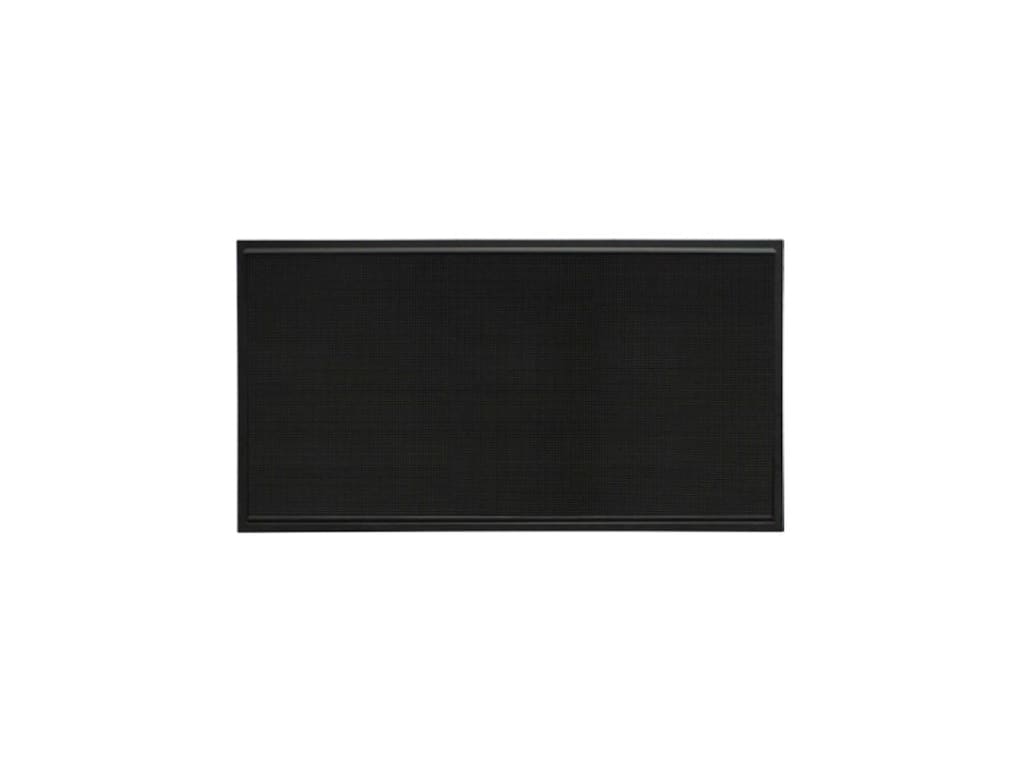

SAMSUNG XPR-B 16mm Outdoor LED Single Face Display

VENDOR: SAMSUNG Mfg Part#: LHX16TTB6C0 UPC#: 887276580463
1 3
Photo is for illustration purposes only. Actual product may be different.
$19,218.18
$19,218.18
Sale Sold out
MSRP: $25,678.59
Shipping calculated at checkout.
  • 16mm LED pixel pitch for effective outdoor visibility
  • 180x90 resolution suitable for signage messaging
  • 6hx12w configuration providing large format display support
  • Manufactured in Mexico for nearshore logistics efficiency
  • TAA compliant for use in government and enterprise deployments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Qualifies for government and public sector projects due to TAA compliance
  • Optimized for outdoor performance with LED display technology
  • Manufactured in Mexico, supporting reduced lead times and regional support

Product Overview

The SAMSUNG XPR-B 16mm Outdoor LED Single Face Display is engineered for outdoor digital signage visibility and durability. Configured in a 6hx12w module with 180x90 resolution, it leverages 16mm LED pixel pitch to broadcast content effectively in various lighting environments. TAA compliant and manufactured in Mexico, it meets U.S. government sourcing criteria and ensures regionally stable supply. While lacking some technical data such as size and refresh rate, its robust build and Samsung technology make it a solid choice for signage ecosystems requiring reliable outdoor display performance.

Specifications

Product Overview
Product Type Outdoor LED Digital Signage Display
Model Series XPR-B
LED Pixel Pitch 16 mm
Module Configuration 6h x 12w
Resolution 180 x 90 pixels
Face Type Single Face
TAA Compliant Yes
Power Supply 100-240V AC, 50/60Hz
Power Consumption (Max) 680 W/m²
Power Consumption (Typical) 227 W/m²
Brightness Up to 7,500 nits
Color Capability 16 bit color depth

Wireless Features
Wireless Capability
Bluetooth
Wi-Fi

Compliance & Origin
Country of Origin Mexico
Certifications FCC Class A, CE, RoHS

Advanced Security Features
Access Control Password-protected access and user roles
Data Encryption Supported within external management platform
Network Security Support Firewall and VLAN network segmentation (via external controller)

Interfaces
Input Interface HDMI, DVI, DisplayPort via S-Box or Controller
Control Interface Ethernet (RJ-45)
Data Transmission CAT5/6 or Fiber (with controller)

Physical & Environmental
Cabinet Dimensions (WxHxD) 960 x 960 x 150 mm
Weight Per Cabinet 45 kg
Operating Temperature Range -30°C to +50°C
Storage Temperature Range -40°C to +60°C
Operating Humidity 10% to 90% RH (non-condensing)
Ingress Protection Rating IP65 (front), IP54 (rear)
Viewing Angle (Horizontal/Vertical) 160° / 140°
Service Access Rear and front access available

Cloud Management & Licensing
Management Platform Samsung MagicINFO (optional)
Licensing Required Yes, for MagicINFO CMS
Remote Monitoring Supported via MagicINFO
Content Scheduling Yes, with CMS software
Cloud Connectivity Available with MagicINFO Premium
