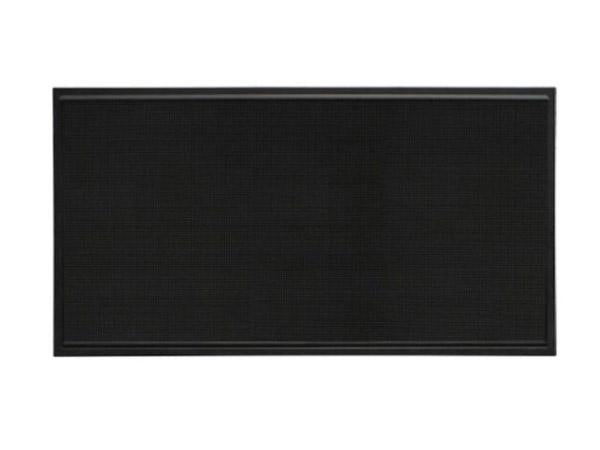

Samsung XPR-B 3HX8W Outdoor LED Display, 192x72 Resolution

VENDOR: SAMSUNG Mfg Part#: CY-10VTD380 UPC#: 887276505879
1 3
Photo is for illustration purposes only. Actual product may be different.
$16,268.59
$16,268.59
Sale Sold out
MSRP: $21,846.00
Shipping calculated at checkout.
  • LED Display with 192 x 72 maximum resolution
  • 10 mm pixel pitch for medium-to-long distance visibility
  • Double-face outdoor configuration
  • TAA compliant for federal procurement
  • Manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed specifically for high-visibility outdoor environments with durable LED technology.
  • Double-face format increases visibility and content exposure in two directions.
  • TAA compliance and U.S. manufacturing make it suitable for government and institutional projects.

Product Overview

The Samsung XPR-B 3HX8W is a double-faced outdoor LED display designed for maximum visibility in outdoor spaces. With a 192 x 72 resolution and 10 mm pixel pitch, it offers clear, readable content for a variety of signage needs including advertising and public information. Built to operate reliably in all weather conditions and TAA compliant, the display is manufactured in the United States, making it ideal for federal and high-standard commercial use. Its large-format design supports high-engagement communication and excellent return on investment over time.

Specifications

Product Overview
Manufacturer Samsung
Model Name XPR-B 3HX8W
Manufacturer Part Number CY-10VTD380
Product Type Outdoor LED Display
Display Configuration Double-Faced
Pixel Pitch 10 mm
Resolution 192 x 72
Brightness 7,000 nits
Contrast Ratio 5,000:1
Viewable Area (W x H) 1.92 m x 0.72 m (approximate)
Weight 420 kg (approximate)
Power Consumption (Max) 720 W/m²
Power Consumption (Typical) 240 W/m²
Power Supply 100-240V AC, 50/60 Hz

Wireless Features
Wireless Control Optional via external wireless controller

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certification FCC, UL, CE, RoHS
Safety Standards UL60950-1 / CAN/CSA C22.2

Advanced Security Features
Encrypted Communication Supported via management system
Access Control Password-protected user access

Interfaces
Input Interface HDMI, DVI, DisplayPort (via S-Box or controller)
Data Connection Optical Fiber / Cat6 (depending on controller)
Control Interface RJ45 Ethernet

Physical & Environmental
Enclosure Type Weatherproof Outdoor Enclosure (IP65 rated)
Dimensions (Single Face) Approximately 1.92 m x 0.72 m
Operating Temperature -30°C to +50°C
Storage Temperature -40°C to +60°C
Operating Humidity 10% to 90% RH (non-condensing)
Mounting Options Pole, Wall or Custom Structure
Cooling Method Active Cooling (fan-based)
Color Depth 16-bit
Viewing Angle (H/V) 160° / 160°
LED Lifetime ≥100,000 hours

Cloud Management & Licensing
Management Platform Samsung MagicINFO (optional license)
Remote Monitoring Supported via MagicINFO Server
Control Software Samsung LED Signage Manager (LSM)
