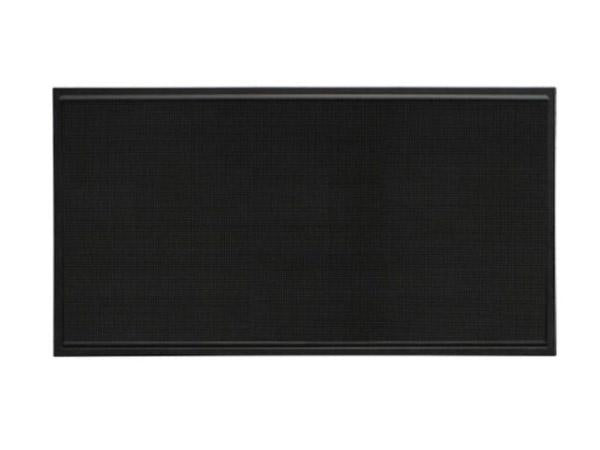

Samsung XPR-B 3HX8W Outdoor LED Display (240x90 Resolution)

VENDOR: SAMSUNG Mfg Part#: CY-08VTB380 UPC#: 887276505763
1 2
Photo is for illustration purposes only. Actual product may be different.
$9,630.78
$9,630.78
Sale Sold out
MSRP: $12,901.00
Shipping calculated at checkout.
  • LED Display with 240x90 max resolution
  • 8mm pixel pitch for medium-range outdoor visibility
  • Single face, 3Hx8W configuration
  • TAA compliant for government-friendly procurement
  • Manufactured in the United States
  • Outdoor-rated construction for durable signage

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • TAA compliance makes this display ideal for federal and enterprise applications.
  • 8mm pixel pitch and LED technology support bright, crisp visuals even in outdoor lighting.
  • USA manufacturing ensures supply chain assurance and compliance with sourcing regulations.

Product Overview

The Samsung XPR-B 3HX8W outdoor LED display is engineered for impactful digital signage in commercial outdoor environments. Featuring a resolution of 240x90 and an 8mm pixel pitch, this single-face display delivers legible content suitable for medium-distance viewing. With LED technology, users benefit from high brightness, energy efficiency, and operational durability in all weather conditions.

As part of Samsung's XPR-B family, this display meets TAA compliance and is manufactured in the United States, making it a strong option for government and enterprise sectors. Its robust construction and optimized pixel pitch enable clear messaging within compact display dimensions, ideal for venue signage, public messaging boards, or advertising in transit areas and building exteriors. The 3Hx8W configuration allows modular scalability depending on application needs.

Designed for reliability and professional performance, the Samsung 3HX8W unit offers a cost-effective solution where outdoor visibility and consistency matter. The inclusion of LED display type and compliance with federal procurement standards deliver assurance and value to mission-critical deployments.

Specifications

Product Overview
Manufacturer Samsung
Model XPR-B
Part Number CY-08VTB380
Product Type Outdoor LED Display
Display Technology LED
Configuration 3Hx8W
Resolution 240 x 90
Pixel Pitch 8 mm
Display Orientation Landscape
Modular Design Yes
Brightness (Typ.) 9000 nits
Contrast Ratio 5,000:1
Color Capability 16 bit color depth (281 trillion colors)
Viewing Angle (Horizontal/Vertical) 160° / 160°
Lifetime to Half Brightness 100,000 Hours
Power Supply 100–240V AC, 50/60Hz
Power Consumption (Max) 813 W per m²
Power Consumption (Typical) 271 W per m²
Cabinet Weight 27.0 kg (59.5 lbs)

Wireless Features
Wireless Control Support Optional (via wireless controller)

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications FCC Class A, CE, UL 60950-1
RoHS Compliant Yes

Advanced Security Features
Secure Control Access Password-protected access via network
Content Encryption Optional with compatible MagicINFO license

Interfaces
Input Interface Samsung Proprietary S-Box or Controller
Control Interface RJ-45 and RS-232C

Physical & Environmental
Cabinet Dimensions (W x H x D) 960 x 360 x 139 mm
Ingress Protection Rating IP65 Front / IP54 Rear
Operating Temperature -30°C to +50°C (-22°F to +122°F)
Operating Humidity 10% to 90% (non-condensing)
Cooling Method Natural Cooling
Cabinet Material Aluminum

Cloud Management & Licensing
Cloud Management Platform Samsung MagicINFO (optional)
Remote Monitoring Yes (via MagicINFO or S-Box)
Licensing Requirement License required for MagicINFO Premium features
Included Software Basic control software (limited), MagicINFO optional
