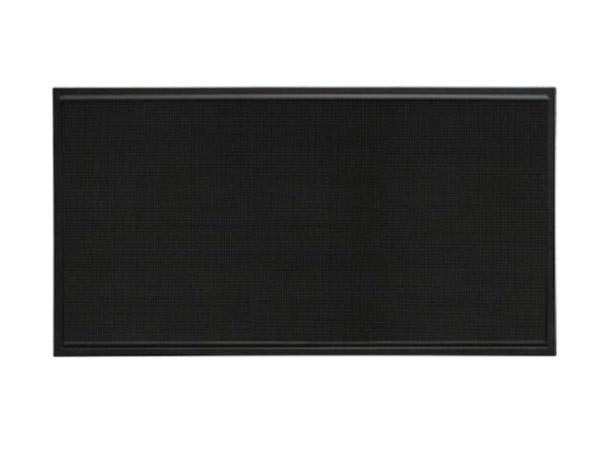

Samsung XPR-B 3HX9W LED Display, 270x90 Resolution, 8mm Pixel Pitch

VENDOR: SAMSUNG Mfg Part#: CY-08VTB390 UPC#: 887276505770
1 2
Photo is for illustration purposes only. Actual product may be different.
$10,606.88
$10,606.88
Sale Sold out
MSRP: $14,192.00
Shipping calculated at checkout.
  • Outdoor single-face LED display with 270 x 90 resolution
  • 8mm pixel pitch for medium-resolution clarity
  • Model XPR-B designed for digital signage applications
  • TAA compliant for government and institutional use
  • Made in the USA, enabling domestic logistics and support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • TAA compliance ensures suitability for federal and institutional procurement.
  • Manufactured in the United States, offering faster delivery and regulatory alignment.
  • 8mm pixel pitch delivers reliable image clarity for a wide range of signage needs.

Product Overview

The Samsung XPR-B 3HX9W outdoor LED display features a 270x90 resolution and an 8mm pixel pitch, ensuring excellent visibility for signage in outdoor environments. Designed with TAA compliance and proudly manufactured in the United States, it's suitable for both commercial and institutional applications. As part of Samsung’s XPR-B series, this single-face LED unit provides durability, modularity, and integration flexibility, offering long-term value and a strong return on investment for high-impact digital messaging.

Specifications

Product Overview
Manufacturer Samsung
Model XPR-B
Part Number CY-08VTB390
Product Type Outdoor LED Display
Display Configuration 3HX9W (3 high x 9 wide modules)
Resolution 270 x 90
Pixel Pitch 8 mm
Display Orientation Landscape
Cabinet Type Single-Face Cabinet
Application Outdoor Digital Signage
Modularity Modular Panel Design
Service Access Front and Rear Serviceable
Power Supply AC 100-240V, 50/60Hz
Power Consumption (Max) 750 W/m²
Power Consumption (Average) 250 W/m²
Brightness 6000 nits

Wireless Features
Wireless Capability No

Compliance & Origin
TAA Compliant Yes
Country of Origin United States
Certifications FCC, CE, ETL
RoHS Compliant Yes

Advanced Security Features
Security Protocol Support SSL/TLS (when using MagicINFO Server)
User Access Control Yes (via MagicINFO Admin Console)

Interfaces
Input Interface Samsung S-Box Compatible (via HDMI/DP/DVI)
Signal Transmission CAT5e/CAT6 or Fiber (with external transmitter/receiver)
Control Interface RJ45 Ethernet
Controller Compatibility Samsung LED Signage Box (SBB)

Physical & Environmental
Cabinet Dimensions (W x H x D) 960 x 320 x 120 mm
Weight per Cabinet 12.5 kg
Ingress Protection Rating IP65 (Front) / IP65 (Rear)
Operating Temperature -30°C to 50°C (-22°F to 122°F)
Humidity Range 10% to 90% RH (non-condensing)
Cooling Method Fanless Passive Cooling
Material Aluminum Cabinet Frame
Color Depth 16 bit (281 Trillion Colors)

Cloud Management & Licensing
Cloud Management Platform Samsung MagicINFO (optional)
Remote Monitoring Yes (via MagicINFO Server)
Software Licensing Sold Separately via Samsung Resellers
Content Scheduling Yes
