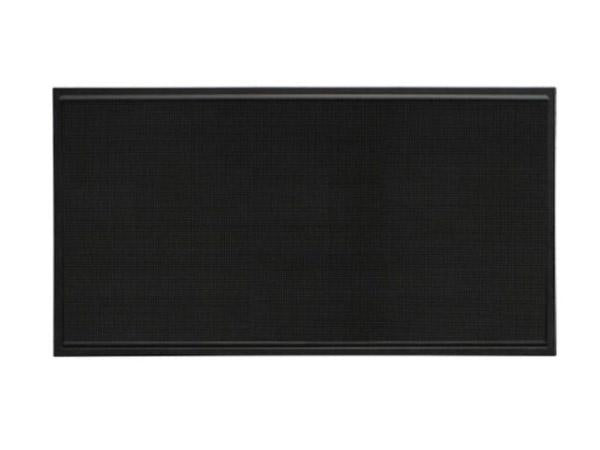

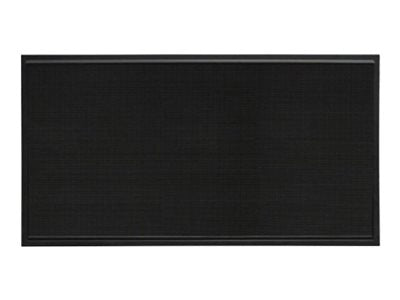

Samsung XPR-B 3HX9W Outdoor LED Display 270x90

VENDOR: SAMSUNG Mfg Part#: CY-08VTD390 UPC#: 887276505817
1 3
Photo is for illustration purposes only. Actual product may be different.
$18,712.03
$18,712.03
Sale Sold out
MSRP: $25,114.00
Shipping calculated at checkout.
  • 270 x 90 maximum resolution for clear visual performance
  • 8mm pixel pitch ensures high visibility at multiple distances
  • Double face configuration for increased display coverage
  • LED display technology for bright and energy-efficient output
  • TAA compliant and manufactured in the United States
  • Part of Samsung's XPR-B series, optimized for outdoor use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for outdoor performance in rugged environments with enhanced visibility.
  • Dual-face display maximizes content exposure, boosting value for high-traffic applications.
  • TAA compliance and USA manufacturing ensure commercial and government procurement compatibility.

Product Overview

The Samsung XPR-B 3HX9W is a commercial-grade outdoor LED display with a 270x90 resolution and 8mm pixel pitch, delivering vibrant performance suitable for a wide range of outdoor signage applications. Designed for double-sided viewing, this solution is ideal for environments requiring maximum visual exposure. Manufactured in the United States and TAA compliant, it meets critical standards for government and enterprise deployment. Built for durability and visual impact, it supports visibility in harsh weather conditions and across varied lighting scenarios, providing long-term ROI and minimal operational disruption.

Specifications

Product Overview
Manufacturer Samsung
Model XPR-B
Manufacturer Part Number CY-08VTD390
Display Type Outdoor LED Display
Form Factor Double-sided outdoor video display
Pixel Pitch 8 mm
Native Resolution 270 x 90 (per side)
Brightness 9000 nits (typical)
Contrast Ratio 5000:1
Color Depth 16-bit (281 trillion colors)
Refresh Rate 3,840 Hz
Lifetime (Typical) 100,000 hours
Power Supply AC 100~240V, 50/60Hz
Power Consumption (Max) 850 W/m²
Power Consumption (Typical) 340 W/m²
Application Outdoor digital signage, transportation hubs, commercial advertising

Wireless Features
Wireless Control Support Yes (via optional wireless controller or cloud platform)

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications FCC Class A, UL, CE, RoHS

Advanced Security Features
Access Control Password-protected configuration access
Tamper Detection Enabled via monitoring integration

Interfaces
Video Input HDMI, DVI-D, DisplayPort (via S-Box/controller)
Control Interface RJ45 (Ethernet), RS232
Signal Transmission Fiber Optic / LAN (via sending controller)
Data Transfer Type Gigabit Ethernet / Optical Link

Physical & Environmental
Display Dimensions (Cabinet) 960 x 960 mm per cabinet
Total Display Area Depends on deployment size/configuration
Cabinet Material Aluminum
Ingress Protection Rating IP65 front / IP54 rear
Operating Temperature -30°C to 50°C (-22°F to 122°F)
Operating Humidity 10% to 90% RH (non-condensing)
Storage Temperature -40°C to 60°C
Cooling System Active cooling with fans
Mounting Type Customizable - wall-mounted, pole-mounted, or freestanding structures
Service Access Front and rear serviceable

Cloud Management & Licensing
Management Interface Samsung MagicINFO (optional)
Remote Monitoring Yes, via MagicINFO or 3rd party systems
Brightness Control Automatic and manual via software
Content Scheduling Yes, via MagicINFO or compatible CMS
