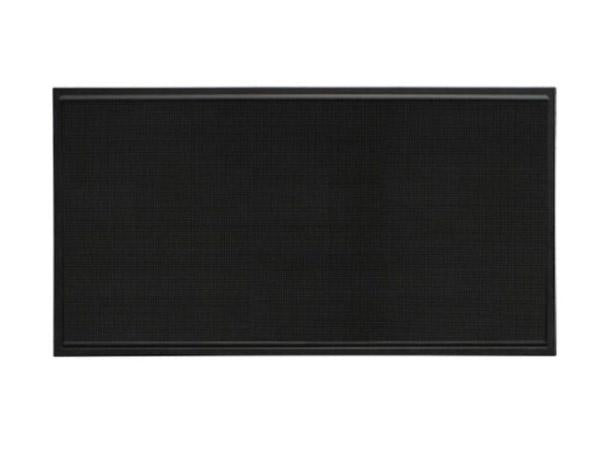

SAMSUNG XPR-B 4HX9W 8mm Outdoor LED Display (270x90 Resolution)

VENDOR: SAMSUNG Mfg Part#: CY-08VTB490 UPC#: 887276505787
1 2
Photo is for illustration purposes only. Actual product may be different.
$12,319.72
$12,319.72
Sale Sold out
MSRP: $16,429.00
Shipping calculated at checkout.
  • LED display with 270 x 90 resolution for outdoor visibility
  • 8mm pixel pitch suitable for medium to long-range viewing
  • Single-face configuration for streamlined installations
  • TAA compliant, suitable for government and institutional use
  • Made in the United States for assured build quality

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • TAA compliance makes it ideal for government and regulated industry applications.
  • Outdoor-rated LED design ensures reliable performance in various weather conditions.
  • Manufactured in the USA, aligning with procurement requirements and supporting local quality standards.

Product Overview

The SAMSUNG XPR-B 4HX9W is a purpose-built outdoor LED display optimized for commercial and public-facing applications requiring clear visual communication in demanding environmental conditions. With a native resolution of 270x90 and an 8mm pixel pitch, this display balances pixel density and viewing distance, offering legibility from a range of viewing angles. It uses LED technology to ensure brightness, long operational life, and consistent performance in outdoor settings.

Designed as a single-face, fixed installation unit, the XPR-B is well-suited to outdoor signage solutions such as municipal information boards, transportation hubs, retail storefronts, or educational campuses. This display is compliant with TAA standards and manufactured in the United States, offering additional assurance for government or institutional procurement requirements.

With the combination of LED durability and Samsung's engineering, businesses benefit from reduced maintenance costs and high visibility even in daylight. Whether deployed for advertising, public information, or branding, the robust construction and reliable performance make the SAMSUNG XPR-B 4HX9W a compelling investment for long-term use.

Specifications

Product Overview
Manufacturer Samsung
Model XPR-B 4HX9W
Part Number CY-08VTB490
Display Type LED Display
Application Outdoor Fixed Installation
Form Factor Single-Face Display Unit
Pixel Pitch 8 mm
Resolution 270 x 90
Brightness (Typical) Up to 7,800 nits
Contrast Ratio 4,000:1
Refresh Rate ≥3,840 Hz
Viewing Angle (Horizontal/Vertical) Up to 160°/150°
LED Lifetime 100,000 hours (typical)
Power Consumption (Max) Up to 780 W/m²
Power Consumption (Typical) 260 W/m²
Power Supply 100–240V AC, 50/60 Hz
Cabinet Type Aluminum Die-Cast
Weight (per cabinet) Approx. 26.5 kg
Maintenance Access Front & Rear

Wireless Features
Wi-Fi Connectivity

Compliance & Origin
TAA Compliant Yes
Country of Origin United States
Certifications FCC, UL, CE, RoHS

Advanced Security Features
Secure Remote Access MagicINFO with secured login
Content Encryption AES-128 via MagicINFO
User Access Control Role-based permissions in MagicINFO

Interfaces
Video Input HDMI, DVI, DisplayPort (via external controller)
Control Interface RJ45 / Ethernet
Supported Controller Samsung S-Box or compatible LED controller

Physical & Environmental
Unit Dimensions (per cabinet) 960 x 960 x 128.5 mm
Ingress Protection Rating IP65 (Front), IP65 (Rear)
Operating Temperature Range -30°C to 50°C
Humidity (Operating) 10% to 90% RH (non-condensing)
Cooling Method Natural Convection / Fanless
Ventilation Requirement Rear Clearance Required for Heat Dissipation

Cloud Management & Licensing
Cloud Platform Compatibility Samsung MagicINFO (Optional)
Local Content Management Supported via Embedded S-Box
Remote Diagnostics Available with MagicINFO
Software Licensing MagicINFO license sold separately
