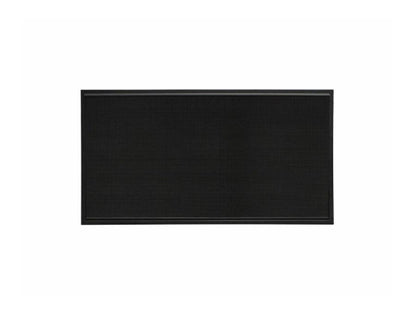

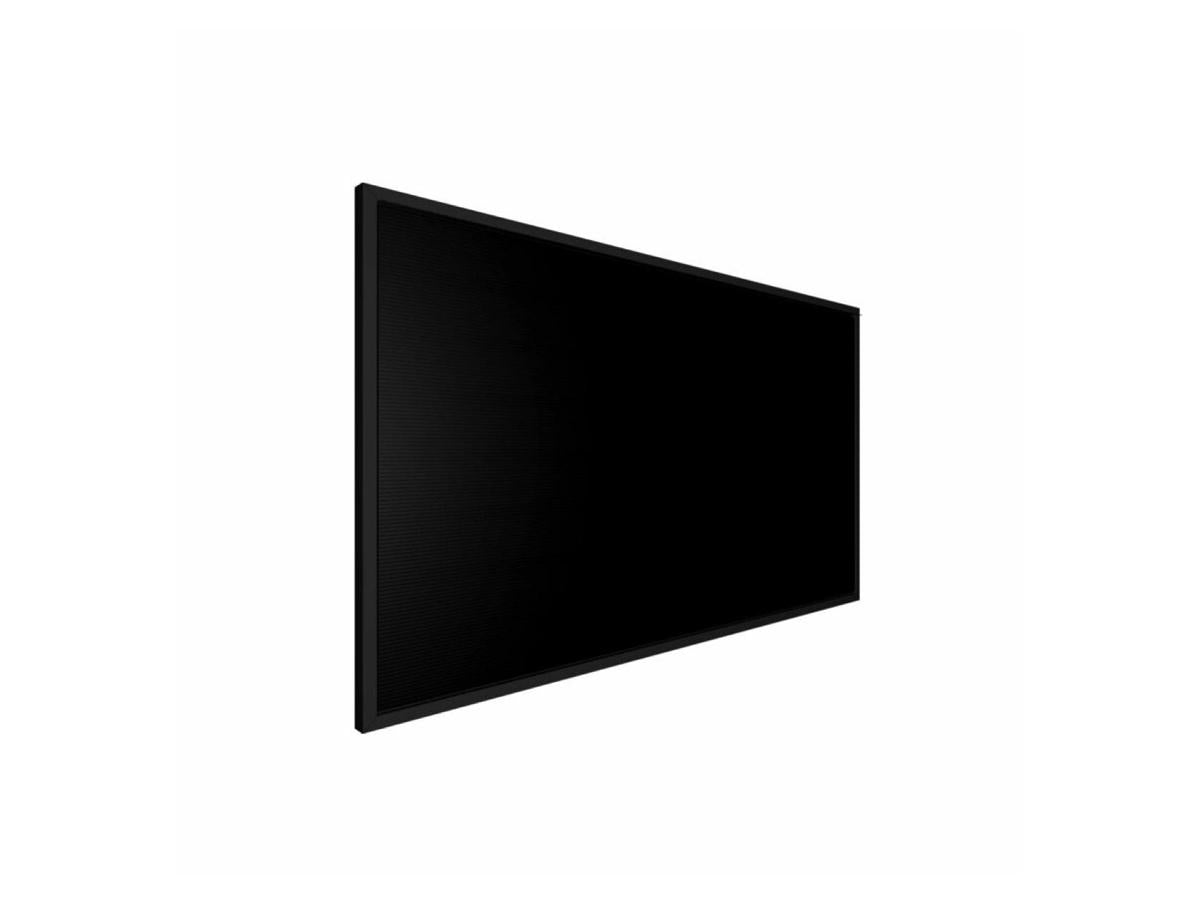

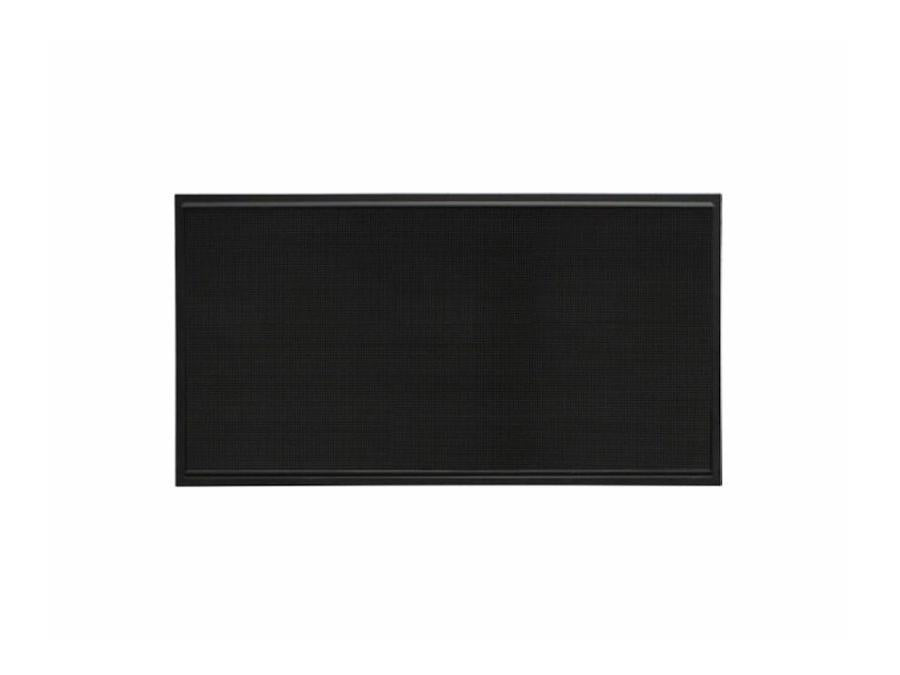

Samsung XPR-B 8mm Outdoor LED Display 3Hx9W (270x90)

VENDOR: SAMSUNG Mfg Part#: XPRB08SF0309 UPC#: 887276505763
1 3
Photo is for illustration purposes only. Actual product may be different.
$10,606.88
$10,606.88
Sale Sold out
MSRP: $14,192.00
Shipping calculated at checkout.
  • 8.333 mm pixel pitch for precise image clarity
  • 7000 nit brightness for high-visibility outdoor environments
  • 7680 Hz visual refresh rate minimizes motion artifacts
  • 281 trillion color support for vibrant, lifelike images
  • 160°/90° wide viewing angles ensure optimal visibility
  • TAA compliant and manufactured in Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers ultra-high brightness and color fidelity essential for outdoor signage applications
  • Supports enterprise and government deployment with TAA compliance and flexible power input
  • Engineered for performance in demanding environments with high power capacity and durable design

Product Overview

The Samsung XPR-B 8mm Outdoor LED Single Face display is engineered for high-visibility outdoor applications, offering a 3Hx9W modular layout with a 270x90 resolution for wide-format signage needs. With a pixel pitch of 8.333 mm and a powerful 7000 nit brightness rating, it ensures clear, sharp images in direct sunlight or challenging weather conditions. The display supports 281 trillion colors, enabling rich and vivid digital content, while the 7000:1 contrast ratio enhances depth and color precision. Its visual refresh rate of 7680 Hz and 60 Hz display refresh rate ensure smooth content playback without flicker, critical for moving graphics or video feeds in outdoor environments.

Engineered for operational reliability, the unit handles up to 1500 watts and supports a 100–240V power range. Built with LED backlighting and durable single-face construction, it's ideal for transportation hubs, sports venues, or commercial signage. A 160°/90° viewing angle maximizes visibility across different site configurations. Additionally, this unit is TAA compliant and manufactured in Mexico, suitable for government and enterprise-level deployments requiring specific sourcing criteria.

Specifications

Product Overview
Manufacturer Samsung
Model XPR-B
Product Type Outdoor LED Display
Form Factor Single Face, Modular 3Hx9W
Pixel Pitch 8.333 mm
Resolution 270 x 90
Color Support 281 Trillion Colors
Refresh Rate 60 Hz
Visual Refresh Rate 7680 Hz
Contrast Ratio 7000:1
Backlight Type LED
Brightness 7000 nits
Display Orientation Landscape
Power Consumption (Operational) 1500 Watts
Power Requirements 100–240V AC, 50/60 Hz
Face Configuration Single Face

Wireless Features
Wireless Capability Optional via S-Box accessory
Remote Monitoring Supported via network/cloud
Wi-Fi Standard Depends on controller/S-Box

Compliance & Origin
TAA Compliant Yes
Country of Origin Mexico
Certifications FCC, CE, RoHS, UL
EMC Compliance Class A

Advanced Security Features
Content Encryption Supported via MagicINFO
Access Control Role-based user management via MagicINFO
Data Security Protocols HTTPS / SSL for remote access

Interfaces
Input Interface Ethernet / RJ45
Video Input HDMI (via controller)
Control Interface RS232 / Ethernet
Input Ports As defined via external controller
Data Connection Via Samsung LED Signage Box (S-Box)

Physical & Environmental
Viewing Angle (Horizontal/Vertical) 160° / 90°
Ingress Protection Rating IP65 (Front), IP45 (Rear)
Operating Temperature Range -30°C to +50°C
Storage Temperature Range -40°C to +60°C
Humidity Range (Operating) 10% to 90% RH (non-condensing)
Cooling System Active Cooling with Internal Fans
Module Dimensions Exact full display dimensions vary by configuration
Cabinet Material Aluminum / Steel (Outdoor Rated)

Cloud Management & Licensing
Remote Management Samsung MagicINFO Supported
Software Platform Samsung MagicINFO (Optional Licensing)
Content Scheduling Yes, via MagicINFO CMS
Health Monitoring Yes, via MagicINFO Server
Controller Requirement Samsung LED Signage Box (Optional)
