| Manufacturer | Samsung |
| Model | XPR-B |
| Manufacturer Part Number | CY-08VTD490 |
| Product Type | Outdoor LED Display |
| Form Factor | Modular LED Panel (4Hx9W configuration) |
| Pixel Pitch | 8 mm |
| Resolution | 270 x 90 pixels |
| Orientation | Double-Faced |
| Typical Power Consumption | Approximately 650 W/m² |
| Maximum Power Consumption | Up to 1300 W/m² |
| Lifetime (Typical) | 100,000 hours |
| Brightness (Typical) | Up to 6,500 nits |
| Viewing Angle (Horizontal/Vertical) | 160° / 160° |
| LED Type | DIP / SMD (varies by model configuration) |

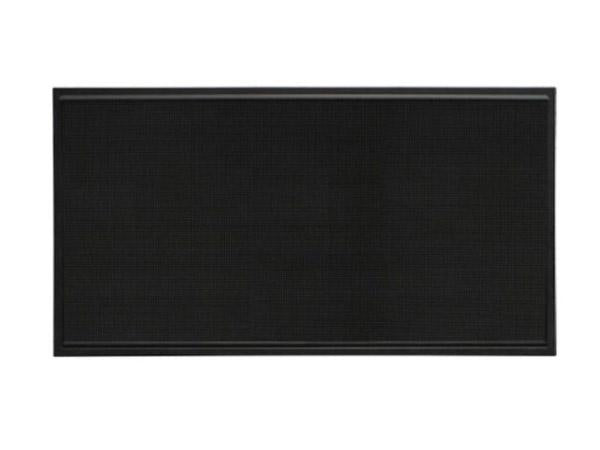

SAMSUNG XPR-B 8mm Outdoor LED Display 4Hx9W (270x90)
Photo is for illustration purposes only. Actual product may be different.
Regular price
$22,083.73
Regular price
Sale price
$22,083.73
Unit price
per
MSRP: $29,587.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Model: XPR-B
- Display Type: LED Display
- Resolution: 270 x 90 pixels
- Pixel Pitch: 8 mm
- Double-face configuration
- TAA compliant and made in the United States
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Outdoor-ready 4Hx9W LED display with 8mm pixel pitch delivers clear visuals for large-scale signage.
- TAA-compliant and U.S. manufactured, ideal for public sector and regulated industry installations.
- Double-face format increases visibility and reach, optimizing effectiveness in event or roadside settings.
Product Overview
The SAMSUNG XPR-B 8mm Outdoor LED Display in a 4Hx9W configuration is purpose-built for impactful outdoor signage. With a 270x90 pixel resolution and an 8mm pixel pitch, it balances clarity with cost-efficiency for mid-range viewing distances. Designed for high-durability deployments, this double-faced unit serves audiences in multiple directions, making it suitable for commercial plazas and public information boards.
This LED display is TAA-compliant and manufactured in the United States, enhancing suitability for federal and institutional use. Its LED technology ensures high visibility across daylight variations while supporting long-term operation with minimal maintenance, offering strong ROI in dynamic signage environments.
Specifications
Product Overview
Wireless Features
| Wireless Control Support | Yes, via optional wireless controller |
Compliance & Origin
| TAA Compliant | Yes |
| Country of Origin | United States |
| Certifications | FCC, UL, CE, RoHS |
Advanced Security Features
| Access Control | Password-protected control interface |
| Network Security Protocols | TCP/IP based with LAN segmentation recommended |
Interfaces
| Control Interface | RJ45 / Ethernet |
| Video Input | HDMI, DVI (through LED controller) |
| Communication Protocol | TCP/IP Ethernet Control |
| Service Port | USB (via controller) |
| Controller Compatibility | Compatible with Samsung LED Signage Box (S-Box) |
Physical & Environmental
| Unit Dimensions (Single Cabinet) | 960 x 960 mm (37.8 x 37.8 in) |
| Cabinet Depth | 87 mm (3.4 in) |
| Display Dimensions (Full - 4Hx9W) | 3.84 m x 1.44 m (approx. 151.2 x 56.7 in) |
| Cabinet Weight | Approx. 35 kg (77.2 lbs) |
| Ingress Protection Rating | IP65 (front), IP45 (rear) |
| Operating Temperature | -30°C to +50°C (-22°F to +122°F) |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Cooling System | Active fan cooling |
Cloud Management & Licensing
| Management Interface | Samsung MagicINFO (optional) |
| Remote Monitoring | Yes, via MagicINFO or compatible CMS |
| License Required | Yes, for MagicINFO enterprise features |
| Included Management Software | Basic control interface via LED controller |
