| Manufacturer | Samsung |
| Model | XPR-B |
| Manufacturer Part Number | XPRB08SF0612 |
| Product Type | Outdoor LED Display |
| Form Factor | Single Face, 6Hx12W |
| Pixel Pitch | 8.333 mm |
| Resolution | 360x180 |
| Visual Refresh Rate | 7680 Hz |
| Image Contrast Ratio | 7000:1 |
| Brightness | 7000 nits |
| Color Support | 281 Trillion Colors |
| Backlight Technology | LED |
| Display Type | LED Video Display |
| Power Consumption (Max) | 1500 W |
| Power Requirements | 100–240V AC, 50/60 Hz |

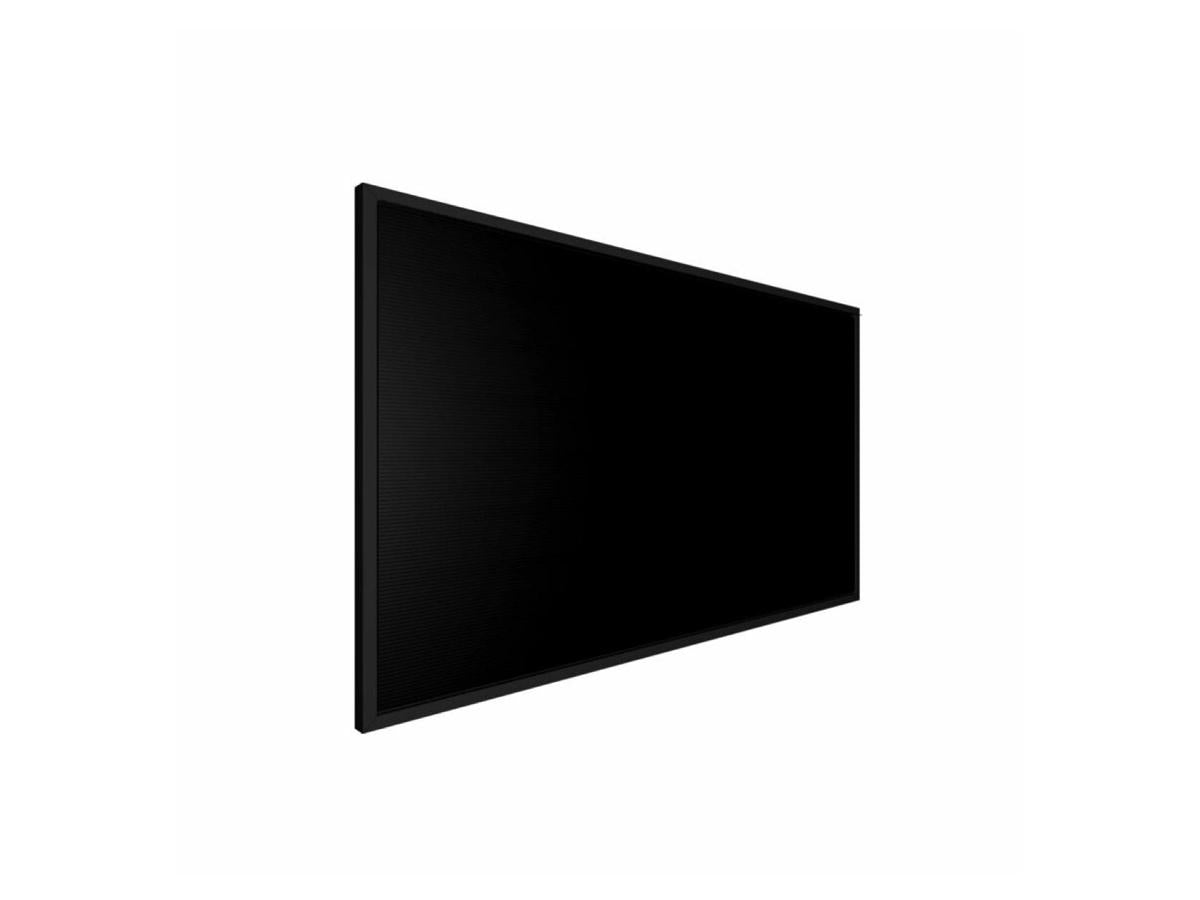

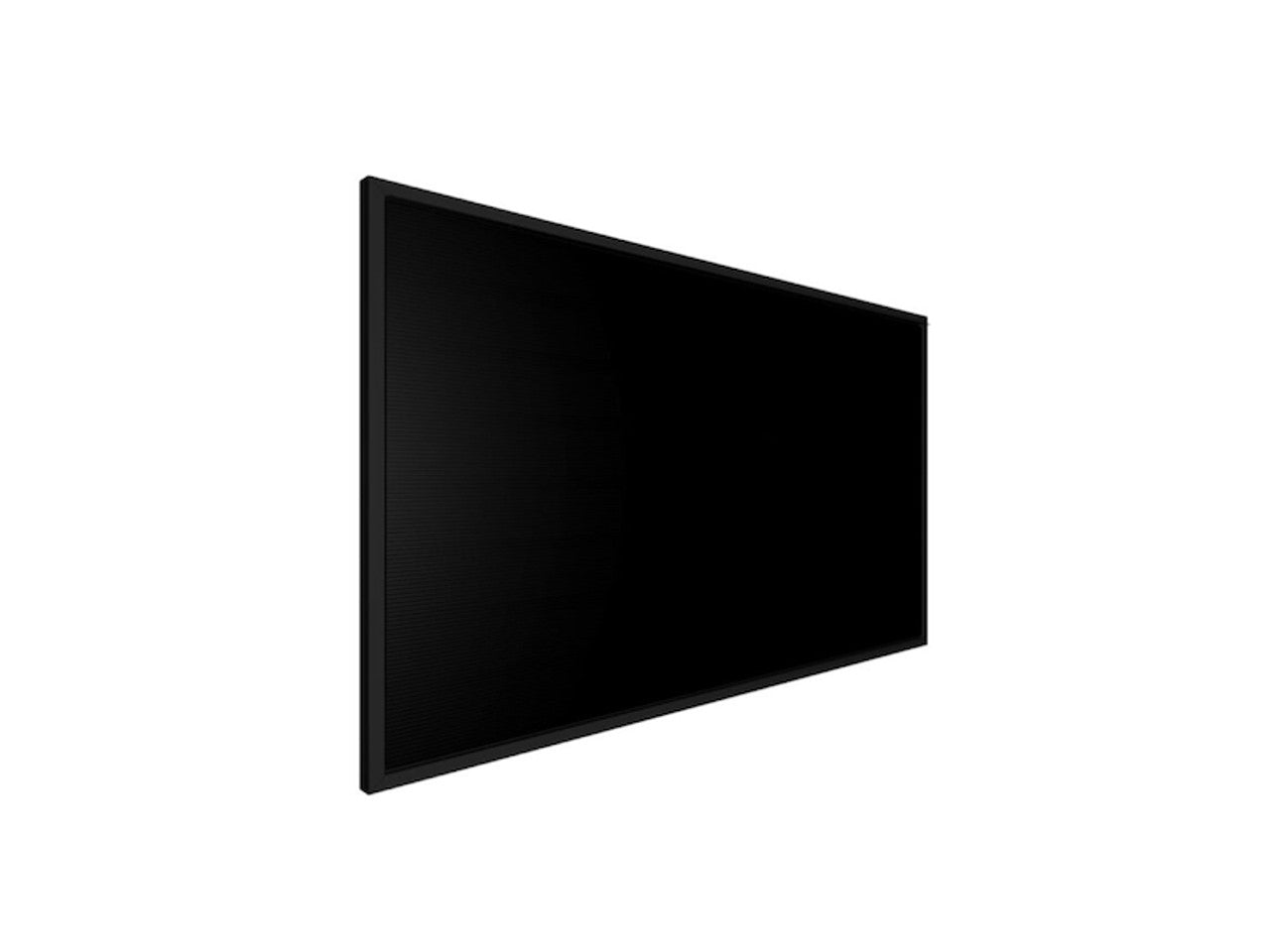

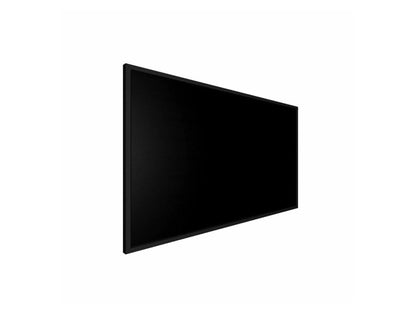

Samsung XPR-B 8mm Outdoor LED Display Single Face 6Hx12W
Photo is for illustration purposes only. Actual product may be different.
Regular price
$18,744.25
Regular price
Sale price
$18,744.25
Unit price
per
MSRP: $25,029.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 8.333 mm pixel pitch for sharp large-format outdoor visuals
- 7000 nit brightness for high visibility in daylight
- Ultra-high 7680 Hz refresh rate for smooth content playback
- 281 trillion color support with LED backlight technology
- 160°/90° wide viewing angle and 7000:1 contrast ratio
- Power consumption up to 1500W, compatible with 100/240V, 50/60Hz
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Exceptional brightness (7000 nit) makes it ideal for outdoor visibility.
- 7680 Hz visual refresh rate delivers ultra-smooth video performance.
- TAA-compliant and built in Mexico, suitable for government and commercial use.
Product Overview
Designed for high-visibility, large-scale outdoor signage, the Samsung XPR-B 8mm Outdoor LED Display delivers impressive visual performance in a robust, single-faced configuration. This model features a pixel pitch of 8.333 mm and a resolution of 360x180, making it suitable for applications that demand clarity and impactful presentation. Its brightness level of 7000 nits ensures content readability even under direct sunlight, while the ultra-high visual refresh rate of 7680 Hz eliminates flickering for smooth playback of video and motion content.
Utilizing LED backlight technology and color support for up to 281 trillion colors, the XPR-B display guarantees vibrant, accurate color representation across a wide 160° horizontal and 90° vertical viewing angle. Engineered with an image contrast ratio of 7000:1, this display enhances image depth and detail in both light and dark environments. The unit operates on 100/240V at 50/60 Hz and has a maximum power consumption of 1500 watts, making it suited for heavy-duty use in professional display installations.
Manufactured in Mexico and compliant with TAA regulations, this model is a strong fit for government and commercial installations requiring high-performance, large-format displays. Samsung's engineering focus on brightness, durability, and clarity makes the XPR-B suitable for stadiums, transportation hubs, and premium retail or advertising environments.
Specifications
Product Overview
Wireless Features
| Wireless Connectivity |
Compliance & Origin
| Country of Origin | Mexico |
| TAA Compliant | Yes |
| RoHS Compliance | Yes |
| EMC Compliance | FCC Class A |
| Safety Certification | UL Certified |
Advanced Security Features
| Content Security | Secure content push via authorized CMS platform |
| Access Control | Admin-level access restrictions via MagicInfo |
Interfaces
| Interface Type | Digital (Controller-based) |
| Signal Interface | Compatible with Samsung S-Box controllers |
| Data Input | Via external controller / media player |
| Video Input Format Support | Dependent on external controller |
Physical & Environmental
| Viewing Angle (Horizontal) | 160° |
| Viewing Angle (Vertical) | 90° |
| Operating Temperature Range | -30°C to 50°C |
| Storage Temperature Range | -40°C to 60°C |
| Operating Humidity Range | 10% to 90% RH (non-condensing) |
| Ingress Protection Rating | IP65 (front), IP45 (rear) |
| Weatherproof | Yes |
| Mounting Options | Custom Outdoor Mounting Structures |
Cloud Management & Licensing
| Remote Display Management | Supported via Samsung MagicInfo or Third-party CMS |
| Included Software | Samsung MagicInfo (optional) |
| Licensing Model | License required for MagicInfo Pro/Server features |
