| Product Type | Outdoor LED Digital Signage Display |
| Form Factor | Double-Face, Free-Standing |
| Pixel Pitch | 8 mm |
| Native Resolution (Per Side) | 360 x 90 |
| Display Size (Per Side) | 4 ft x 12 ft |
| Total Display Area | 96 ft² |
| Color Capability | Full Color |
| Contrast Ratio | 6,000:1 |
| Brightness (Typical) | Up to 9,000 nits |
| Viewing Angle (Horizontal/Vertical) | 160° / 160° |
| Lifespan | 100,000 hours (typical) |
| Cabinet Material | Aluminum |
| Weight (Per Cabinet) | Approximately 55 lbs (25 kg) |
| Power Consumption (Maximum) | Up to 850 W/m² |
| Power Consumption (Typical) | 350 W/m² |
| Input Voltage | 100–240V AC |

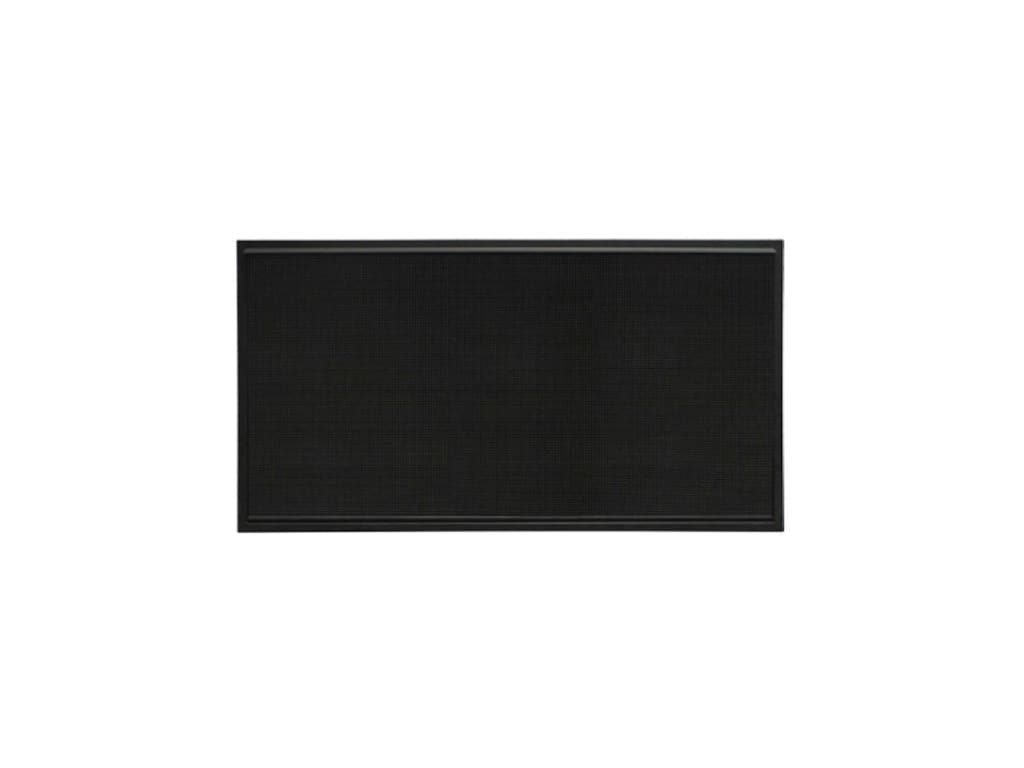

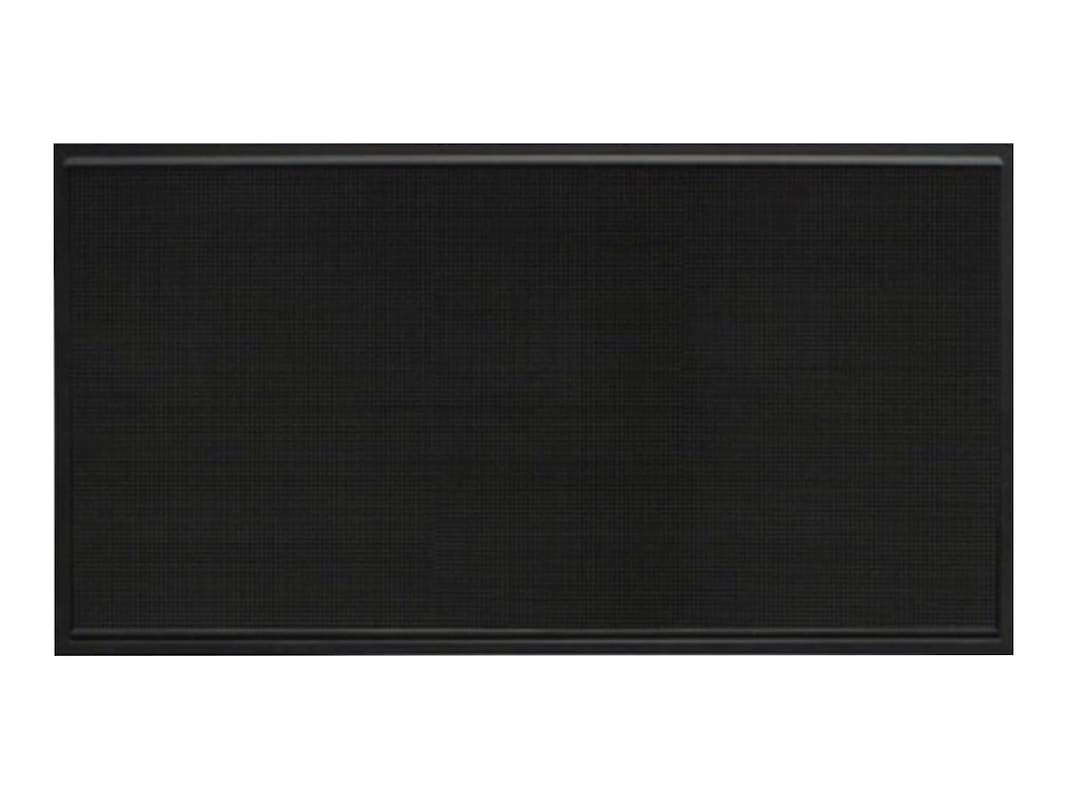

SAMSUNG XPR-B 8mm Outdoor LED Double Face Display
Photo is for illustration purposes only. Actual product may be different.
Regular price
$29,843.37
Regular price
Sale price
$29,843.37
Unit price
per
MSRP: $39,878.23
Shipping calculated at checkout.
Couldn't load pickup availability
- LED Display technology for high-visibility outdoor viewing
- 8mm pixel pitch optimized for mid-range outdoor readability
- Double face display format enhances bidirectional audience engagement
- Large display dimensions: 4ft height by 12ft width
- TAA compliant for government and institutional procurement
- Manufactured in Mexico to support regional sourcing
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Dual-sided display maximizes viewership by presenting content in both directions.
- TAA compliance enables eligibility for federal and institutional projects.
- Manufactured in Mexico for potentially shorter lead times and regional compliance advantages.
Product Overview
The SAMSUNG XPR-B 8mm Outdoor LED Double Face is purpose-built for outdoor digital signage, featuring an 8mm pixel pitch and delivering 360x90 resolution on each side of its 4x12 ft double-faced LED display. Designed for high-traffic environments, its TAA compliance supports institutional use, complemented by Mexican manufacturing origin for regional compliance needs. Built with commercial durability and engineered for clear viewing angles, it provides an efficient signage solution even with some technical specs undisclosed.
Specifications
Product Overview
Physical & Environmental
| Dimensions (Single Cabinet) | 960 mm x 480 mm x 100 mm |
| Ingress Protection (IP) Rating | IP65 (front), IP54 (rear) |
| Operating Temperature Range | -30°C to 50°C |
| Storage Temperature Range | -40°C to 60°C |
| Operating Humidity | 10% to 90% non-condensing |
| Cooling Method | Passive and Active (internal fans) |
| Mounting Options | Pole, Wall, or Custom Frame Mounting |
Cloud Management & Licensing
| Remote Management Capability | Yes, via S-Box or 3rd-party CMS |
| Compatible Content Management Systems | Samsung MagicINFO (optional), 3rd-party CMS |
| Network Management Protocols | SNMP, HTTP/HTTPS |
| Included Licensing | May require separate CMS licensing depending on configuration |
Interfaces
| Video Input | HDMI, DVI, DisplayPort (via S-Box or external controller) |
| Control Interface | RJ45 (Ethernet) |
| Data Interface | CAT5e/CAT6 or Fiber via controller |
| Signal Transmission | Synchronous or Asynchronous (via controller) |
Compliance & Origin
| Country of Origin | Mexico |
| TAA Compliant | Yes |
| Regulatory Approvals | FCC Part 15 Class A, CE, ETL |
| RoHS Compliant | Yes |
| WEEE Compliant | Yes |
Advanced Security Features
| User Access Control | Yes, role-based via CMS |
| Network Security | HTTPS, Password Protection |
| Firmware Management | Secure firmware updates via network or USB |
