| Manufacturer | Samsung |
| Model | XPR-B |
| Manufacturer Part Number | CY-16TTB380 |
| Type | Outdoor LED Display |
| Form Factor | Single Face 3Hx8W Configuration |
| Resolution | 120 x 45 |
| Pixel Pitch | 16.666 mm |
| Contrast Ratio | 7500:1 |
| Brightness | 7500 nits |
| Color Support | 281 Trillion Colors |
| Visual Refresh Rate | 7680 Hz |
| Standard Refresh Rate | 60 Hz |
| Power Consumption (Operational) | 330 W |
| Power Requirements | 100–240 V AC, 50/60 Hz |

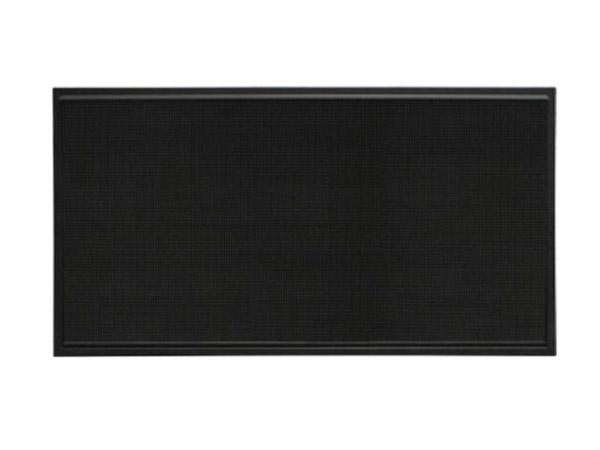

Samsung XPR-B Outdoor LED Display 3Hx8W (120x45 Resolution)
Photo is for illustration purposes only. Actual product may be different.
Regular price
$8,481.80
Regular price
Sale price
$8,481.80
Unit price
per
MSRP: $11,353.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Pixel pitch: 16.666 mm for optimized outdoor visibility
- Brightness of 7500 nits for clear daylight readability
- 281 trillion color support for vivid image reproduction
- Visual refresh rate of 7680 Hz for smooth content playback
- 160° horizontal and 90° vertical viewing angles
- TAA compliant and made in the United States
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Designed for outdoor installations with high brightness and wide viewing angles, ensuring effective visibility in any lighting condition.
- TAA compliant and manufactured in the United States, making it suitable for government and regulated sector applications.
- High refresh rate and extensive color support provide professional-grade video playback ideal for commercial signage.
Product Overview
The Samsung XPR-B 3Hx8W is an outdoor LED display designed for professional signage, featuring a pixel pitch of 16.666 mm and a resolution of 120x45. The display delivers 7500 nits of brightness and a contrast ratio of 7500:1, ensuring visibility and clarity in bright environments. With support for 281 trillion colors and a visual refresh rate of 7680 Hz, it excels in real-time content playback. Its wide viewing angles and single-face format make it perfect for high-impact outdoor deployments. The model is TAA compliant and operates at 100–240V, consuming 330 watts during use.
Specifications
Product Overview
Physical & Environmental
| Viewing Angle (Horizontal/Vertical) | 160° / 90° |
| Installation Environment | Outdoor |
| Display Layout | 3Hx8W Module Configuration |
| Ingress Protection Rating | IP65 Front / IP54 Rear (typical for outdoor Samsung LED signage) |
| Operating Temperature | -30°C to +50°C |
| Storage Temperature | -40°C to +60°C |
| Operating Humidity | 10% to 95% (non-condensing) |
| Cooling System | Forced Air Cooling (Fans) |
Cloud Management & Licensing
| Remote Management Capabilities | Supported via Samsung LED Signage Manager (LSM) |
| Control Software | Samsung MagicINFO (optional) |
| Licensing Requirements | MagicINFO license required for full CMS feature set |
| Content Management Platform | MagicINFO or 3rd-party LED controllers |
Interfaces
| Video Input Interface | LED Controller-based input (specific input type may vary by controller) |
| Control Interface | Ethernet / Serial (dependent on processor) |
Compliance & Origin
| Country of Origin | United States |
| TAA Compliant | Yes |
| Certifications | FCC, CE, UL (based on Samsung XPR series standards) |
| EMC Compliance | Class A |
| RoHS Compliance | Yes |
Advanced Security Features
| Device Authentication | Yes (via CMS software) |
| Password Protected Configuration | Yes (controller dependent) |
| Secure Remote Access Support | Yes (through management software stack) |
