SonicWall NSa 3650 Firewall Appliance, 30-Port, 32GB SSD

VENDOR: SONICWALL Mfg Part#: 01-SSC-1937 UPC#: 758479019374
1 3

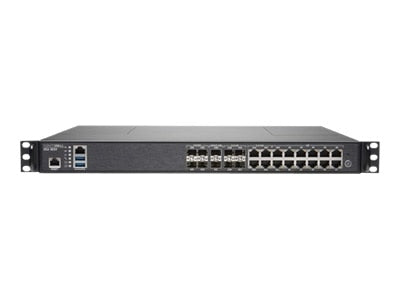

Photo is for illustration purposes only. Actual product may be different.
$2,999.32
$2,999.32
Sale Sold out
MSRP: $3,395.75
Shipping calculated at checkout.
  • Firewall throughput of up to 3.75 Gbps and IPS throughput of 1.8 Gbps
  • Comprehensive interface options: 2x 10GbE SFP+, 8x 2.5GbE SFP, 4x 2.5GbE, 12x 1GbE
  • Remote management support via SSH, CLI, and DHCP
  • Integrated 32 GB SSD for internal storage
  • Operates on 100-240 VAC, 50-60 Hz with max 46W power consumption
  • TAA and RoHS compliant, manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers high firewall performance (3.75 Gbps) and IPS throughput (1.8 Gbps) to support large-scale deployments
  • Provides extensive connectivity with 30 ports including 10GbE and 2.5GbE interfaces, ideal for versatile network designs
  • Designed for secure and efficient management with support for multiple remote protocols and SonicOS 6.5.4

Product Overview

The SonicWall NSa 3650 is a high-performance next-generation firewall appliance tailored for mid-sized to large enterprises. Encased in a compact 1U form factor, it delivers comprehensive network security with support for SonicOS 6.5.4, offering advanced firewall and intrusion prevention services (IPS). With a firewall throughput of up to 3.75 Gbps and IPS throughput of 1.8 Gbps, it ensures fast and secure traffic inspection, making it well-suited for complex environments with high bandwidth demands.

For connectivity, the NSa 3650 comes equipped with an extensive range of interfaces: 2 x 10GbE SFP+, 8 x 2.5GbE SFP, 4 x 2.5GbE, 12 x 1GbE, as well as dedicated ports for management and console access. It also includes dual USB ports and a built-in 32 GB SSD for local data handling. The appliance supports remote management via SSH, CLI, and DHCP, enhancing administrative control. It operates on standard AC power and consumes a maximum of 46 Watts, aligning well with energy-conscious IT deployments.

Compliant with RoHS and TAA standards and manufactured in Taiwan, the NSa 3650 is a dependable solution for organizations seeking to bolster network security while maintaining high performance and operational flexibility.

Specifications

Product Overview
Product Type Firewall
Model NSa 3650
Form Factor 1U
Rack Height 1U
Connectivity Technology Wired
Operating System SonicOS 6.5.4
Hard Drive 32 GB SSD
Max Power Consumption 46 Watt
Power / Voltage Required 100-240 VAC,50-60 Hz
Power / Device Type Power Supply

Wireless Features
Cellular Technology None
Cellular Generation None
Cellular Service Provider None

Compliance & Origin
RoHS Y
TAA Compliance Yes
Country of Origin Taiwan
Certifications UL, cUL, TUV/GS, CB, CCC, CE, FCC Class A, VCCI Class A, ICES Class A

Advanced Security Features
Firewall Throughput 3.75 Gbps
IPS Throughput 1.8 Gbps
VPN Throughput 1.3 Gbps
Concurrent Sessions 1,500,000
New Connections/Sec 12,000
SSL Inspection Throughput 540 Mbps
Threat Prevention Yes (requires license)
Application Control Yes
Content Filtering Yes (requires license)
Malware Protection Yes (Capture ATP)
Intrusion Prevention System (IPS) Yes
Deep Packet Inspection Supported

Interfaces
Networking / Ports Qty 30
Interfaces 2 x 10GbE SFP+, 8 x 2.5GbE SFP, 4 x 2.5GbE, 12 x 1GbE, 1 GbE Management, 1 Console, Dual USB
Data Transfer Rate 10 Gbps
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Remote Management Protocol SSH
Remote Management Protocol CLI
Remote Management Protocol DHCP

Physical & Environmental
Width 16.9 Inch
Depth 12.8 Inch
Height 1.8 Inch
Weight 10.1 lbs
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Relative Humidity (Operating) 10% to 90% non-condensing
Relative Humidity (Storage) 5% to 95% non-condensing
Cooling System Internal fans
Mounting Type Rack-mountable

Cloud Management & Licensing
Management Interface Web GUI, CLI, SSH, SNMP
Cloud Management Support Available via SonicWall Capture Security Center (CSC)
Licensing Options Subscription-based for services (e.g. Gateway Anti-Virus, Capture ATP, IPS)
Reporting and Analytics Included with Capture Security Center
