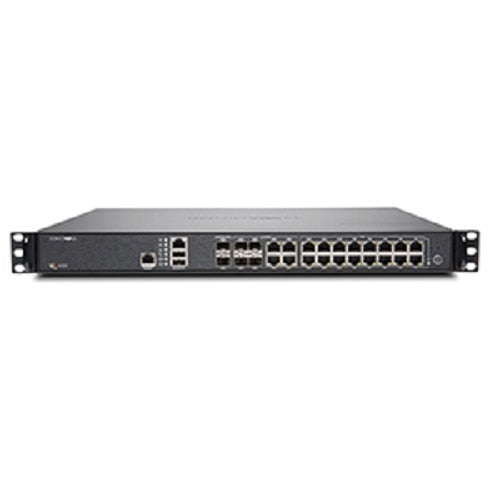

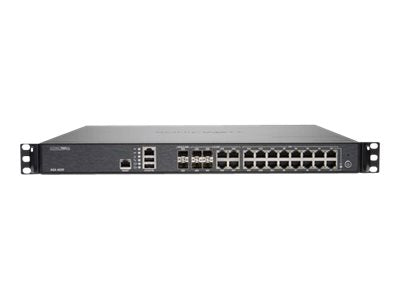

SONICWALL NSA 4650 Rackmount Security Appliance – 01-SSC-1938

VENDOR: SONICWALL Mfg Part#: 01-SSC-1938 UPC#: 758479019381
1 3
Photo is for illustration purposes only. Actual product may be different.
$4,876.24
$4,876.24
Sale Sold out
MSRP: $5,520.75
Shipping calculated at checkout.
  • Firewall throughput up to 6 Gbps and DPI throughput of 1.2 Gbps
  • Supports up to 3,000,000 SPI and 1,000,000 DPI connections
  • Interfaces include 2 x 10Gb SFP+, 4 x 2.5Gb (SFP & RJ-45), 16 x 1Gb RJ-45
  • Advanced threat features: DPI, IPS, anti-malware, SSL inspection
  • Mountable 1U rack form factor with optional power redundancy
  • Comprehensive VPN support: 4000 IPsec tunnels, 2000 connections, 2 SSL users

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-grade performance with 6 Gbps firewall and 3 Gbps VPN throughput, ideal for growing networks
  • Supports broad scalability with 3 million SPI connections and up to 128 wireless APs, future-proofing investments
  • Built for durability and uptime with 17.6-year MTBF and optional redundant power supplies

Product Overview

The SONICWALL NSA 4650 (part number 01-SSC-1938) is a robust, enterprise-grade network security appliance engineered to deliver comprehensive threat protection at high throughput levels. Housed in a 1U rackmountable chassis, it features multiple high-speed interfaces including 2 x 10Gb SFP+, 4 x 2.5Gb SFP and RJ-45 ports, and 16 x 1Gb RJ-45 ports. Running SonicOS 6.5.1, it supports a firewall throughput of up to 6 Gbps, deep packet inspection at 1.2 Gbps, and VPN throughput of 3 Gbps—ideal for securing high-bandwidth environments with demanding compliance requirements.

Designed with scalability in mind, the NSA 4650 provides extensive capacity including support for 3 million SPI connections, up to 4000 site-to-site VPN tunnels, and 128 managed wireless access points. Its advanced features include Deep Packet Inspection (DPI), Intrusion Prevention System (IPS), application control, anti-malware scanning, and SSL inspection. It supports redundant power supply and offers centralized management via SNMP, HTTP/HTTPS, and CLI protocols.

Operating between 32°F–104°F and consuming 93.6W, it is certified for TAA compliance and various global standards. With a Mean Time Between Failures (MTBF) of 17.6 years, the NSA 4650 is built for long-term reliability in mission-critical deployments.

Specifications

Product Overview
Type Security appliance
Form Factor Rack-mountable - 1U
Operating System SonicOS 6.5.1
Weight 15.21 lbs
Shipping Weight 24.91 lbs
Power Requirements AC 120/230 V (50/60 Hz)
Power Consumption 93.6 Watt
Power Provided 350 Watt
Redundant Power Supply Support Optional
Power Device Internal power supply
Installed Power Supply Units 1
Maximum Supported Power Supply Units 2
MTBF 17.6 years
Flash Memory 32 GB

Cloud Management & Licensing
Remote Management Protocols SNMP 2, SNMP 3, HTTP, HTTPS, CLI
Management Features Centralized management via SonicWall platform

Capacity
SPI Connections 3,000,000
DPI Connections 1,000,000
Max Site-to-Site VPN Tunnels 4,000
Max IPSec VPN Connections 2,000
Max SSL VPN Users 2
Max Access Points Supported 128
Max VLANs 400
Max SSO Users 60,000
Connections Per Second 40,000

Routing Protocols
Supported Routing Protocols OSPF, RIP-1/2, BGP, Static Routing, Policy-Based Routing (PBR)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Compliance Standards FCC Class A, UL, TUV GS, C-Tick, BSMI, cUL, CB, EMC, RoHS, WEEE, ANATEL, REACH, KCC Class A, LVD, VCCI Class A, MSIP Class A
IEEE Standards IEEE 802.3, IEEE 802.1p

Interfaces
10Gb SFP+ Ports 2
2.5Gb SFP Ports 4
2.5Gb RJ-45 Ports 4
1Gb RJ-45 Ports 16
1000Base-T Management Port 1
Console Port (RJ-45) 1
USB Ports 2 x USB Type A
Expansion Slots 1 (total) / 1 (free)
Connectivity Technology Wired
Data Link Protocols Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet

Advanced Security Features
Firewall Throughput 6 Gbps
DPI Throughput 1.2 Gbps
Application Throughput 3 Gbps
IPS Throughput 2.3 Gbps
Anti-malware Throughput 1.25 Gbps
SSL Inspection Throughput 500 Mbps
Features DPI, IPS, Anti-malware, Application control, Content filtering, Stateful Packet Inspection (SPI), NAT, Stateful Switchover (SSO), QoS, VPN support, Anti-spam, DoS/DDoS prevention
Authentication Methods RADIUS, XAUTH, Internal user database
Encryption Algorithms DES, 3DES, MD5, SHA-1, AES 128/192/256-bit

VoIP Support
VoIP Protocols SIP, H.323 v1-v5
IP Telephony Features VoIP gatekeeper support, VoIP outbound bandwidth management

Physical & Environmental
Dimensions (W x D x H) 16.9 in x 16.3 in x 1.8 in
Min Operating Temperature 32°F (0°C)
Max Operating Temperature 104°F (40°C)
Operating Humidity Range 10 - 90% (non-condensing)
