SonicWall NSA 6700 High Availability Firewall - 1U, 40 Gbps, 38 Ports

VENDOR: SONICWALL Mfg Part#: 02-SSC-8988 UPC#: 758479289883
1 3

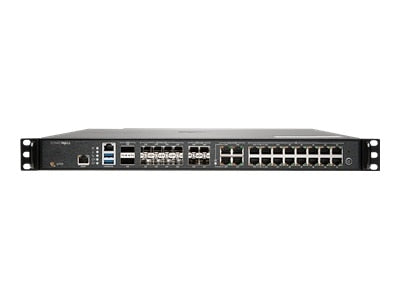

Photo is for illustration purposes only. Actual product may be different.
$14,684.10
$14,684.10
Sale Sold out
MSRP: $16,625.00
Shipping calculated at checkout.
  • 40 Gbps maximum data throughput for enterprise-level performance
  • 38-port configuration including multi-speed copper and fiber interfaces
  • Integrated 256 GB storage for system logging and reporting
  • IPS throughput of 20 Gbps and VPN IPSec throughput of 19 Gbps
  • Powered by SonicOS 7 operating system for advanced management
  • Redundant power supply support for high availability environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for high-performance security applications with 40 Gbps throughput and comprehensive port options.
  • Advanced management capabilities with SonicOS 7 and remote configuration support (SNMP, VLAN, DHCP).
  • Supports redundant power supplies and is TAA compliant, making it a reliable and compliant choice for critical infrastructure.

Product Overview

The SonicWall NSA 6700 High Availability firewall delivers advanced network security and robust throughput for demanding enterprise environments. Housed in a 1U rack-mount form factor, this appliance features up to 38 ports incorporating 1GbE (Cu), 25 GbE, 10/5/2.5/1 GbE SFP/SFP+, 40GbE QSFP+, USB 3.0, and dedicated console and management ports. With a data rate capacity of 40 Gbps and IPS throughput of 20 Gbps, it ensures scalable, secure performance for high-bandwidth applications and complex corporate infrastructures.

The NSA 6700 is powered by the SonicOS 7 operating system, delivering advanced VPN, networking, and management features. It supports SNMP, VLAN, and DHCP remote management protocols, and is TAA compliant, making it ideal for government and enterprise use. Integrated 256 GB storage facilitates logging and analytics, while redundant power supply support boosts operational reliability. With RoHS certification and manufacturing origin in Taiwan, the device demonstrates both environmental and compliance consciousness. The unit operates efficiently on 100–240 VAC, consuming a maximum of 139.2 watts for optimal balance between performance and energy use.

This firewall is purpose-built to address contemporary security needs, offering high IPSec and VPN throughput rates, along with versatile connectivity options. Whether deployed as a core network security node or as part of a high-availability solution, the NSA 6700 delivers consistent protection, management efficiency, and network performance.

Specifications

Product Overview
Product Type Firewall
Model NSA 6700
Manufacturer Part Number 02-SSC-8988
Form Factor 1U
Rack Height 1U
Operating System SonicOS 7
Connectivity Technology Wired
Data Transfer Rate 40 Gbps
VPN IPSec Throughput 19 Gbps
IPS Throughput 20 Gbps
Hard Drive Capacity 256 GB
Power Device Type Power Supply - Redundant
Max Power Consumption 139.2 Watt
Power Requirements 100-240 VAC, 50-60 Hz

Cloud Management & Licensing
Management Interface SonicOS Web UI, CLI, SSH
Remote Management Protocols SNMP, VLAN, DHCP
Centralized Management SonicWall Network Security Manager (NSM)
Licensing Options Available separately for threat protection, advanced security services
Cloud Services Capture Security Center integration

Physical & Environmental
Width 16.9 Inch
Depth 18.1 Inch
Height 1.8 Inch
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)

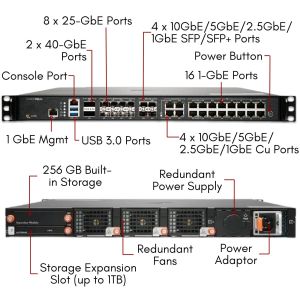

Interfaces
Network Ports Quantity 38
Interfaces 1GbE (Cu), 25 GbE, 10/5/2.5/1 GbE SFP/SFP+, 10/5/2.5/1 GbE Cu, 40GbE QSFP+, USB 3.0, Console, 1GbE Mgmt
USB Ports 1 x USB 3.0
Management Port 1 x 1GbE Mgmt
Console Port 1 x Console Port
Supported Transceivers SFP, SFP+, QSFP+
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet

Advanced Security Features
Firewall Type Stateful, Deep Packet Inspection
Intrusion Prevention System (IPS) Yes
VPN Support IPSec, SSL VPN
Content Filtering Yes, with licensing
Malware Protection Yes, with Capture ATP (subscription required)
Application Control Yes
Botnet Filtering Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications FCC Class A, CE, ICES, VCCI, C-Tick, UL, cUL, CB
