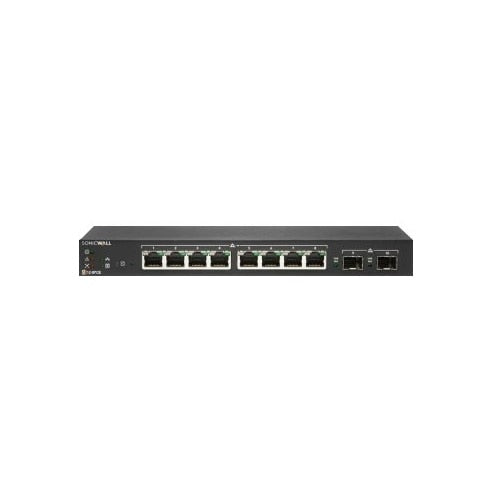

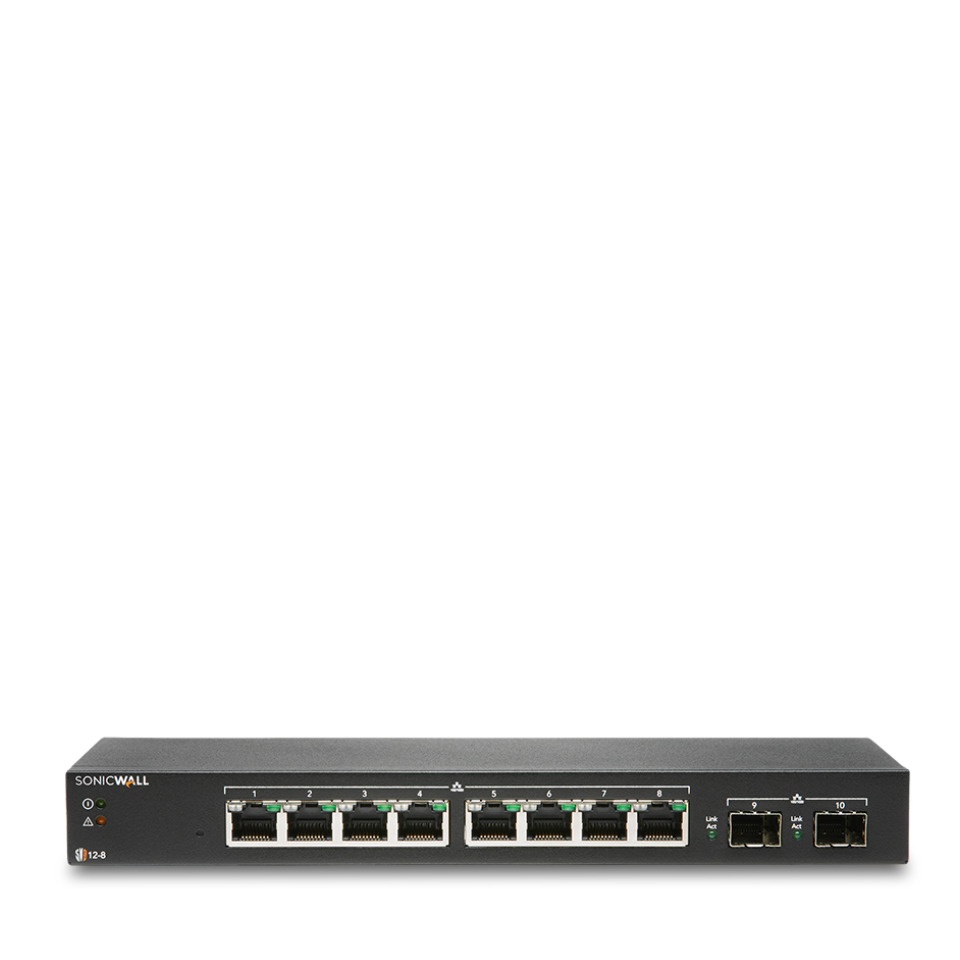

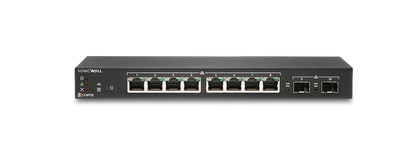

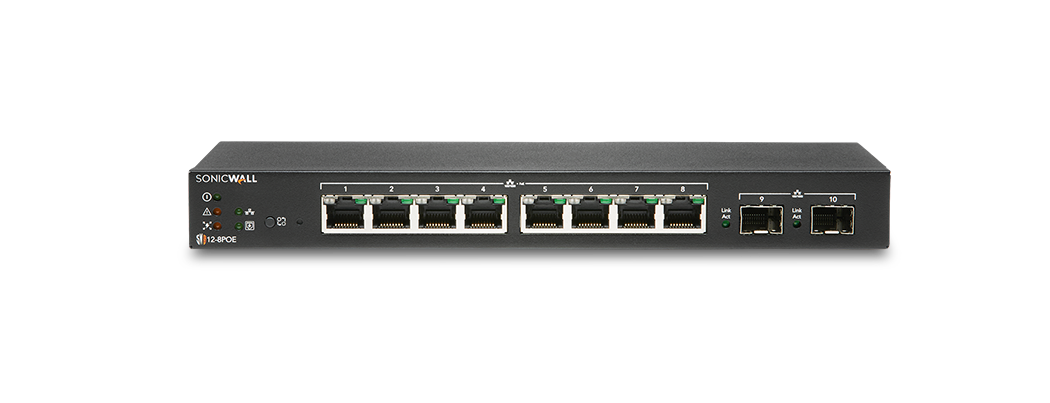

SONICWALL SWS12-8POE Desktop Gigabit PoE Switch, 10-Port

VENDOR: SONICWALL Mfg Part#: 02-SSC-2463 UPC#: 758479224631
1 3
Photo is for illustration purposes only. Actual product may be different.
$335.59
$335.59
Sale Sold out
MSRP: $379.95
Shipping calculated at checkout.
  • 10 total ports: 8 x RJ45 LAN (PoE) + 2 x SFP uplink
  • Supports 1 Gbps data transfer rate and Gigabit Ethernet protocol
  • Power over Ethernet with up to 55W consumption and 65W power capacity
  • Managed access via SNMP, CLI, and SSH; supports 802.1x authentication
  • 256MB RAM and 32MB flash memory for efficient traffic handling
  • MTBF of 548,553 hours and wide operating temperature range (0°C to 40°C)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers robust power and connectivity through 8 PoE ports and 2 SFP uplinks for enterprise-class flexibility
  • Compact, desktop form factor with high MTBF ensures long-term reliability in space-constrained environments
  • Complies with TAA and RoHS standards, making it suitable for government and regulated sector deployments

Product Overview

The SONICWALL SWS12-8POE is a reliable 10-port desktop Gigabit Ethernet switch designed to deliver high-performance, secure, and energy-efficient network connectivity for small business, retail, or branch offices. With 8 Power over Ethernet (PoE) enabled RJ45 LAN ports and 2 additional SFP uplink ports, it provides flexible deployment for Ethernet-powered devices such as VoIP phones, wireless access points, or IP cameras while supporting fiber backbone connections for extended reach.

Operating at a data rate of 1 Gbps and built on Layer 2 architecture, the switch supports key functionalities such as static routing, jumbo frame support, and SNMP-managed remote access via CLI, SSH, or 802.1x authentication. A generous 8K MAC address table, 256MB RAM, and 32MB flash memory ensure responsive performance for growing networks. Its rugged design, coupled with a 548,553-hour MTBF and temperature tolerance from 0° to 40°C, provides dependable uptime.

Certified for RoHS and TAA compliance, the SWS12-8POE is ideal for government, commercial, or industrial deployments. The unit operates on 54VDC with a power budget of 65 watts, accommodating up to 55W across connected PoE devices.

Specifications

Product Overview
Product Type Managed Gigabit Ethernet Switch
Model SWS12-8POE
Manufacturer Part Number 02-SSC-2463
Form Factor Desktop
Weight 0.64 kg
Power Requirements 54VDC
Power Adapter Type External
Max Power Consumption 63.2 Watt
Power Budget (PoE) 65 Watt
Usable PoE Power 55 Watt
Memory (RAM) 256 MB
Flash Memory 32 MB
MTBF 548,553 hours

Cloud Management & Licensing
Remote Management Protocols SNMP, SSH, CLI
Managed Yes
Authentication Method 802.1x
Routing Capabilities Static Routing

Compliance & Origin
Country of Origin Taiwan
RoHS Compliance Yes
TAA Compliance Yes

Interfaces
Total Ports 10
RJ45 Gigabit LAN Ports 8
SFP Uplink Ports 2
Port Type 10/100/1000Base-T Ethernet
Port Type (Uplink) SFP (Fiber)
PoE Support Yes (802.3af/at)
MAC Address Table Size 8K
Jumbo Frame Support Yes
Media Layer Supported Layer 2
Data Link Protocol Gigabit Ethernet
Data Transfer Rate 1 Gbps
Status Indicators LED (per port and system-level)

Physical & Environmental
Width 240 mm
Depth 105 mm
Height 27 mm
Min Operating Temperature 0°C
Max Operating Temperature 40°C
Min Storage Temperature -40°C
Max Storage Temperature 70°C
