SonicWall SWS14-48 53-Port Gigabit Switch with 1-Year WNM and Support

VENDOR: SONICWALL Mfg Part#: 02-SSC-8380 UPC#: 758479283805
1 3

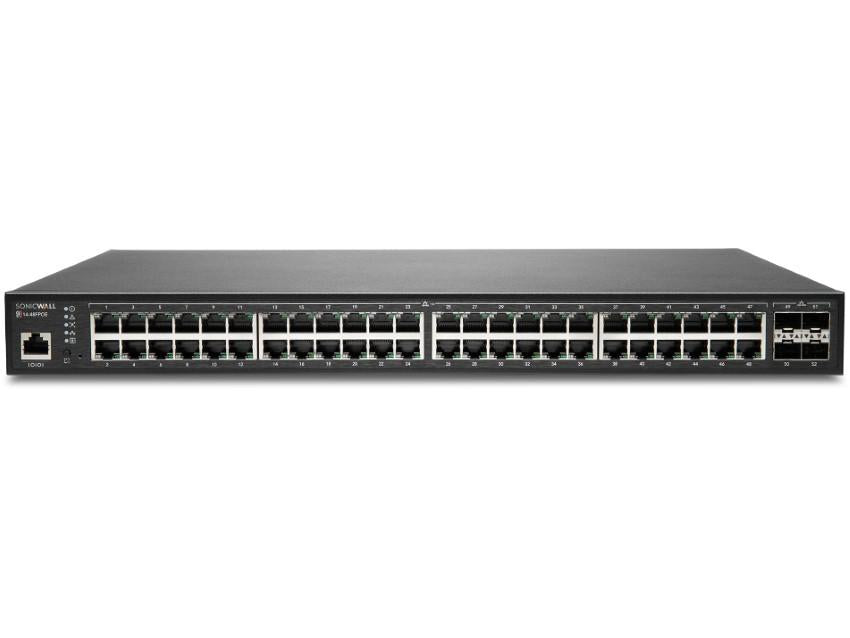

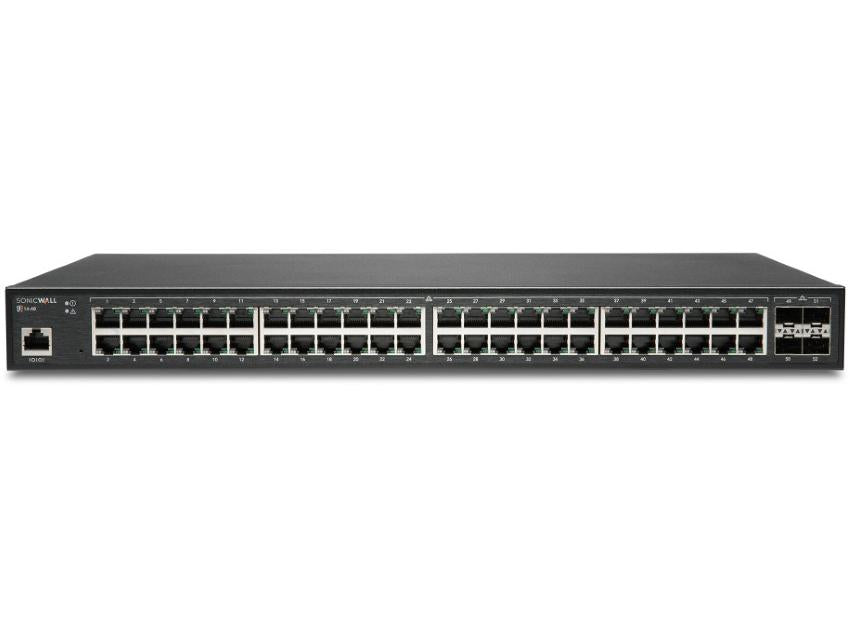

Photo is for illustration purposes only. Actual product may be different.
$1,028.95
$1,028.95
Sale Sold out
MSRP: $1,164.95
Shipping calculated at checkout.
  • 53 Gigabit Ethernet ports with 10 Gbps throughput
  • 4 x SFP+ uplink ports for high-speed connections
  • Static routing and VLAN support via Layer 2
  • Remote management through SNMP, Syslog, DHCP
  • 512MB RAM and 128MB Flash for configuration storage
  • SD-Branch ready with StandAlone UI and CLI support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Bundled with 1-year Wireless Network Management and support, reducing total cost of ownership and simplifying deployment.
  • SD-Branch ready and static routing features support scalable, secure enterprise networking across locations.
  • High port density and 10 Gbps throughput cater to high-traffic environments, offering investment protection.

Product Overview

The SonicWall SWS14-48 is a powerful 53-port Layer 2 Gigabit Ethernet switch designed for enterprise-grade networking infrastructure. With support for 10 Gbps data transfer rates, this 1U device delivers robust connectivity across RJ45 and SFP+ interfaces, including four dedicated SFP+ ports. Compact and efficient, it enables rack-mounted deployment in dense IT environments.

This switch offers advanced capabilities such as static routing, SNMP, Syslog, and DHCP remote management, and jumbo frame support. SD-Branch readiness improves segmentation and enforcement, while the inclusion of 512MB RAM and 128MB Flash ensures performance and configuration reliability. It also features backup and restore abilities and supports WNM and CLI-based management.

Bundled with 1 year of Wireless Network Management Essential and support, the SWS14-48 offers centralized operation for organizations scaling across multiple sites. With TAA compliance, a high MTBF of over 222,000 hours, and wide environmental tolerance, it delivers reliable performance for mission-critical deployments.

Specifications

Product Overview
Type Switch
Form Factor 1U
Weight 3.2 Kg
Power Requirements 100-240 VAC
Power Supply Type Internal Power Supply
Maximum Power Consumption 44 Watt
Power Provided 60 Watt
Memory (RAM) 512 MB
Flash Memory 128 MB
Data Transfer Rate 10 Gbps
Management Features Firewall, WNM, StandAlone UI, and CLI management. SNMP monitoring. Backup and restore Switch configurations.

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Compliance Standards IEEE 802.1x, IEEE 802.1p
MTBF 222974 hours

Advanced Security Features
Security Features Firewall integration, segmentation and enforcement features

Interfaces
Interface Types RJ45, SFP+
Total Ports 53
SFP+ Ports 4
Port Type Gigabit Ethernet
MAC Address Table Size 32k
Jumbo Frame Support Yes
Media Layer Supported Layer 2
Routing Protocol Static routing

Physical & Environmental
Width 440 mm
Depth 260 mm
Height 44 mm
Minimum Operating Temperature 0 °C
Maximum Operating Temperature 40 °C
Minimum Storage Temperature -40 °C
Maximum Storage Temperature 70 °C

Cloud Management & Licensing
Management Interface CLI, Web UI, SNMP, WNM
Remote Management Protocols SNMP, Syslog, DHCP
Included Licensing Wireless Network Management Essential and Support 1 Year
SD-Branch Ready Yes
