SONICWALL TZ570 Secure Upgrade Plus Advanced Edition 3YR

VENDOR: SONICWALL Mfg Part#: 02-SSC-5687 UPC#: 758479256878
1 3
Photo is for illustration purposes only. Actual product may be different.
$4,182.30
$4,182.30
Sale Sold out
MSRP: $4,735.10
Shipping calculated at checkout.
  • Firewall form factor with desktop configuration
  • 8x1GbE and 2x5G SFP+ interfaces for high-speed connectivity
  • 2.5 Gbps Intrusion Prevention System throughput
  • 1.8 Gbps IPSec VPN throughput for secure remote access
  • Powered by SonicOS 7 operating system
  • TAA-compliant design with 13.4W max power consumption

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-performance security with 2.5 Gbps IPS and 1.8 Gbps VPN throughput for optimal threat prevention.
  • Highly versatile connectivity options including 8x1GbE, 2x5G SFP+, and USB 3.0 ports support scalable configurations.
  • Comes with a 3-year Secure Upgrade Plus subscription, bundling advanced protection services into one purchase.

Product Overview

The SONICWALL TZ570 Secure Upgrade Plus Advanced Edition 3YR is a desktop firewall delivering scalable network protection for SMB environments. It supports 14 ports including 8x1GbE and 2x5G SFP+, allowing extensive connectivity. Powered by SonicOS 7, it integrates advanced security features across VPN, IPS, and network traffic control. The device offers up to 2.5 Gbps IPS throughput and 1.8 Gbps VPN throughput, protected by robust encryption standards including AES, DES, and 3DES. Energy-efficient and compact, it's TAA compliant and supports a wide range of networking protocols, ensuring seamless deployment in professional environments.

Specifications

Product Overview
Product Type Firewall
Model TZ570
Form Factor Desktop
Operating System SonicOS 7
Power / Device Type Power Supply
Max Power Consumption 13.4 Watt
Power / Voltage Required 100-240 VAC, 50-60Hz
Connectivity Technology Wired
Networking Type Ethernet
Service & Support Type SECURE UPGRADE PLUS - ADVANCED EDITION 3YR

Remote & Cloud Management
Remote Management Protocol - SNMP Supported
Remote Management Protocol - SSH Supported
Remote Management Protocol - DHCP Supported

Cloud Management & Licensing
Cloud Management Interface SonicWall Capture Security Center
Licensing Type Secure Upgrade Plus – Advanced Edition
License Duration 3 Years
Cloud-Based Threat Intelligence Capture ATP, Real-Time Deep Memory Inspection (RTDMI)

Compliance & Origin
Country of Origin TAIWAN
TAA Compliance Yes
Certifications FCC Class A, ICES-003, CE, UL, cUL, RoHS, VCCI Class A, BSMI

Interfaces
Networking / Ports Qty 14

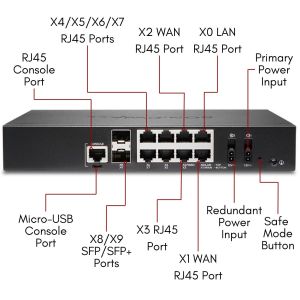

Interfaces 8x1GbE, 2x5G SFP+, 2 USB 3.0, 1 Console, Micro-USB Console Port
Data Transfer Rate 5 Gbps
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet

Advanced Security Features
VPN IPSec Throughput 1.8 Gbps
IPS Throughput 2.5 Gbps
VPN Support Site-to-Site, Client VPN
Content Filtering Yes (via licensing)
Malware Protection Yes (Capture ATP)
Intrusion Prevention System (IPS) Yes
Firewall Inspection Throughput 4.0 Gbps
Threat Prevention Throughput 2.0 Gbps
Maximum Connections 1,500,000
SPI Connections per Second 27,000
VPN Tunnels Supported 1,500
SSL VPN Users (Max) 500
Encryption Algorithms Supported AES, DES, 3DES

Physical & Environmental
Width 5.91 Inch
Depth 8.85 Inch
Height 1.38 Inch
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
