SonicWall TZ570 Secure Upgrade Plus Essential Edition 3YR

VENDOR: SONICWALL Mfg Part#: 02-SSC-5661 UPC#: 758479256618
1 3

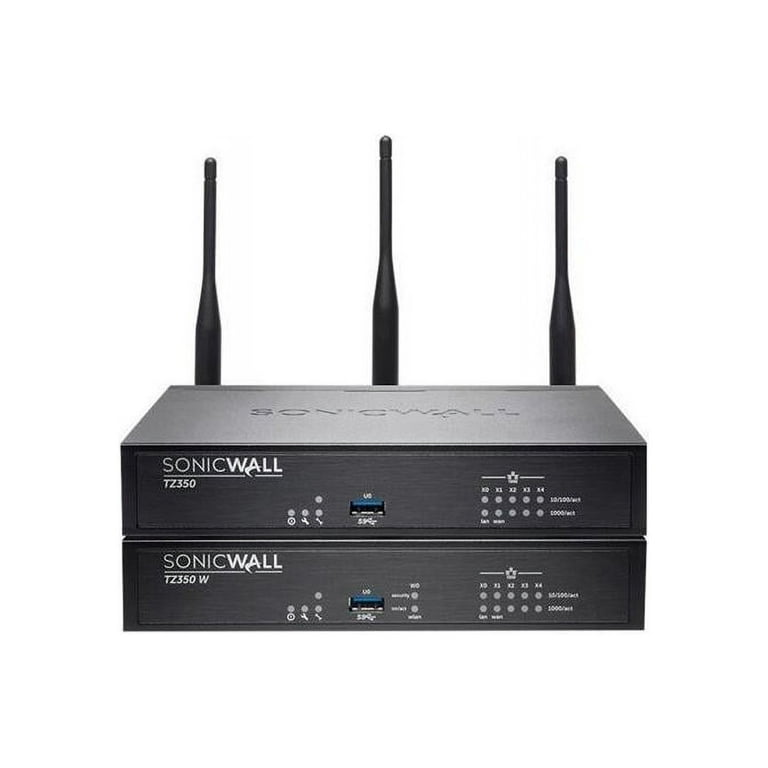

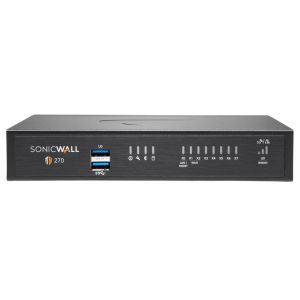

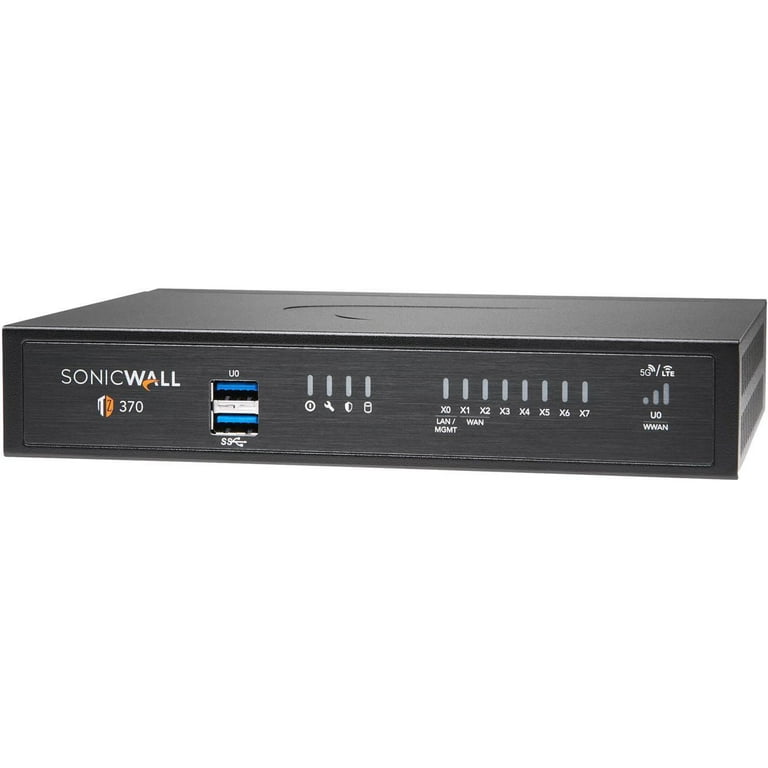

Photo is for illustration purposes only. Actual product may be different.
$3,634.06
$3,634.06
Sale Sold out
MSRP: $4,114.40
Shipping calculated at checkout.
  • Firewall appliance with desktop form factor and SonicOS 7 operating system
  • Supports 5 Gbps data transfer and 2.5 Gbps IPS throughput
  • Includes 8x1GbE, 2x5G SFP+, USB 3.0, and console ports
  • VPN IPSec throughput of 1.8 Gbps and multiple encryption standards (AES, DES, 3DES)
  • TAA compliant with remote management via SSH, SNMP, DHCP
  • Includes 3-year Secure Upgrade Plus Essential subscription

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Comprehensive port configuration with 14 ports including multi-gig (5G) and USB ensures network scalability and flexibility
  • High IPS and VPN throughput support next-generation firewall performance for secure enterprise operations
  • 3-year Essential Edition license delivers ongoing security updates and threat prevention at no extra cost

Product Overview

The SONICWALL TZ570 Secure Upgrade Plus Essential Edition 3YR is a powerful desktop firewall appliance built to protect small-to-medium businesses with robust and scalable security features. The device runs on SonicOS 7 and supports high-performance networking with a data transfer rate of up to 5 Gbps. It includes 14 total ports, comprising 8x1GbE, 2x5G SFP+, 2 USB 3.0, a console port, and micro-USB console—a flexible port layout that accommodates diverse network setups.

Security and throughput are key strengths, featuring 2.5 Gbps IPS throughput and 1.8 Gbps IPSec VPN throughput. The firewall supports protocols such as TCP/IP, UDP, HTTP, HTTPS, and VPN standards like ISAKMP/IKE, L2TP, and PPTP. With advanced encryption standards (DES, 3DES, AES 128/192/256-bit) and TAA compliance, the device offers end-to-end enterprise-grade network protection. The unit also includes a 3-year Secure Upgrade Plus Essential subscription for threat intelligence and real-time security updates.

With remote management through SSH, SNMP, and DHCP, and low power draw of 13.4 watts, it’s designed for efficient and scalable deployment. Compact and globally compatible, the TZ570 is an optimal choice for businesses seeking high performance, centralized control, and multi-layered security in a single device.

Specifications

Product Overview
Product Type Firewall
Model TZ570
Form Factor Desktop
Operating System SonicOS 7
Networking Type Ethernet
Connectivity Technology Wired
Max Power Consumption 13.4 Watt
Power / Voltage Required 100-240 VAC, 50-60Hz
Power / Device Type Power Supply

Physical & Environmental
Width 5.91 Inch
Depth 8.85 Inch
Height 1.38 Inch
Weight 1.6 lbs
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing

Cloud Management & Licensing
Service & Support Type SECURE UPGRADE PLUS - ESSENTIAL EDITION 3YR
Management Protocols SSH, SNMP, DHCP
Cloud Management Platform SonicWall Capture Security Center (CSC)
Included Cloud Features Firmware updates, cloud-based reporting, centralized management
License Duration 3 Years

Interfaces
Networking / Ports Qty 14
Interfaces 8x1GbE, 2x5G SFP+, 2 USB 3.0, 1 Console, Micro-USB Console Port
Data Transfer Rate 5 Gbps
VPN IPSec Throughput 1.8 Gbps
IPS Throughput 2.5 Gbps
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet

Compliance & Origin
TAA compliance Yes
Country of Origin TAIWAN
Certifications FCC Class A, CE, ICES, VCCI, C-Tick, BSMI, UL, cUL, CB

Advanced Security Features
Firewall Inspection Throughput 4 Gbps
Threat Prevention Throughput 2.5 Gbps
VPN Throughput 1.8 Gbps
Concurrent SPI Connections 1,500,000
New Connections/Sec 25,000
Firewall Type Stateful Packet Inspection with Deep Packet Inspection
Content Filtering Yes (through Content Filtering Service - CFS)
Gateway Anti-virus Yes
Intrusion Prevention System (IPS) Yes
Application Control Yes
Botnet Protection Yes
Malware Protection Yes
Encryption Protocols DES, 3DES, AES 128/192/256-bit
VPN Support IPSec, SSL, L2TP, PPTP, ISAKMP/IKE
