Products Network Stuff SONICWALL TZ570P Network Se...

SONICWALL TZ570P Network Security Appliance, 5Gbps, 14-Port, TAA Compliant

VENDOR: SONICWALL Mfg Part#: 02-SSC-2841 UPC#: 758479228417
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,456.49
$1,456.49
Sale Sold out
MSRP: $1,649.00
Shipping calculated at checkout.
  • 5 Gbps data transfer rate for high-performance throughput
  • 8x1GbE and 2x5G SFP+ ports for versatile connectivity
  • Integrated SonicOS 7 with SD-WAN and Zero-Touch Deployment
  • TAA compliant and manufactured in Taiwan
  • Remote management enabled via SNMP, SSH, and DHCP
  • Supports IPS throughput up to 2.5 Gbps and VPN IPSec throughput of 1.8 Gbps

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers security and performance with 5 Gbps throughput and 14 total ports, ideal for expanding networks
  • Advanced threat protection capabilities with SonicOS 7, including Deep Memory Inspection and SD-WAN support
  • Complies with TAA standards and provides global deployment readiness with wide-range power input compatibility

Product Overview

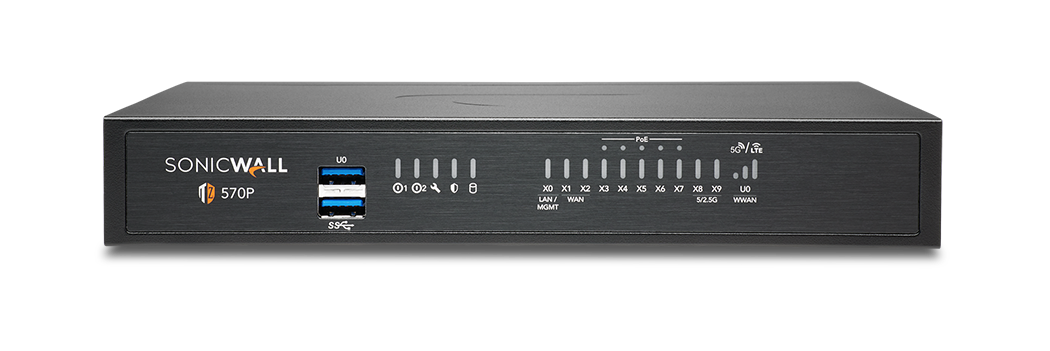

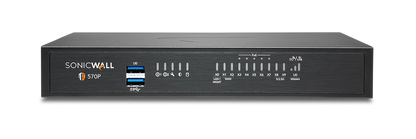

The SONICWALL TZ570P is a powerful, desktop-form-factor firewall built to meet the increasing demands of secure, high-performance network environments. Featuring 8x1GbE ports, 2x5G SFP+ uplinks, and USB 3.0 interfaces, this appliance supports robust wired networking and advanced perimeter protection. Operating on SonicOS 7, it incorporates features like Zero-Touch Deployment and single-pane-of-glass management, streamlining complex network configurations while reducing administrative overhead.

With a total of 14 ports and a data transfer rate of up to 5 Gbps, the TZ570P delivers fast, reliable traffic flow to accommodate the data-centric needs of modern organizations. The inclusion of IPS throughput rated at 2.5 Gbps and VPN IPSec support at 1.8 Gbps ensures deep-layered security protocols without sacrificing performance. Additionally, the TZ570P supports SNMP, SSH, and DHCP for remote management, offering flexible integration into existing infrastructures. TAA-compliant and manufactured in Taiwan, this unit is well-suited for government and enterprise environments where compliance and reliability are essential.

Efficient power consumption at a maximum of 108.75 watts and support for wide-range AC input (100-240 VAC) make it practical for global deployment. Whether deploying SD-WAN capabilities or conducting high-resolution traffic inspection, the SONICWALL TZ570P serves as a scalable security solution delivering excellent return on investment.

Specifications

Product Overview
Product Type Firewall
Model TZ570P
Form Factor Desktop
Connectivity Technology Wired
Networking Type Ethernet
Operating System SonicOS 7
Data Transfer Rate 5 Gbps
VPN IPSec Throughput 1.8 Gbps
IPS Throughput 2.5 Gbps
Max Power Consumption 108.75 Watt
Power / Voltage Required 100-240 VAC, 50-60Hz
Power / Device Type Power Supply

Wireless Features
Wi‑Fi Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliance Yes
Certifications FCC Class A, ICES Class A, CE, RCM, VCCI Class A, UL, cUL, TUV/GS
RoHS Compliance Yes

Advanced Security Features
Firewall Type Stateful Inspection Firewall
Intrusion Prevention System (IPS) Yes
Application Control Yes
Content Filtering Available with License
Malware Protection Available with Capture ATP Subscription
SSL Inspection Yes
Deep Packet Inspection Yes
Botnet Filtering Yes

Interfaces
Networking / Ports Qty 14
Interfaces 8x1GbE, 2x5G SFP+, 2 USB 3.0, 1 Console, Micro-USB Console Port
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet

Physical & Environmental
Width 5.91 Inch
Depth 8.85 Inch
Height 1.38 Inch
Weight 3.52 lbs
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature -40° to 158°F (-40° to 70°C)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Cooling Fanless

Cloud Management & Licensing
Management Interface SonicWall Cloud Management, Web UI, CLI
Zero-Touch Deployment Supported
Included Licensing Base License only, includes Stateful Firewall, VPN
Optional Licensing Advanced Threat Protection, Capture ATP, Content Filtering, IPS, Anti-Malware
