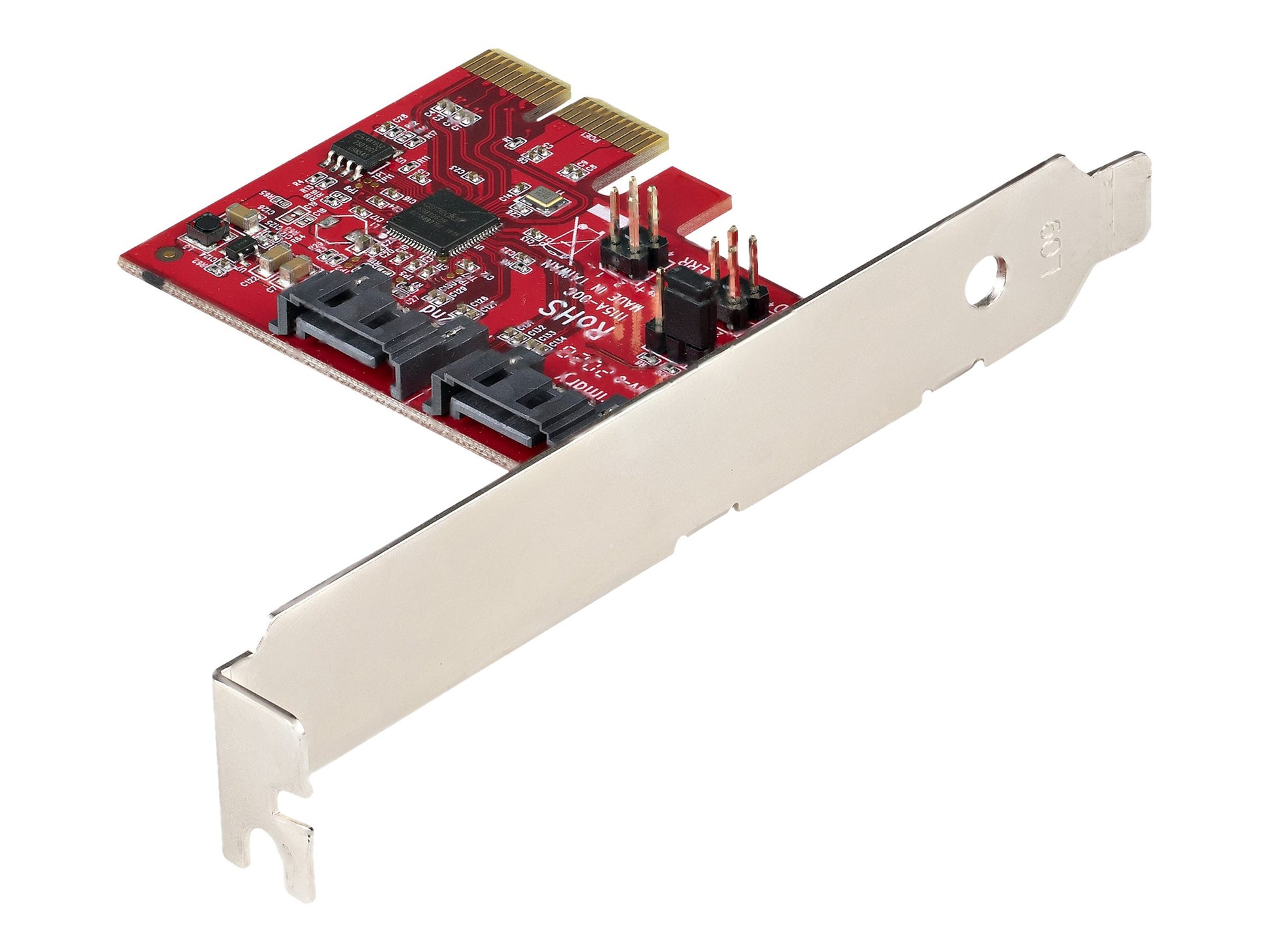

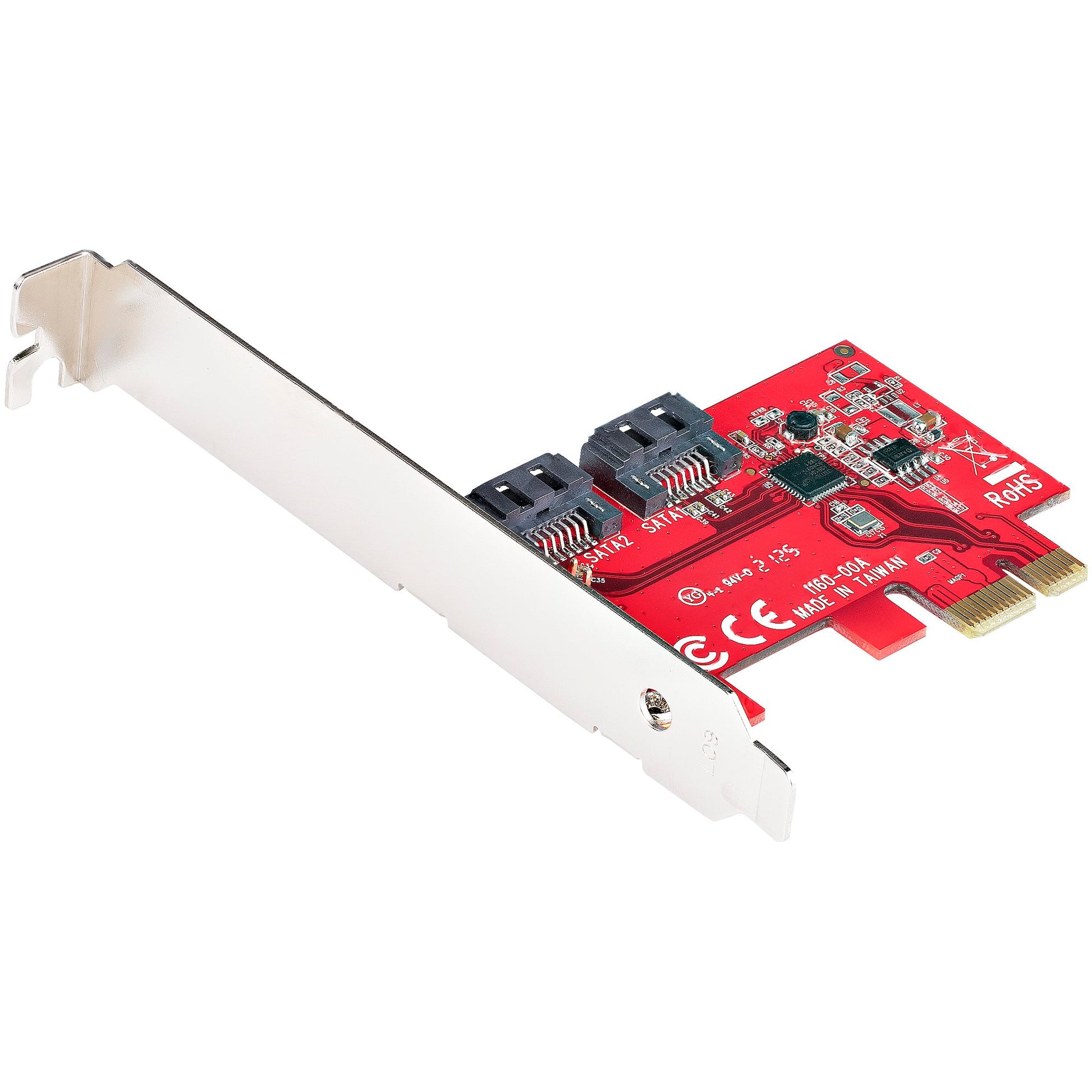

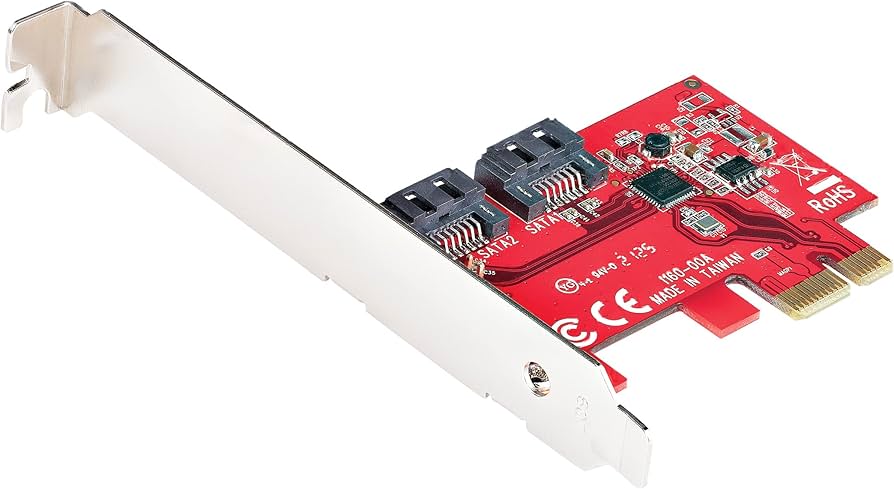

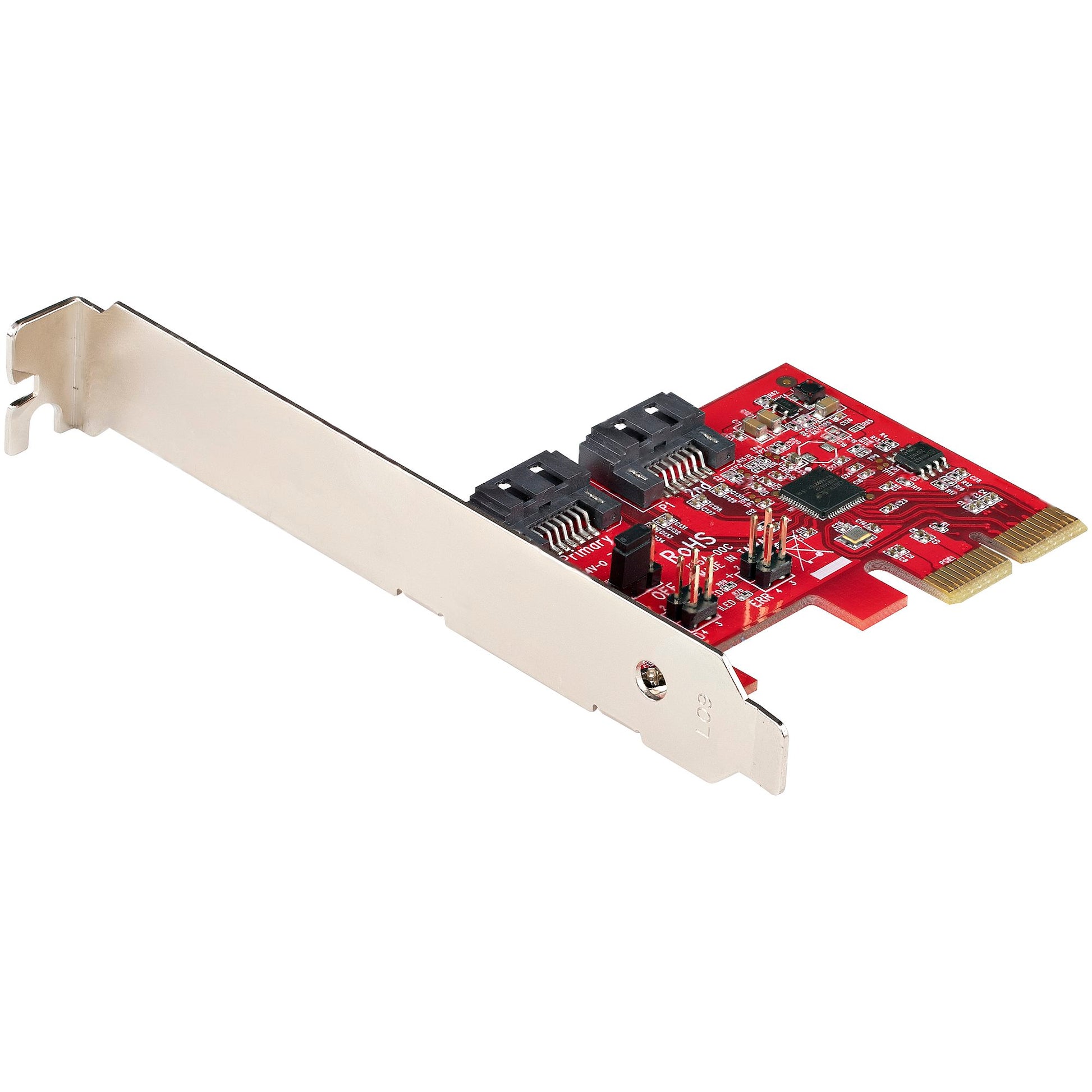

StarTech 2-Port SATA III 6Gbps PCIe 2.0 Expansion Card

VENDOR: STARTECH Mfg Part#: 2P6G-PCIE-SATA-CARD UPC#: 065030895545
1 5
Photo is for illustration purposes only. Actual product may be different.
$32.34
$32.34
Sale Sold out
MSRP: $39.99
Shipping calculated at checkout.
  • Supports SATA III with up to 6Gbps per port
  • PCI Express 2.0 x1 interface for high-speed connectivity
  • Compatible with SATA 3.2 and AHCI 1.4 standards
  • Dual internal 7-pin SATA data ports included
  • TAA-compliant for government and enterprise use
  • Lifetime manufacturer support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Offers high-throughput storage expansion with two 6Gbps SATA ports for demanding applications
  • Universal OS compatibility across Windows, macOS, and Linux ensures flexible deployment
  • TAA compliance and lifetime support make it a secure fit for long-term commercial and institutional use

Product Overview

SATA III 6Gbps PCIe 2.0 x1 card - SATA expansion adapter card - 2-Port SATA to PCIe Card w/ASM1061 controller for 4Gbps combined max - PCI Express 2.0/SATA 3.2/AHCI 1.4 - ATA/ATAPI for HDD/SSD/ODD support - Windows/macOS/Linux - Full/low-profile

Specifications

Product Overview
Product Type PCIe SATA Expansion Card
Form Factor Full-Height and Low-Profile
Chipset ASMedia ASM1061
Interface Bus Type PCI Express 2.0 x1
Drive Interface SATA III (6 Gbps)
Number of Ports 2 SATA Ports
RAID Support No (Non-RAID)
Compatible Drive Types HDD, SSD, ODD
Max Combined Throughput Up to 4 Gbps
Supported Protocols SATA 3.2, ATA/ATAPI, AHCI 1.4
Power Requirements Powered through PCIe slot

Physical & Environmental
Width 0.7 in (18 mm)
Depth 2.7 in (69 mm)
Height 4.8 in (122 mm)
Product Weight 48 g (0.1 lb)
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Humidity Range 20% to 80% RH (Non-Condensing)
Included Brackets Full-Height and Low-Profile

Cloud Management & Licensing
Management Interface Not Applicable
Licensing Requirements None

Interfaces
Host Interface PCI Express 2.0 x1
Internal Connectors 2 x SATA (7-pin, Data)
External Connectors None
Data Transfer Rate Per Port Up to 6 Gbps
Total Bandwidth Up to 4 Gbps

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
RoHS Compliant Yes
Certifications CE, FCC

Advanced Security Features
Hardware Encryption No
Integrated Firewall No
Malware Protection No
