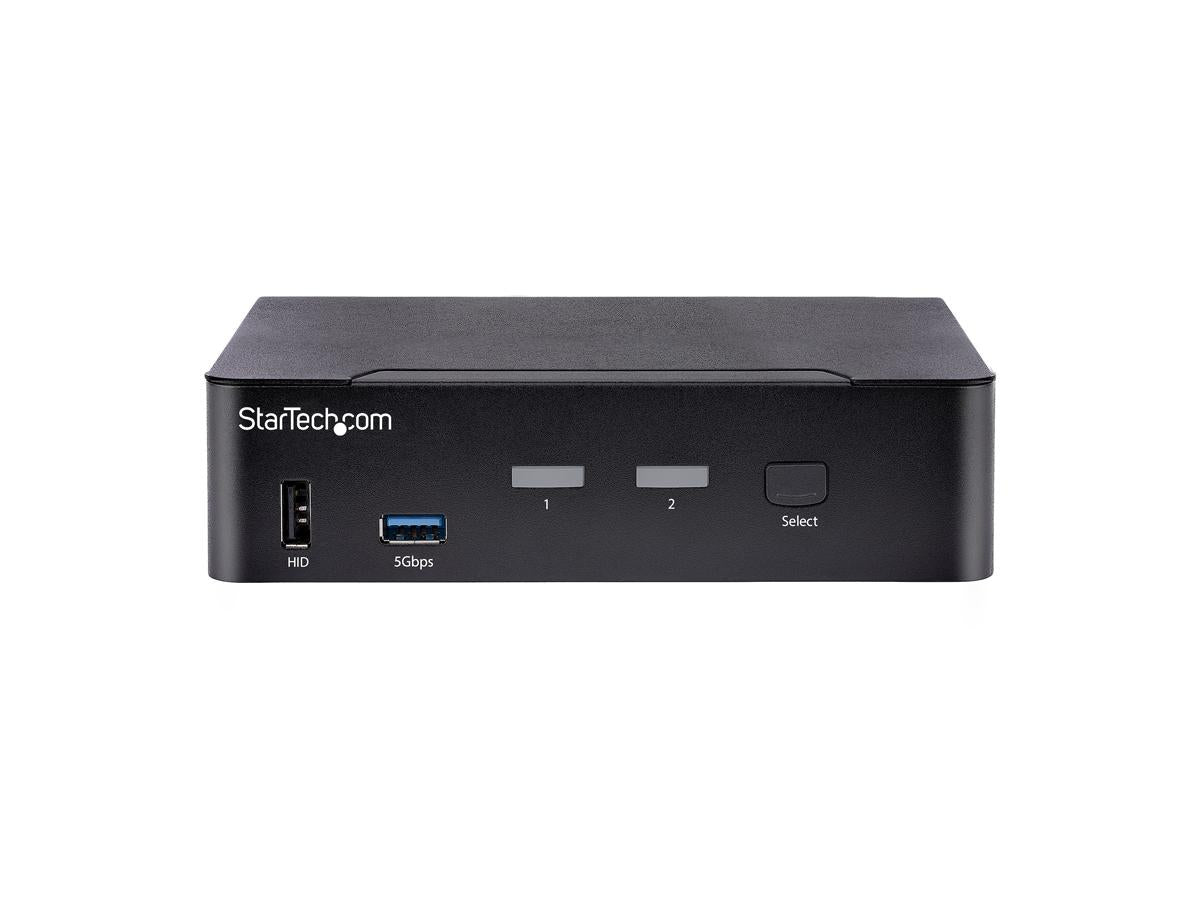

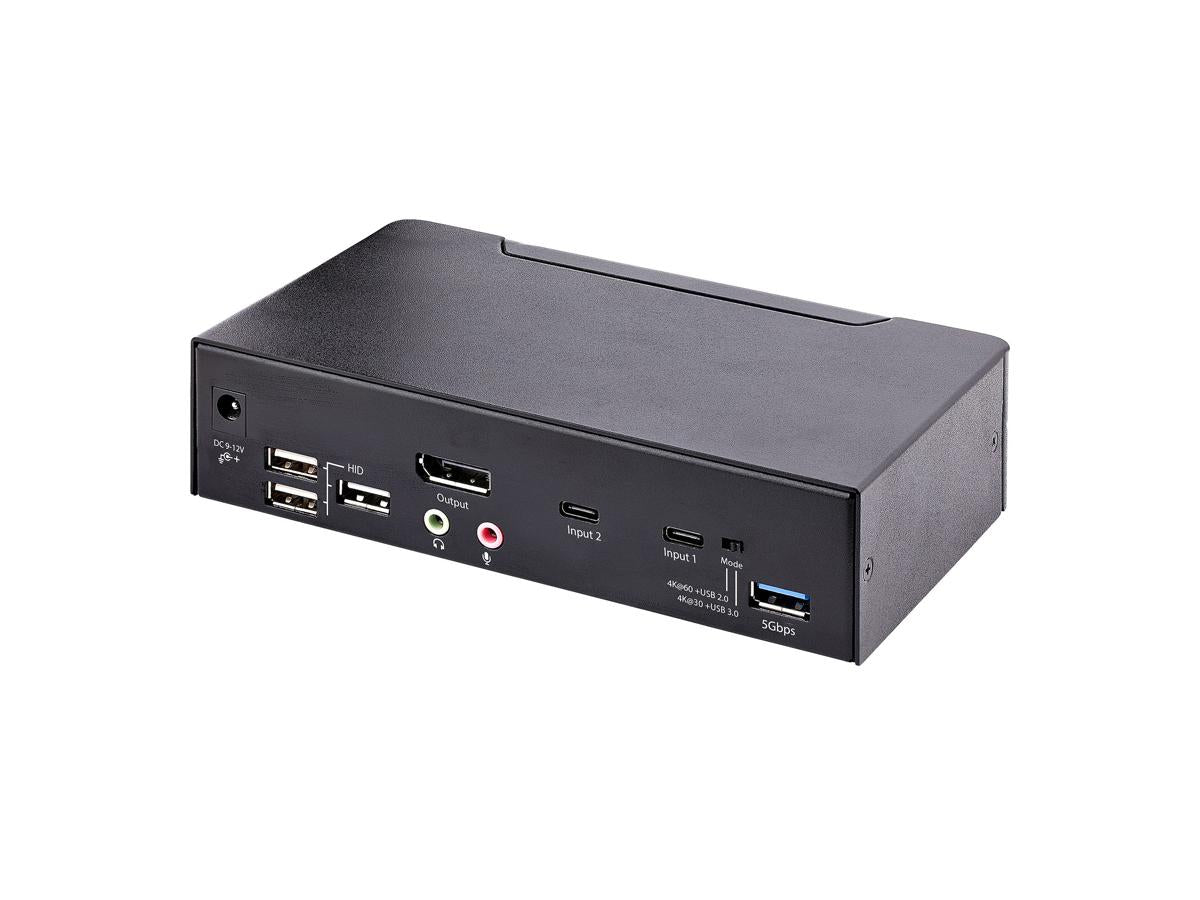

StarTech 2-Port USB-C DisplayPort KVM Switch with 4K, Audio & USB Hub

VENDOR: STARTECH Mfg Part#: SV231DPUCA UPC#: 065030872201
1 5

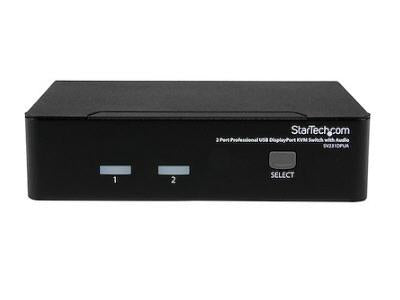

Photo is for illustration purposes only. Actual product may be different.
$304.70
$304.70
Sale Sold out
MSRP: $306.99
Shipping calculated at checkout.
  • 2x USB-C host ports supporting DisplayPort video connections
  • Supports 4K 60Hz UHD resolution with 4:4:4 chroma and HDR
  • Includes 4 USB HID ports and 2 USB-A 5Gbps hub ports
  • 3.5mm audio support and hotkey/push-button switching
  • TAA compliant and manufactured in Taiwan
  • Compact black enclosure (5.5" x 6.3" x 1.6") with 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports 4K 60Hz UHD video with HDR for sharp and vibrant visuals in demanding work environments.
  • Integrated USB-A hub with 5Gbps data rate enhances workstation flexibility and peripheral access.
  • Hotkey/push-button switching and OS independence streamline multi-system control in professional settings.

Product Overview

This 2 Port USB C KVM switches two computers with a DisplayPort monitor using USB-C host connections; Up to 4K 60Hz (4:4:4) with 2x USB-A 480Mbps Hub Ports - 3.5mm Audio; Hotkey/Push Button Switching; Works with TB3/TB4; OS Independent; TAA Compliant

Specifications

Product Overview
Product Type KVM Switch
Form Factor Desktop
Number of Computers Supported 2
Number of Monitors Supported 1
Supported Resolutions Up to 3840 x 2160 (4K) @ 60Hz (4:4:4)
HDR Support Yes
Audio Support Yes, 3.5 mm Stereo Audio
Hotkey Switching Yes
Push Button Switching Yes
Thunderbolt Compatibility Thunderbolt 3 & 4 Compatible
OS Compatibility OS Independent
Power Source DC Power Adapter (Included)
Input Voltage 100 - 240V AC
Output Voltage 5V DC
Power Consumption (Max) 15W

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS
Warranty 2 Years

Advanced Security Features
Data Isolation Between Channels Yes, via KVM Switching
Secure Switching Method Hotkey and Push Button

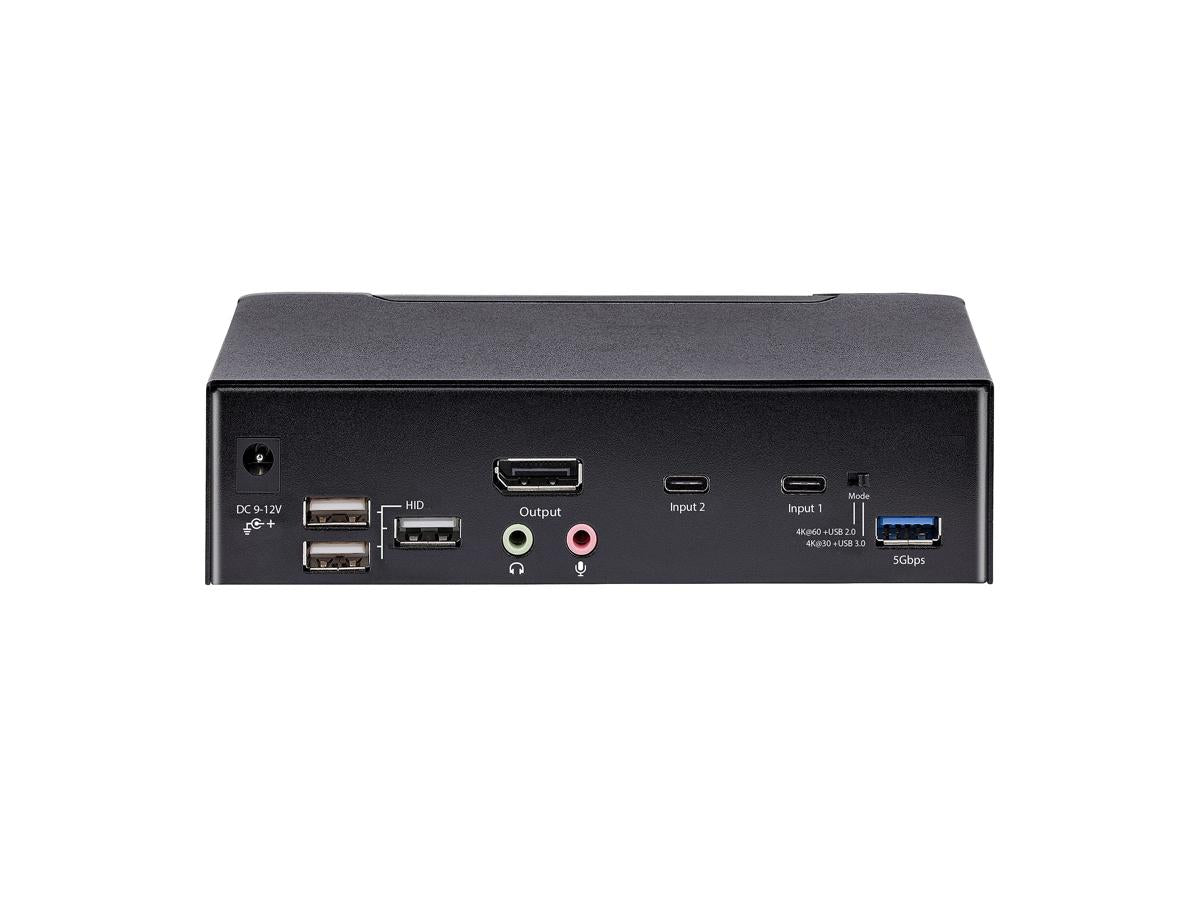

Interfaces
Computer Ports 2 x USB-C (DP Alt Mode)
Console Video Port 1 x DisplayPort 1.2 (Female)
Console USB Ports 2 x USB-A (Keyboard/Mouse)
Hub USB Ports 2 x USB-A (USB 2.0, 480 Mbps)
Audio Ports 2 x 3.5mm Audio (Mic & Headphones)
USB Hub Ports 2 x USB-A (USB 3.0, 5 Gbps)
Total USB Ports 6
KVM Console Ports 1 x DisplayPort, 2 x USB-A, 2 x 3.5mm Audio

Physical & Environmental
Width 5.5 in (140 mm)
Depth 6.3 in (160 mm)
Height 1.6 in (40 mm)
Weight 1.62 lb (735 g)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 60°C (14°F to 140°F)
Humidity (Operating) 10% to 90% RH (non-condensing)
Product Color Black
Enclosure Type Steel

Cloud Management & Licensing
Managed via Cloud No
License Required No
